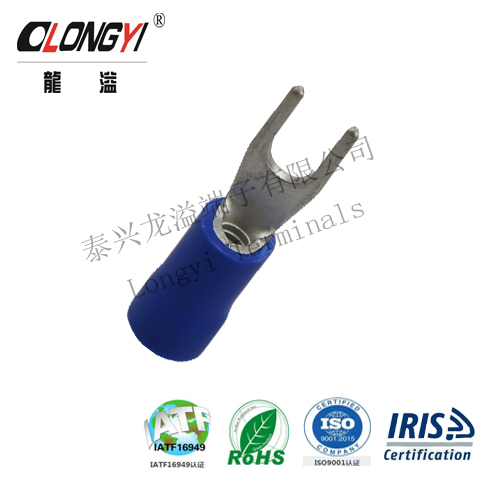

Insulated Fork Spade Terminals
These insulated spade terminals connect copper conductors to power cables within electronic equipment. They are made of 99.99% pure copper tube T2 and feature tin-plated surfaces with PVC or nylon insulation.
Technical Specifications
Product Overview
High-Performance Insulated Spade Terminals
These insulated spade terminals are designed for secure and efficient electrical connections in power cables and electronic equipment. Constructed from high-purity copper with a durable tin-plated surface, they offer excellent conductivity and corrosion resistance. The spade-shaped design allows for quick installation under screw heads without needing to fully remove fasteners, making them ideal for automotive, industrial, and household wiring applications.
Technical Specifications
Wire Range (AWG)
- 22-16 AWG
- 16-14 AWG
- 12-10 AWG
- 8 AWG
- Material
- 99.99% Pure Copper (T2.3)
- Insulation Material
- PVCNylon
- Surface Finish
- Tin-plated
- Operating Temperature
- -55°C to 150°C
- Wire Cross-Section Range
- 0.25 - 10.52 mm²
Compliance & Standards
Certifications
CEULRoHSISO 9001:2015IATF16949
- Supported Standards
- JISDINAWG
Dimensions Table
Standard Dimensions (mm)

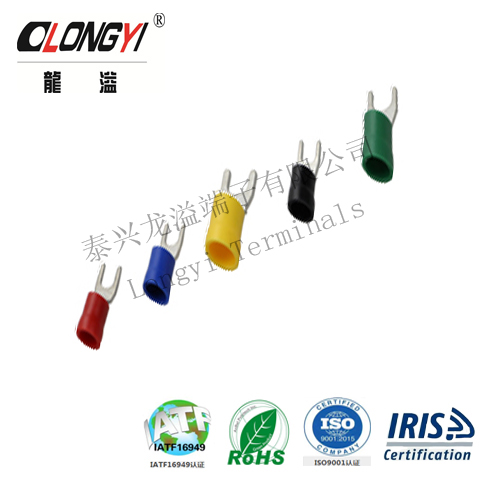

| Item No | AWG | Color | L (Length) |
|---|---|---|---|
| VF1.25 Series | 22-16 | Red | 21.8 |
| VF2 Series | 16-14 | Blue | 21.8 |
| VF3.5 Series | 12-10 | Yellow | 24.8 |
| VF5.5 Series | 12-10 | Yellow | 26.5 |
| VF8 Series | 8 | Red | 29.5 |
