Technical Specifications
Overview

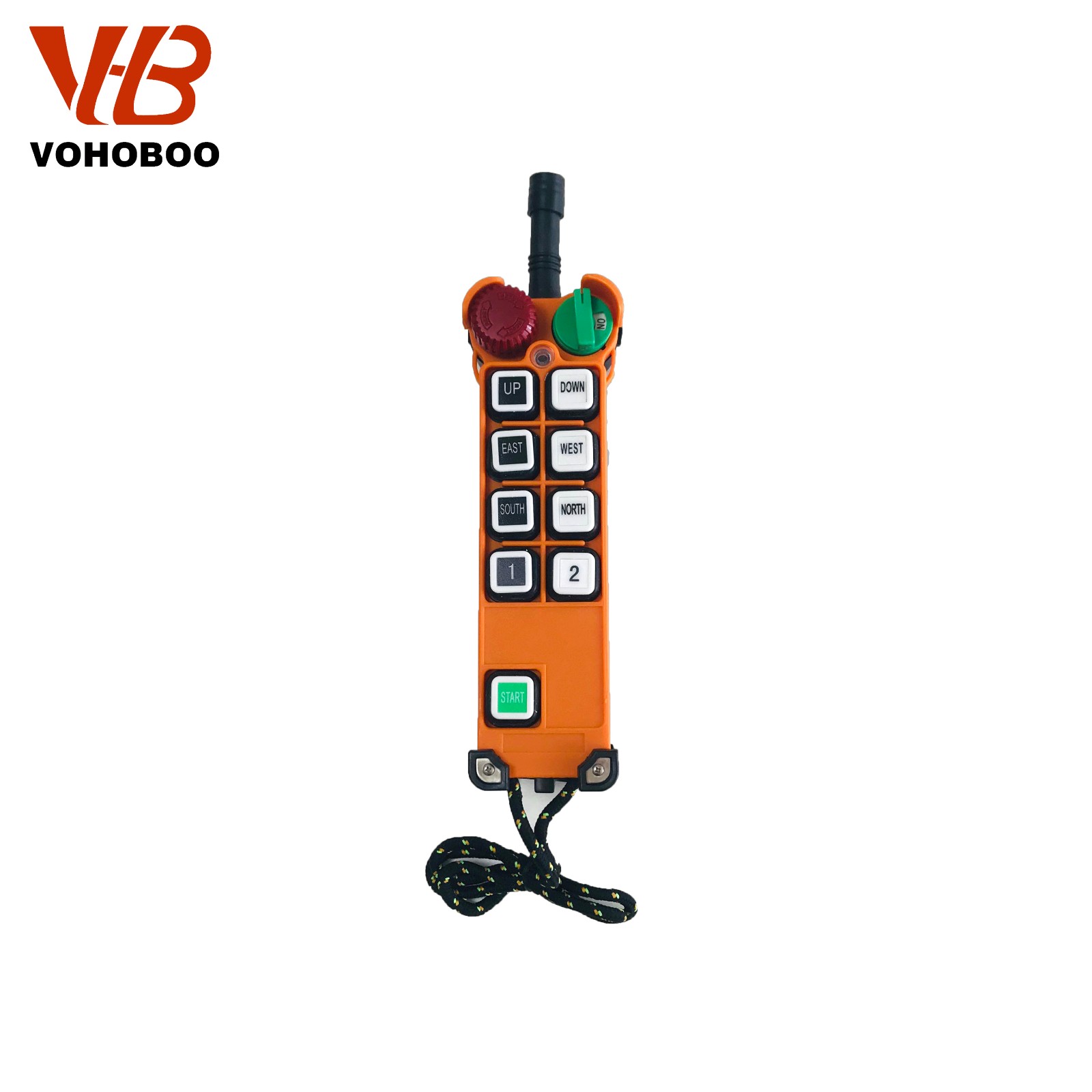

Industrial Wireless Remote Control System
The F24 series is a robust industrial wireless remote control system designed for demanding environments, including cranes and heavy machinery. It utilizes advanced frequency technology with 80 available channels to ensure reliable, interference-free operation even when multiple systems are in use. Engineered for durability, the system is resistant to dust, vibration, and extreme temperatures, offering a safe and ergonomic solution for industrial control.

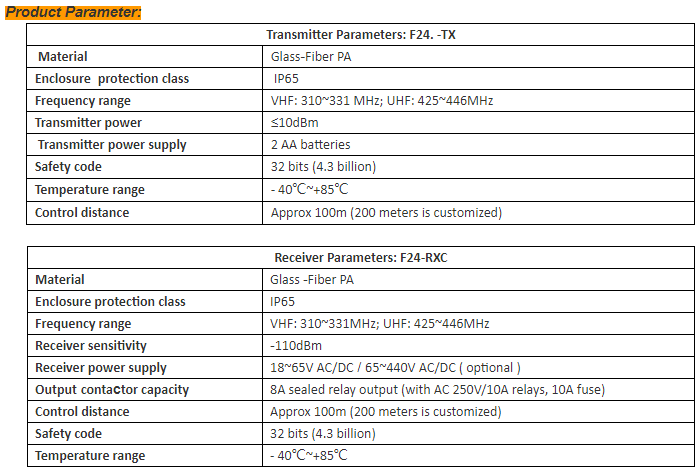

Technical Specifications
Enclosure Protection
IP65
- Frequency Range
- VHF: 310~331 MHz; UHF: 425~446 MHz
- Transmitter Power
- 10 dBm
- Safety Code
- 32-bit (4.3 billion combinations)
- Operating Temperature
- -40°C to +85°C
- Control Distance
- 100 m
Power & Electrical
- Transmitter Power Source
- 2 AA batteries
- Receiver Power Supply
- 18-65V AC/DC65-440V AC/DC
- Output Contactor Capacity
- 8A sealed relay output
Features
Key Features
- Emergency stop button
- Battery voltage warning device
- Safety switch key for unauthorized access prevention
- Durable, lightweight ergonomic shell material
- Maximum Control Contacts
- 20
