Industrial Ring Die Wood Pellet Mill
The large ring die pellet mill is a key component in large-scale pellet production lines. It efficiently processes wood, sawdust, bamboo, stalk, and palm fiber into pellets.
Technical Specifications
Overview

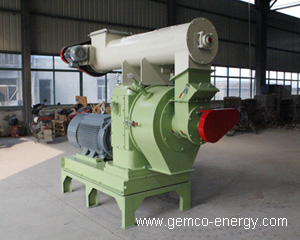

Industrial Ring Die Pellet Mill
This industrial ring die pellet mill is designed for large-scale biomass processing, serving as a critical component in pellet production plants. Utilizing a robust ring die and dual-roller extrusion system, it efficiently converts various raw materials like wood, sawdust, palm fiber, and crop waste into high-quality cylindrical pellets. With three distinct models available, this equipment offers scalable throughput options to match specific production requirements.
Processing Capabilities
- Compatible Biomass Materials
- WoodSawdustEFBPalm FiberCoconut ShellCrop WasteBagasseHops
Technical Specifications
Model Comparison Table
| Model | Capacity (Ton/Hr) | Total Power (KW) | Packing Size (mm) | Net Weight |
|---|---|---|---|---|
| BPM35 | 0.5-0.8 | 30*2+0.75+0.75 | 2150*1950*1900 | 2.2T |
| BPM420 | 1.2-1.5 / 1.5-2.0 | 90+1.5+2.2 | 2500*1100*1900(2300) | 3T |
| BPM508 | 1.5-1.8 / 2.0-2.5 | 110+1.5+2.2 | 2800*1100*1900(2300) | 3.7T |
- Operating Mechanism
- Circular ring die system with dual internal rollers for biomass extrusion.
