Industrial Process Control and Management System
This system provides comprehensive process monitoring and control through multiple display monitors. It features operator interfaces, control panels, and real-time data visualization for efficient management of industrial processes.
Technical Specifications
System Overview
Intelligent Galvanizing Process Management
This advanced industrial process control and management system is specifically engineered for hot-dip galvanizing production lines. It integrates high-performance PLC control systems with industry-grade wireless communication networks to ensure seamless data operation and efficient RGV automatic logistics. By leveraging big data and cloud platform integration, the system transforms galvanizing plants into transparent, green, and highly optimized operational environments.
Core Technology
- Controller Architecture
- Siemens 1200 PLCSiemens 1500 PLCIndustrial Automation
- Communication Network
- SCALANCE W Industry WIFI
Operational Capabilities
Key Performance Metrics
439.1 °C
Zinc Bath Temperature
62.7 °C
Flux Solution Temperature
53.4 °C
Cooling Pool Temperature
Monitoring & Control Features
- RGV (Rail Guided Vehicle) Operations
- Real-time Production Line Layout Visualization
- Automated Process Control
- Distance Measurement
- Speed Control

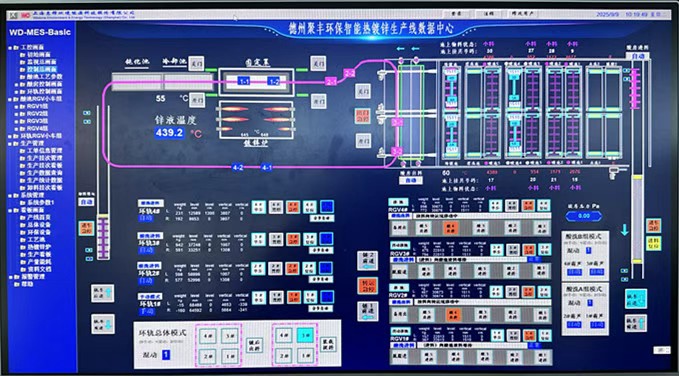

System Interface
Interface Capabilities
| Feature | Description |
|---|---|
| Data Visualization | Real-time dashboards for production status |
| Hardware Integration | Multiple display monitors and control consoles |
| Manual Override | Physical buttons and switches for manual adjustments |
