Industrial Ethernet Switch with High-Power PoE++ and SFP Ports
This industrial Ethernet switch features 4 1000Base T(X) High-POE++ ports and 2 Gigabit SFP ports. It supports IEEE802.3BT/IEEE802.3AF/IEEE802.3AT standards, providing up to 90 Watts per port.
Technical Specifications
Overview
Industrial Managed PoE++ Switch

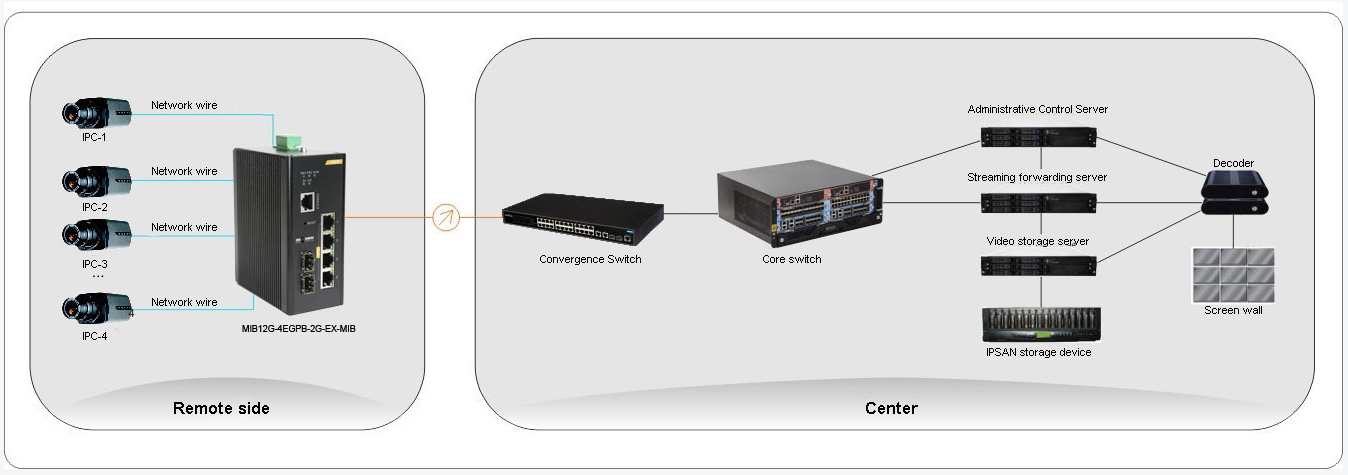

This industrial-grade managed Ethernet switch is designed for reliable performance in harsh environments, featuring 4 Gigabit PoE++ ports and 2 Gigabit SFP ports. It supports advanced PoE technology with up to 90W per port and extended transmission distances up to 250m. Built with a rugged, fanless IP40-rated metal casing, it ensures stable operation across a wide temperature range of -40 to 85°C, making it ideal for industrial automation, rail traffic, and surveillance applications.
Connectivity
- Gigabit Ethernet Ports
- 4 ports
- Gigabit SFP Ports
- 2 ports
- PoE Standards Supported
- IEEE 802.3afIEEE 802.3atIEEE 802.3bt
Performance
Switching Bandwidth
50 Gbps
Switching Capacity
37.2 Mpps
Packet Forwarding
- Buffer Memory
- 512 KB
- MAC Address Table
- 8192 entries
Environmental
Protection Grade
IP40
- Operating Temperature Range
- -40 to 85°C
Management & Protocols
Supported Protocols
- STP/RSTP/MSTP
- VLAN (802.1Q)
- SNMP v1/v2/v3
- IGMP Snooping
- LLDP
- QoS
Security Features
- 802.1x Authentication
- Loop Detection
- Port+IP+MAC Binding
- Broadcast Storm Suppression
