Industrial Ethernet Switch with 8GE and 8SFP Ports
This industrial Ethernet switch is equipped with 8 gigabit Ethernet ports and 8 SFP ports. It provides high-speed connectivity for industrial applications and supports a wide operating temperature range.
Technical Specifications
Overview
Industrial-Grade Connectivity

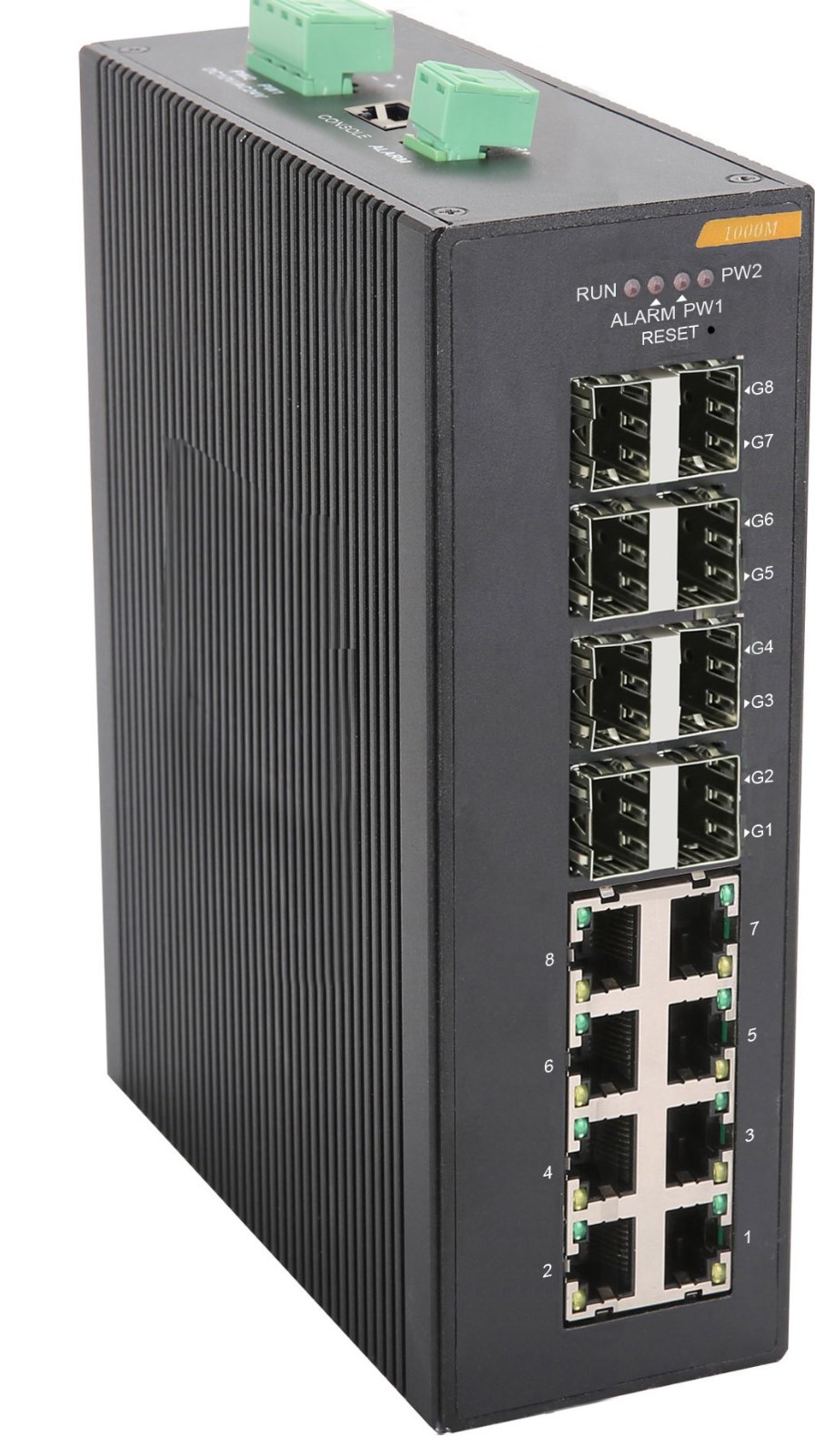

This managed industrial Ethernet switch is engineered for reliability in the most demanding environments, featuring a fanless design and rugged IP40-rated corrugated metal casing. With 8 Gigabit SFP fiber ports and 8 Gigabit RJ45 ports, it delivers high-speed, flexible connectivity for industrial automation, surveillance, and traffic control systems. Designed for mission-critical applications, it supports redundant power inputs and rapid ring recovery times of less than 20ms to ensure continuous network uptime.
- Compliance & Standards
- CEFCCRoHSIP40
Performance & Connectivity
Switching Performance
50 Gbps
Switching Bandwidth
41.664 Mpps
Packet Forwarding
16 K
MAC Address Table
Port Configuration
- 8 x 1000Base-T(X) RJ45 ports
- 8 x 1000Base-SFP FX fiber ports
Software & Management
Management Protocols
- SNMP v1/v2/v3
- CLI
- WEB
- Telnet
- RMON
- LLDP
Security Features
- MAC Address Filtering
- Loop Detection
- Port+IP+MAC Binding
- Broadcast Storm Suppression
- QoS Policies
Power & Physical
Power Requirements
| Parameter | Value |
|---|---|
| Input Voltage | 15-60VDC / 12VDC (Redundant) |
| Max Idle Consumption | 0.61A @ 12VDC |
| Max Full-load Consumption | 1.13A @ 12VDC |
Environmental Limits
| Condition | Range |
|---|---|
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -45°C to +85°C |
| Relative Humidity | 5% to 95% (Non-condensing) |

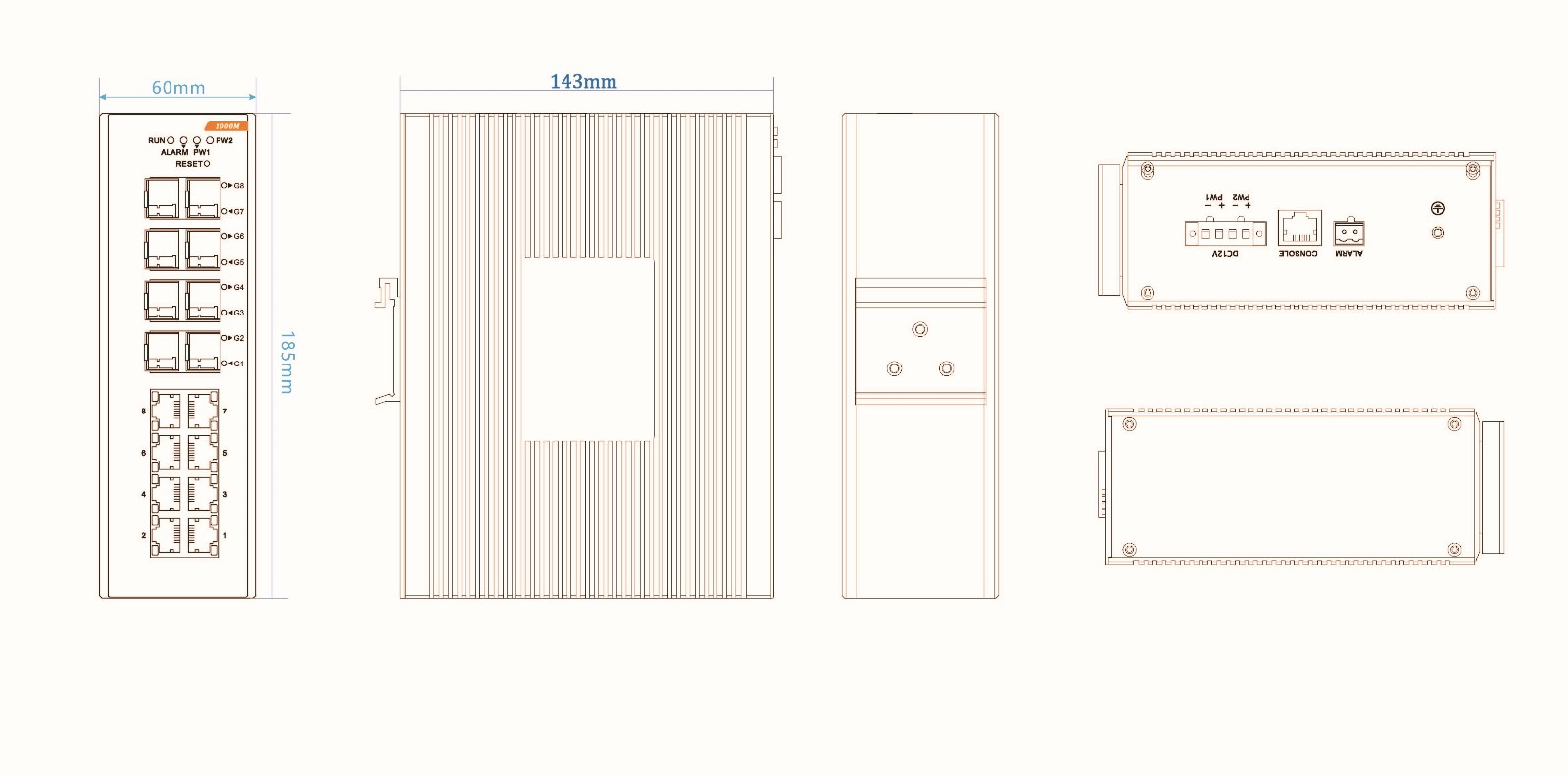

- Physical Dimensions
- 185 x 143 x 60 mm
- Weight
- 1.24 kg
