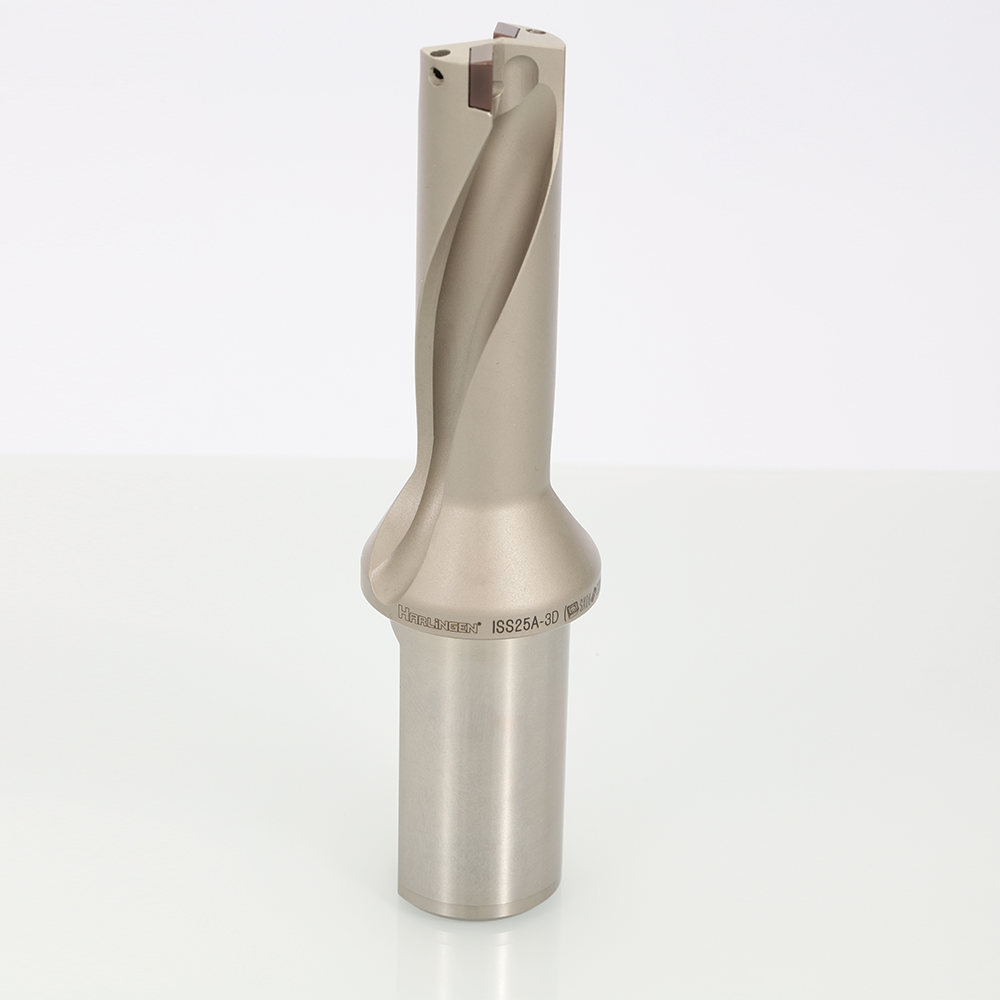

Indexable Drill with Replaceable Inserts
This indexable drill is designed for precision hole making. Its features include helical flutes for efficient chip evacuation and replaceable cutting inserts for extended tool life.
Technical Specifications
Product Overview
High-Performance Indexable Drilling
This indexable drill is engineered for precision hole making, featuring a variable helix design that significantly improves chip evacuation. Constructed from high-quality alloy steel, it supports internal coolant and high feed rates to maximize productivity in demanding machining environments. The tool's insert pockets are precisely positioned to ensure cutting forces remain low and evenly distributed, providing stability and a high-quality finish.
Technical Features
Cooling System
Internal Coolant
- Available Cutting Depths
- 3D4D5D
- Body Material
- Quality Alloy Steel
- Shank Configuration
- Straight shank with flat driving
Design Benefits
Performance Advantages
- Variable helix for superior chip evacuation
- High feed rate compatibility
- Precisely positioned insert pockets for low cutting force
- Evenly distributed cutting forces for tool longevity
- Replaceable inserts for cost-effective maintenance
Specifications
Tool Specifications
| Property | Value |
|---|---|
| Model Reference | ISS25A-3D |
| Compatible Insert | SXMT080408 |
| Tool Type | Indexable Drilling Cutter |
