Hydraulic Terminal Crimper 16-300mm²

This hydraulic crimper ensures secure connections between terminals and conductors. It provides a reliable crimping solution for a range of cable and terminal sizes.

Request a Quote Download PDFPDF

JM-240C HYDRAULIC CRIMPING TOOL - Image 1

Technical Specifications

Overview

Professional Hydraulic Crimping Solution

The JM-240C is a high-performance hydraulic crimping tool engineered for reliable connection of copper and aluminum lugs. With a powerful 100kN crimping force, this tool ensures secure, consistent hexagonal crimps for electrical conductors ranging from 16mm² to 300mm². It is designed for efficiency and ease of use in demanding electrical transmission and distribution applications.

Technical Specifications

Crimping Force

100 kN

Crimping Force

Crimping Shape

Hexagonal

Crimping Range: 16mm² - 300mm²
Length: 530 mm
Weight: 4 kg

Compatibility & Dies

Supported Die Series

MT
DT
MTA
E
ML
DL
MLA

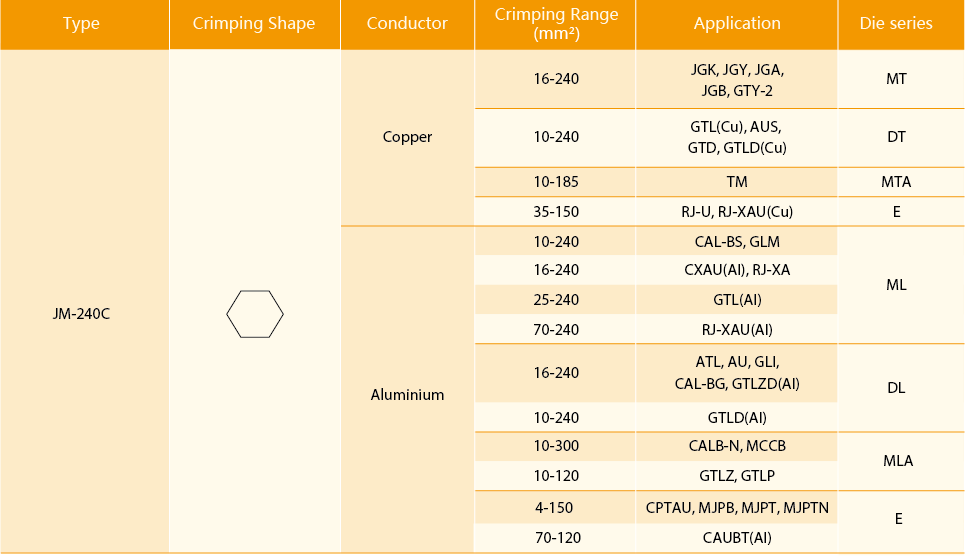

Hydraulic crimping tool showing die compatibility and application range — Technical diagram detailing die series compatibility and conductor range.

Package Contents

What's in the box: Hydraulic CrimperDie SetManualPlastic Carry Case
