Hydraulic Power Catwalk for Drill Pipe Transfer
This hydraulic power catwalk facilitates the safe transfer of drill pipes and tubulars. Its modular design is suitable for various operations, featuring one-key movement, automatic positioning, and comprehensive safety functions.
Technical Specifications
Overview
Hydraulic Power Catwalk for Drill Pipe Transfer

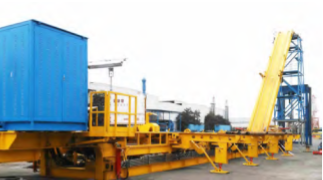

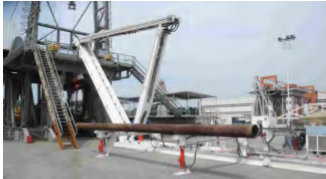

This modular hydraulic power catwalk is designed for efficient drill pipe transfer in petroleum prospecting and drilling operations. It features a stable triangular structure formed by the tubular support beam and ramp, ensuring safe and smooth operation. The system includes advanced safety features like one-key movement, automatic positioning, and emergency lowering functions, with options for both local and wireless remote control.
Key Features
Deployment Options
Trailer MountedSkidding ModuleCluster Well CompatibleDesert Operation Ready
- Operational Capabilities
- Modular DesignWireless Remote ControlAutomatic PositioningEmergency LoweringSafety Interlock
Technical Specifications

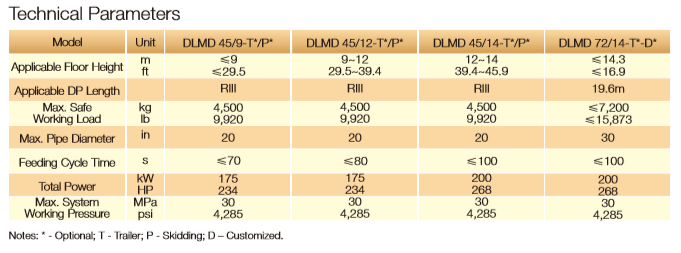

Model Comparison Table
| Specification | DLMD 45/9 | DLMD 45/12 | DLMD 45/14 | DLMD 72/14 |
|---|---|---|---|---|
| Applicable Floor Height (m) | ≤9 | 9-12 | 12-14 | ≤14.3 |
| Max Safe Load (kg) | 4,500 | 4,500 | 4,500 | ≤7,200 |
| Max Pipe Diameter (in) | 20 | 20 | 20 | 30 |
| Feeding Cycle Time (s) | ≤70 | ≤80 | ≤100 | ≤100 |
| Total Power (kW) | 175 | 175 | 200 | 200 |
Max System Working Pressure
30 MPa
Pressure
4,285 psi
Pressure
