Technical Specifications
Overview
Heavy Duty Performance

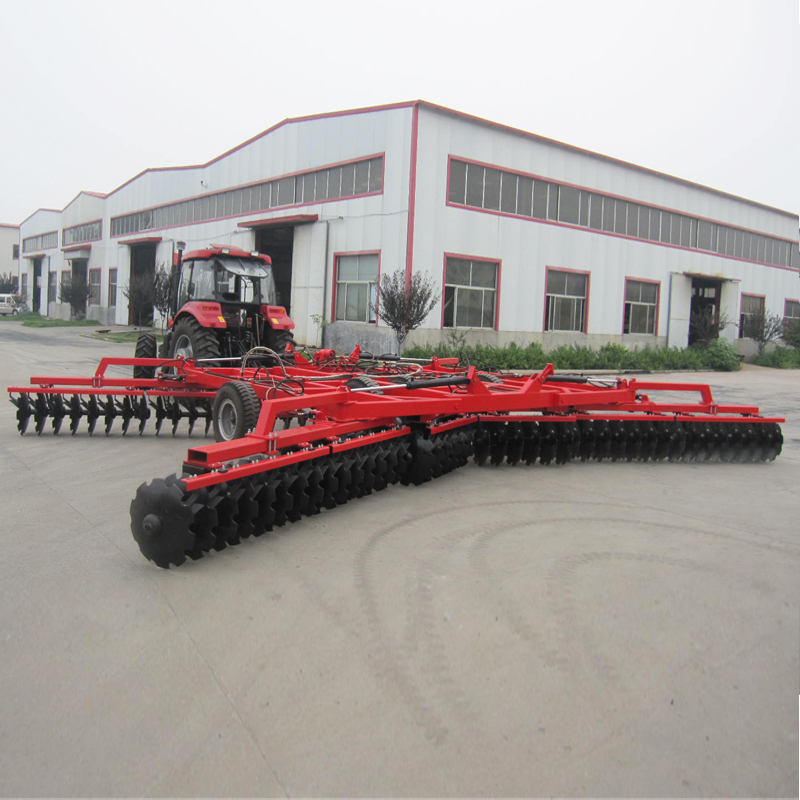

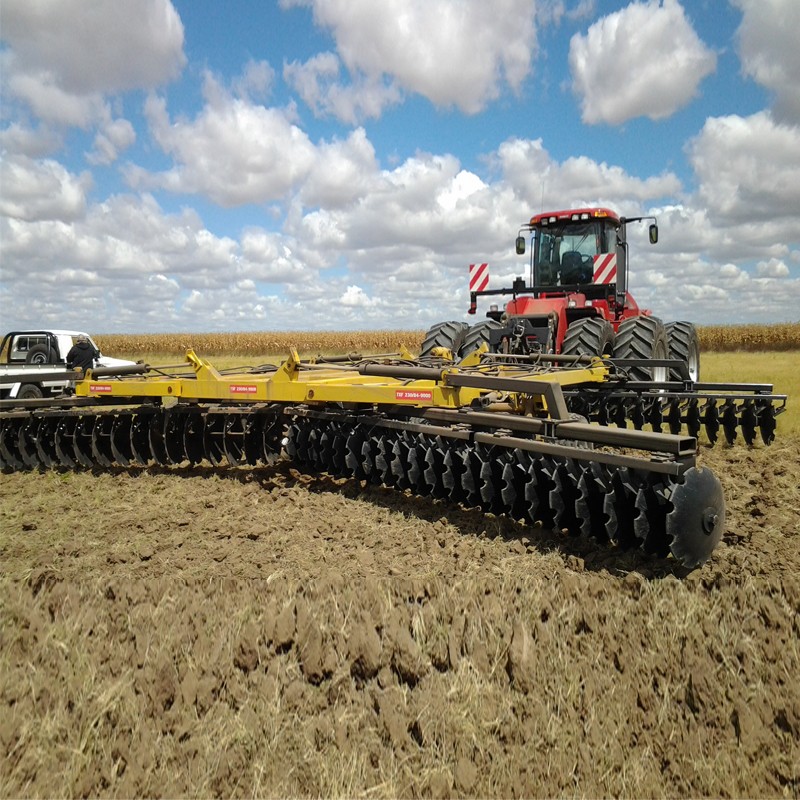

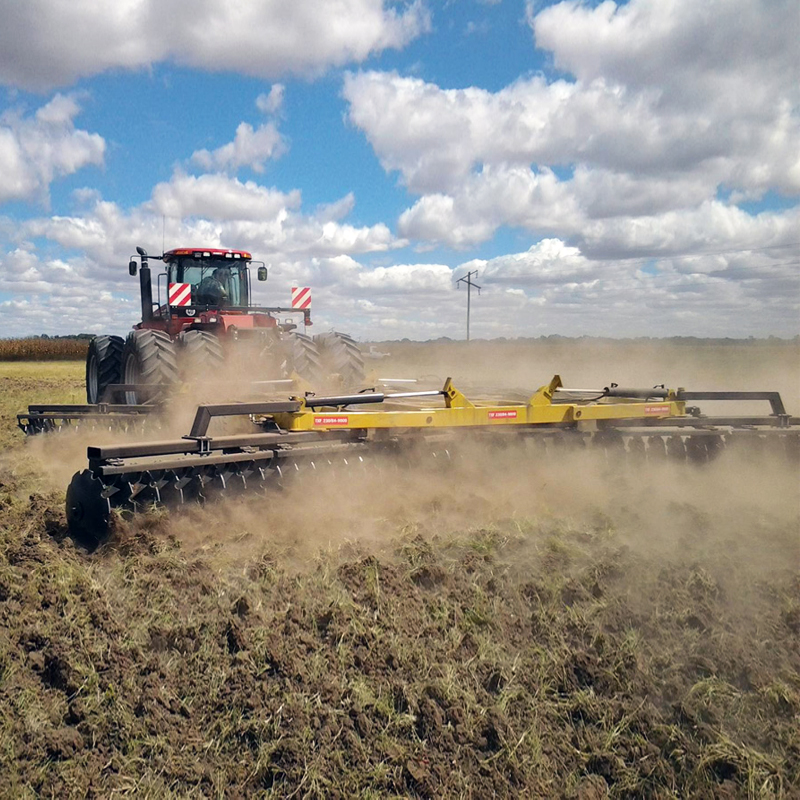

The 1BZD hydraulic folding heavy duty disc harrow is engineered for demanding agricultural tasks, including stubble ploughing and residue management. Its robust design allows for effective operation in heavy soil conditions where standard harrows may struggle. The integrated hydraulic system simplifies transport between fields and enables precise working depth adjustments directly from the tractor cabin, ensuring efficient corner turning and consistent soil engagement.
Technical Specifications
Model Comparison Table
| Model | Discs | Width (mm) | Weight (kg) | Tractor (hp) |
|---|---|---|---|---|
| 1BZD-6.5 | 64 | 6,500 | 7,000 | 300 |
| 1BZD-7.5 | 72 | 7,500 | 7,200 | 350 |
| 1BZD-8.5 | 80 | 8,500 | 7,500 | 400 |
| 1BZD-9.0 | 84 | 9,000 | 7,650 | 400 |
| 1BZD-9.5 | 88 | 9,500 | 8,300 | 500 |
- Disc Diameter
- 660 mm
- Working Depth
- 180-220 mm
Key Features
Key Features

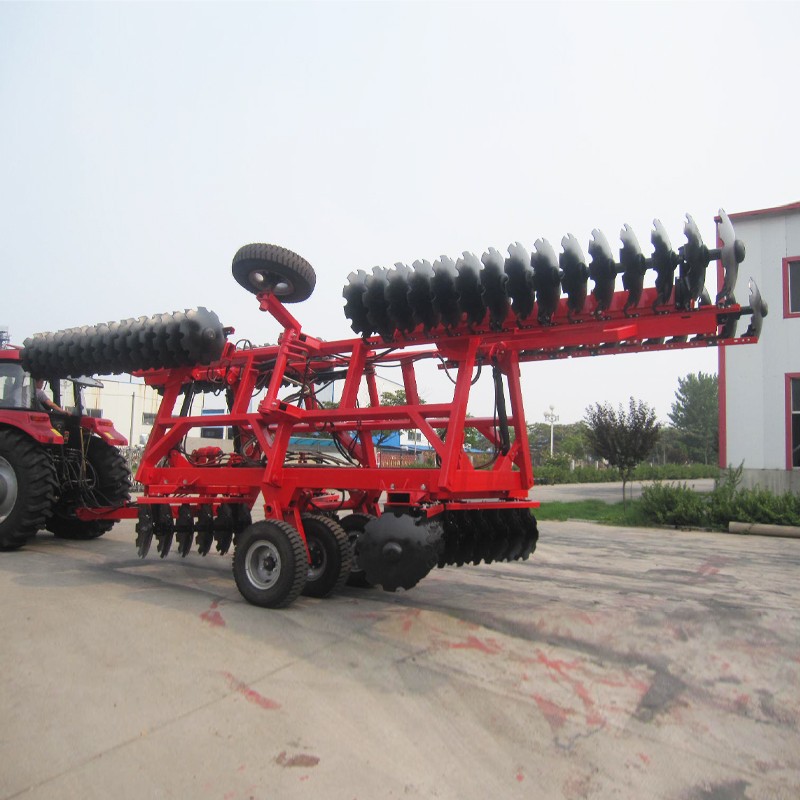

- Hydraulic folding mechanism for easy transport
- Hydraulic depth control operated from tractor cabin
- Heavy duty frame construction
- Suitable for heavy soil and crop residue management
- Fast corner turning capability
