Technical Specifications
Product Overview
High-Performance Hydraulic Crimping
The CH-240A is a robust hydraulic crimping head engineered for professional electrical power transmission and distribution applications. It provides a powerful 120kN crimping force, ensuring secure and reliable connections for aluminum conductors with minimal operator effort. This versatile tool is designed to work seamlessly with external hydraulic pumps to handle a wide range of cable terminal sizes.
Technical Performance
Key Performance Metrics
120 kN
Crimping Force
5.1 kg
Tool Weight
- Crimping Range
- 16mm² - 240mm²
Compatibility & Applications

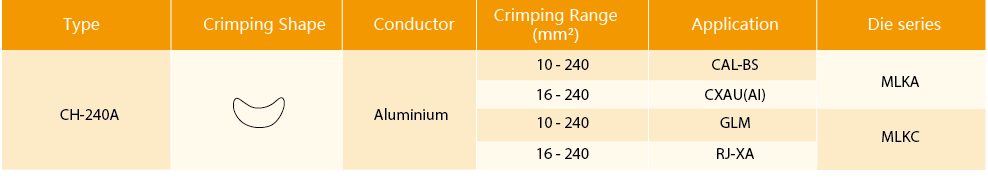

Application Compatibility
| Conductor Material | Range (mm²) | Application Type | Die Series |
|---|---|---|---|
| Aluminium | 10-240 | CAL-BS | MLKA |
| Aluminium | 16-240 | CXAU(AI) | MLKA |
| Aluminium | 10-240 | GLM | MLKC |
| Aluminium | 16-240 | RJ-XA | MLKC |
- Required Equipment
- Compatible with external hydraulic pumps
Package Contents
What's in the Box
- CH-240A Hydraulic Crimping Head
- Nest die
- Indentor
- Fixer
- User manual
- Plastic carry case
Product Features
- Key Features
- High ForcePortableInterchangeable DiesHeavy DutyIndustrial Grade
