Hydraulic Concrete Wall Saw
This hydraulic concrete wall saw is designed for precise and efficient cutting of concrete walls. It features a high-power hydraulic motor for optimal cutting performance, a robust frame for stability, and a large diameter blade for deep cuts.
Technical Specifications
Product Overview
High-Performance Hydraulic Wall Sawing System

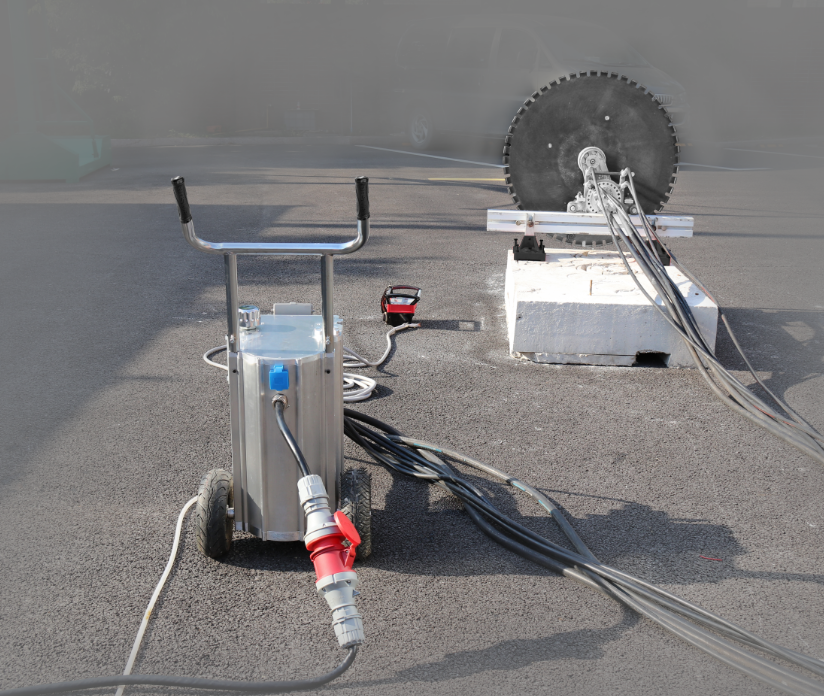

This professional-grade hydraulic concrete wall saw system is engineered for heavy-duty cutting applications, including structural alterations and controlled demolition. The system combines a robust 30kW hydraulic power unit with a high-torque machine head capable of handling blades up to 1800mm in diameter. Designed for precision and efficiency, it features a 360-degree cantilever angle and multiple speed settings to ensure optimal performance across various concrete cutting tasks.
Power Unit Specs
Rated Input Power
30 kW
Rated Power
Power Unit Technical Data
| Parameter | Value |
|---|---|
| Hydraulic Pump Form | Gear |
| Hydraulic Pump Quantity | 3 |
| Motor Cooling | 3 phase water cooling |
| Rated Voltage | 380/400/480 V |
| Current Overload | 47 A |
| Gross Weight | 160 kg |
Cutting Capabilities
Cutting Performance
1,800 mm
Max Blade Diameter
815 mm
Max Cutting Depth
340 Nm
Torque Force
Spindle Speeds
- 1st Speed: 590 rpm
- 2nd Speed: 850 rpm
- 3rd Speed: 1020 rpm
- 4th Speed: 1300 rpm
Machine Head Specs
Machine Head Specifications
| Feature | Specification |
|---|---|
| Mounting Form | Quick installation |
| Arbor Diameter | 60 mm |
| Cantilever Angle | 360° |
| Cutting Motor Weight | 27 kg |
Options
- Optional Features
- Digital remote controlFrequency conversion control
