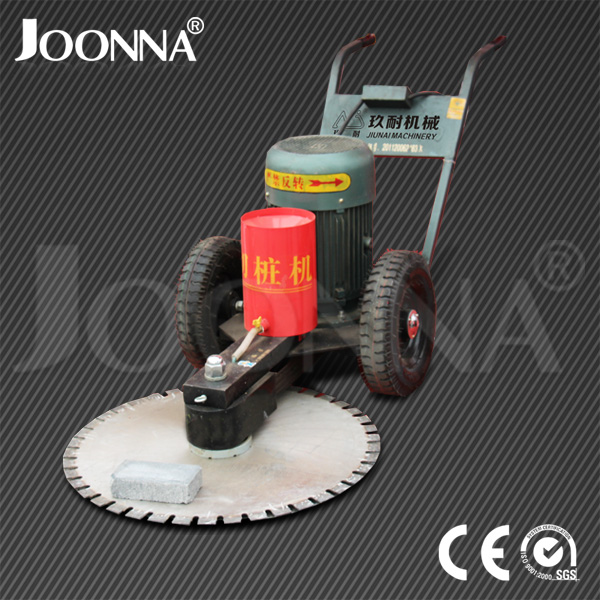

600mm Concrete Pile Cutter
This 600mm concrete pile cutter is designed for efficient and precise cutting of concrete piles in road, bridge, and port construction. It features a four-axis structure to prevent meandering during operation.
Technical Specifications
Product Overview
High-Efficiency Concrete Pile Cutting
This 600mm concrete pile cutting machine is designed for high-speed railway, road, bridge, and port construction projects. It effectively solves the challenge of head-breaking with a working efficiency equal to 20 manual workers. The machine ensures a smooth road surface by precisely cutting concrete stakes and piles with professional-grade accuracy.
Key Performance Metrics
Performance Highlights
600 mm
Max Blade Diameter
7.5 kW
Motor Power
5,400 m/min
Max Line Speed
Technical Specifications
Model Specifications
| Model | Power (kW) | Voltage (V) | Blade Spec (mm) | Weight (kg) |
|---|---|---|---|---|
| QA-500 | 7.5 | 380 | 300-500 | 117 |
| QZ-600 | 7.5 | 380 | 300-600 | 117 |
Design & Construction
Structural Features
- Four-axis anti-meandering structure
- Dual-layer water tank (plastic inner shell with iron exterior)
- Sturdy wheel-mounted frame for maneuverability
- Integrated blade guards for operator safety
- Adjustable cutting depth for versatility
- Machine Dimensions
- 1000 x 800 x 800 mm
Engine & Cooling
- Engine Brand
- Honda
- Cooling Method
- Integrated water cooling system to reduce dust and extend blade life
Certifications
Quality Standards
CESGSTUVISO 9001:2000
