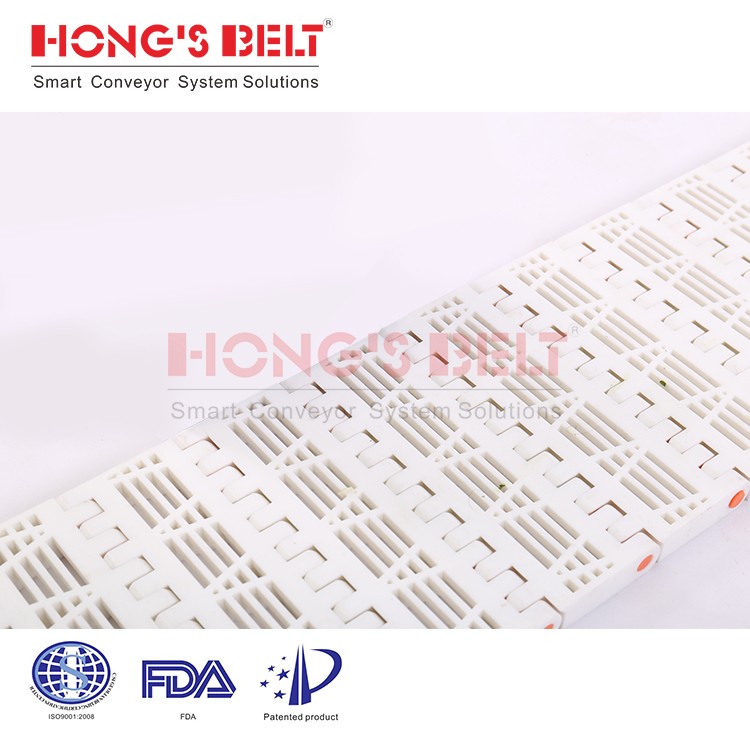

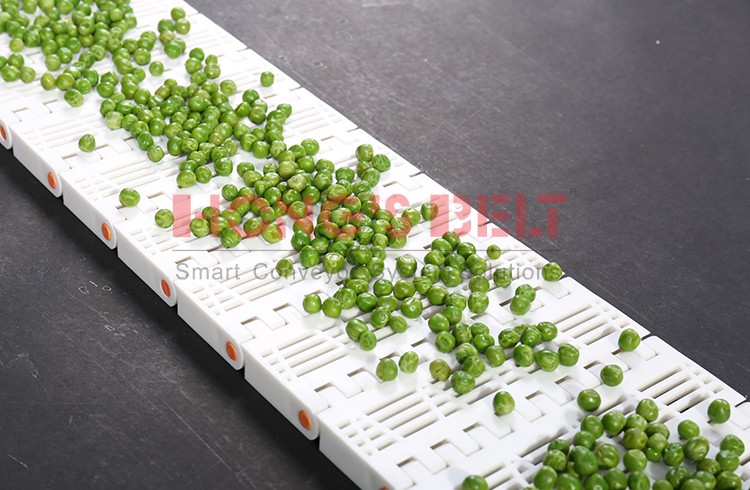

HS-902B Modular Plastic Conveyor Belt
The HS-902B modular plastic conveyor belt is designed for efficient material handling. It is constructed from plastic modules, offering durability and ease of maintenance.
Technical Specifications
Overview
Modular Plastic Conveyor Belt
This modular plastic conveyor belt is engineered for high-performance material handling across diverse industrial environments. Featuring a robust modular construction, it offers exceptional durability, ease of maintenance, and flexible configuration options. The design includes an open area for superior sanitation, making it an ideal solution for food processing and other hygiene-sensitive applications.
Physical Dimensions
- Pitch
- 50.8 mm
- Thickness
- 16 mm
- Minimum Width
- 150.8 mm
- Rod Diameter
- 8 mm
Performance
Maximum Load Capacity
1.2 tons/m²
Max Load
- Open Area
- 23 %
- Working Temperature
- -40°C to 260°C
Configuration
Available Colors
WhiteBlueGrayNatureDark-brown
Compatible Sprocket Sizes
- 7T
- 8T
- 9T
- 10T
- Material Options
- PPPOMPEPA
Features
Key Features
- Flight included
- Maintenance-free design
- Easy to clean
- Food-grade materials available
- Certifications
- FDA ApprovedEU Approved
Applications
Industry Suitability
| Sector | Applications |
|---|---|
| Food Industry | Meat, Poultry, Sea Food, Bakery, Snack Food, Fruit & Vegetables |
| Non-food Industry | Automotive, Packaging, Printing/Paper, Textile, Can/PET Manufacturing |
