Technical Specifications
Overview

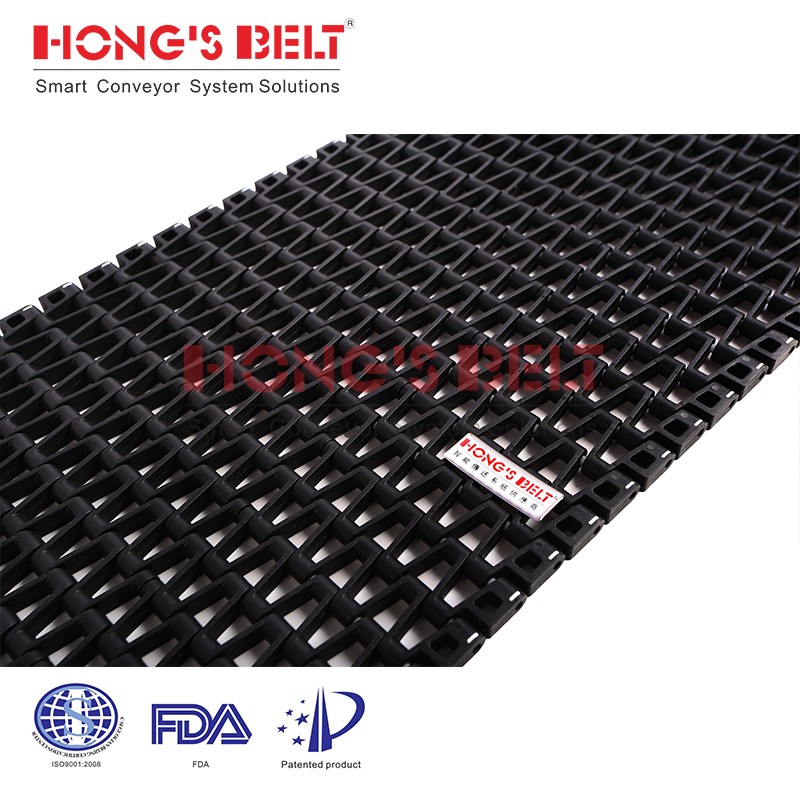

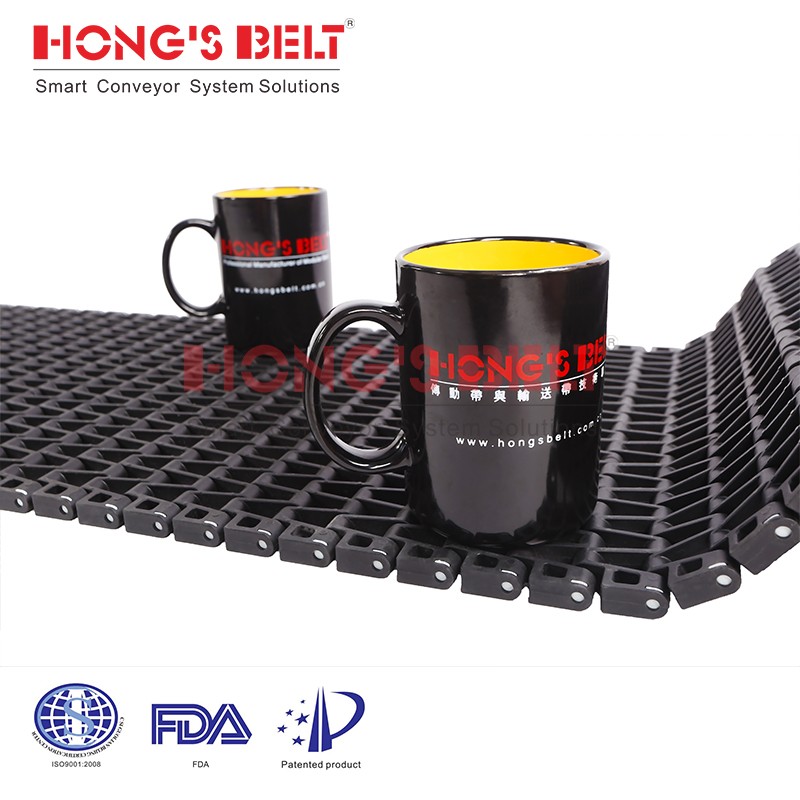

Modular Plastic Conveyor Belt
This modular plastic conveyor belt is engineered for high-performance applications, including heat shrink tunnel lines and various industrial processing environments. Its modular design allows for efficient assembly, maintenance, and repair, significantly reducing downtime. Built to withstand demanding conditions, the belt offers chemical and abrasion resistance, ensuring a long service life and reliable operation.
Technical Specifications
Belt Dimensions
25 mm
Pitch
11 mm
Thickness
182 mm
Min. Width
4.9 mm
Rod Diameter
Performance Metrics
44 %
Open Area
1.2 tons/m²
Max Load Capacity
Regulatory Compliance
FDA ApprovedEU Compliant
- Working Temperature
- -40°C to 260°C
- Material Composition
- PPPOMPEPA
- Available Colors
- WhiteBlueGrayNatureDark-brown
Design Features
Sprocket Configuration
- 9T
- 11T
- 13T
- 15T
- Square bore
- Round bore
Belt Capabilities
| Feature | Status |
|---|---|
| Flight | No |
| Side Guard | No |
| Curve Capability | No |
Applications
Industries Served
- Meat & Poultry Processing
- Seafood
- Bakery
- Snack Food
- Fruit & Vegetables
- Automotive
- Tire Manufacturing
- Packaging
- Printing & Paper
- Postal Services
- Corrugated Cardboard
- Can Manufacturing
- PET Manufacturing
- Textile
