Technical Specifications
Overview

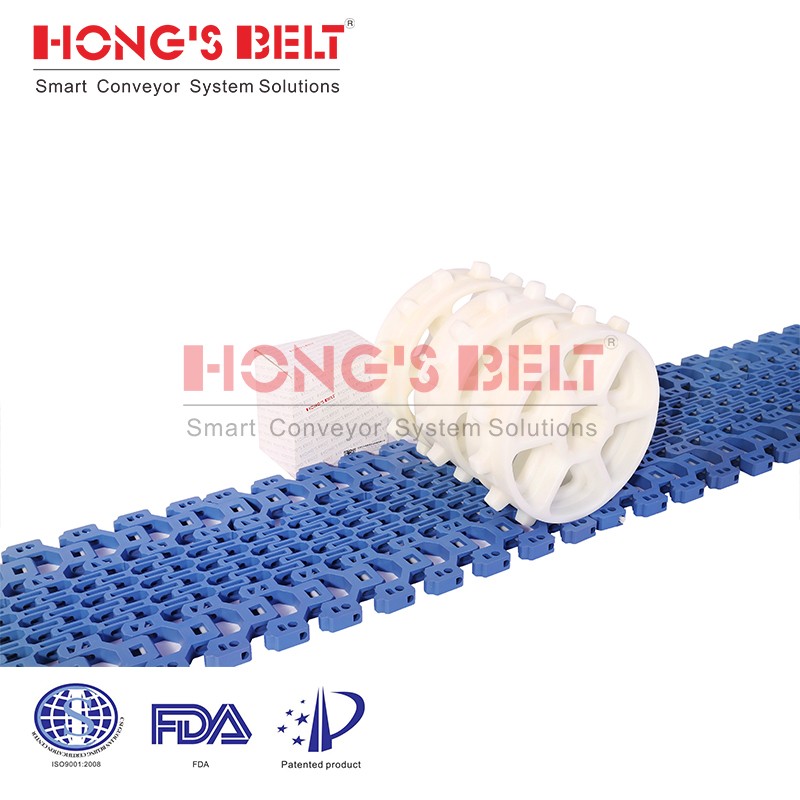

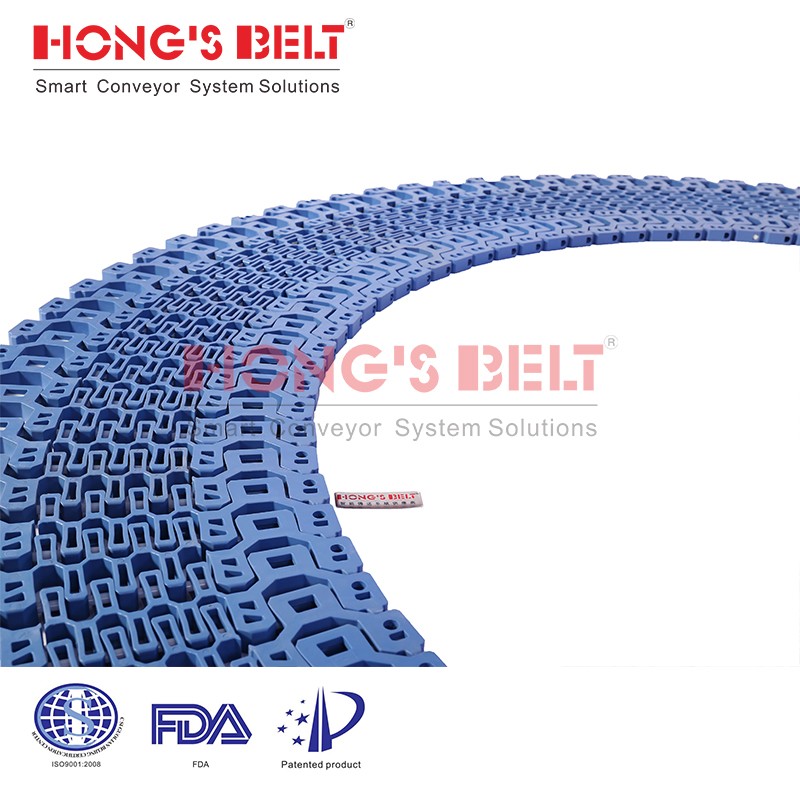

Modular Plastic Conveyor Belt for Spiral Systems
This modular plastic conveyor belt is engineered specifically for spiral conveyor applications. It features a robust design that supports smooth product handling while offering significant operational advantages, including maintenance-free operation and a longer service life compared to traditional belts. With high load-bearing capabilities and food-grade material options, it is an ideal solution for demanding environments in both food processing and industrial manufacturing.
Technical Specifications
- Pitch
- 50.8 mm
- Thickness
- 14.5 mm
- Minimum Width
- 253 mm
- Open Area
- 63 %
- Rod Diameter
- 5.8 mm
- Working Temperature Range
- -40°C to 260°C
- Available Materials
- PPPOMPEPA
- Available Colors
- WhiteBlueGrayNatureDark-brown
Features & Compliance
Certifications
FDAEU
Design Features
- Curve capable
- Floating in water
- Food defrosting compatible
- Maintenance-free
- Easy to clean
Maximum Load Capacity
1.2 tons/sqm
Max Load
Applications
Industry Compatibility
| Sector | Applications |
|---|---|
| Food Industry | Meat, Poultry, Sea Food, Bakery, Snacks, Fruits & Vegetables |
| Non-Food Industry | Automotive, Tire, Packaging, Printing, Postal, Cardboard, Can, PET, Textile |
