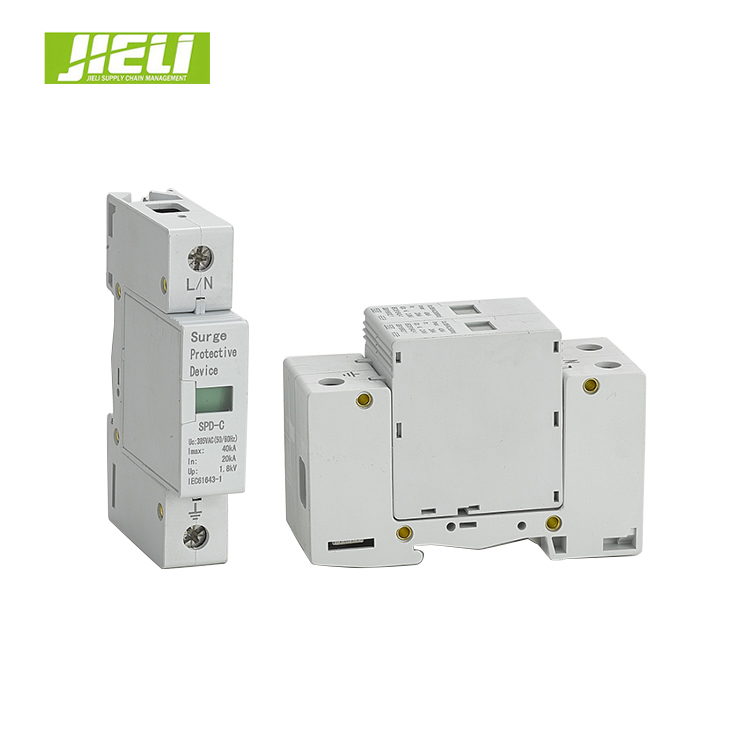

Household Electrical Surge Protection Device
This surge protection device safeguards household electrical systems from voltage spikes. It features a modular design and LCD display for easy monitoring.
Technical Specifications
Product Overview
Reliable Surge Protection for Household Systems
This modular surge protection device (SPD) is engineered to safeguard household electrical systems from dangerous voltage spikes induced by lightning strikes or grid disturbances. Featuring a user-friendly modular design for straightforward installation and maintenance, it ensures continuous protection for sensitive equipment. The device includes an integrated display for real-time status monitoring and conforms to international safety standards.
Electrical Specifications
Maximum Discharge Current (Imax)
40 kA
Max Discharge Current
- Nominal Discharge Current (In)
- 20 kA
- Rated Voltage
- 385VAC (50/60Hz)
- Voltage Protection Level (Up)
- 1.8kV - 2.0kV
Standards & Compliance
- Compliance Standards
- IEC61643-1GB18802.1
Features
Key Features
- Modular design for easy installation and replacement
- Integrated LCD display for status monitoring
- Comprehensive protection for L/N, L, and N connections
