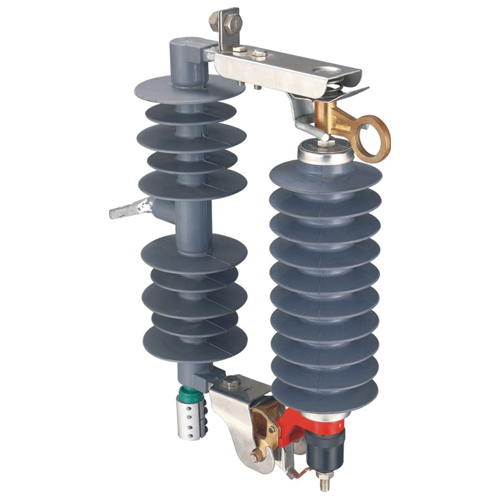

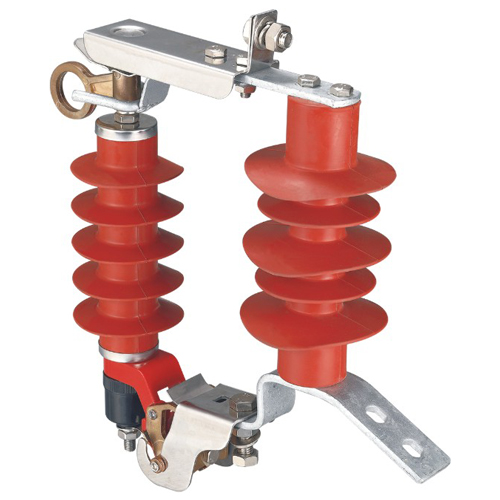

High Voltage Drop Out Arrester
This drop out arrester is designed for overvoltage protection in electrical power systems. It features a visible disconnect mechanism that activates upon arrester failure, providing a clear indication of the fault.
Technical Specifications
Overview
Advanced Overvoltage Protection
The High Voltage Drop Out Arrester combines the functionality of a cutout base with a surge arrester to provide superior protection for electrical transmission and distribution systems. This innovative design allows for quick installation and convenient replacement, making it an increasingly popular choice for modern power lines. It is specifically engineered to divert transient overvoltages to the ground, ensuring the long-term safety and reliability of your electrical equipment.
Key Features
Main Benefits
- Combined cutout base and surge arrester design
- Quick and convenient installation and replacement
- Visible fault indication via dropout mechanism
- Enhanced insulation for outdoor environmental conditions
- Corrosion-resistant hardware for durability
Technical Design
- Insulator Material
- Polymer / Polymeric
- Insulator Features
- Multiple ShedsHigh Creepage DistanceFlashover PreventionSegmented Body
- Hardware Material
- Corrosion-resistant metal
Operation & Maintenance
Fault Indication
Visible Disconnect MechanismAutomatic Drop-out
- Application Environment
- Outdoor power lines and distribution systems
Customization
- Customization Available
- Yes
