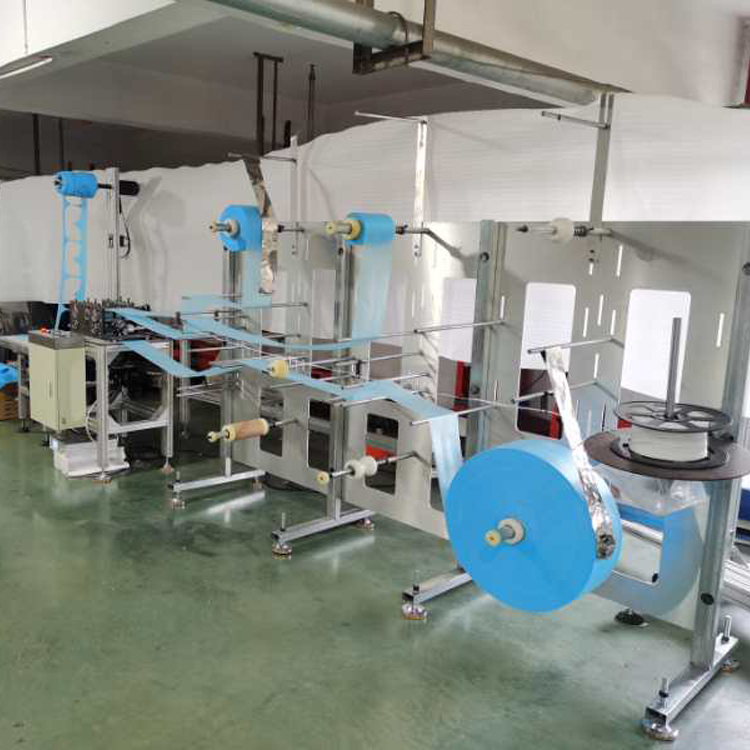

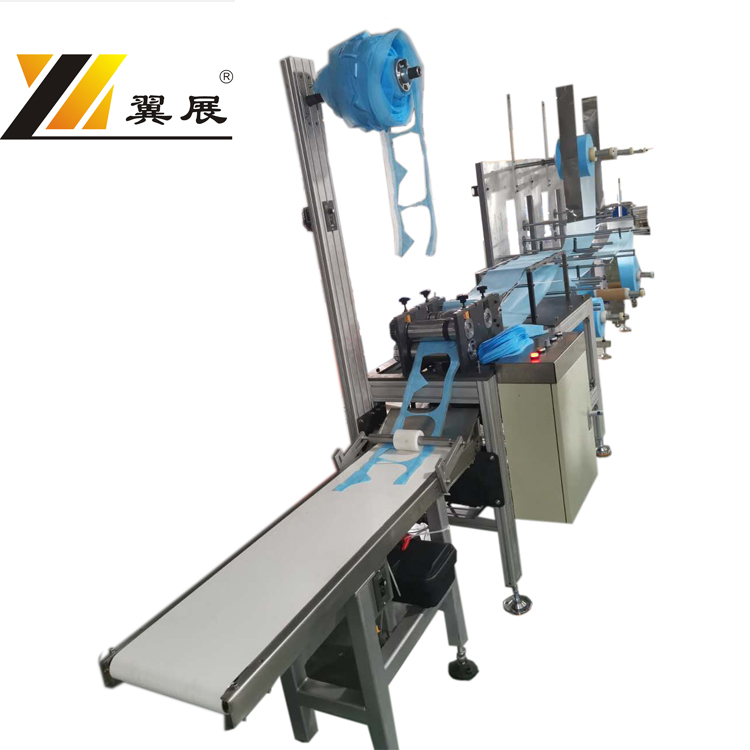

High-Speed KN95 Mask Laminating Machine
This high-speed laminating machine employs ultrasonic welding for automated production of multi-layer masks. It manages coil feeding, nose strip insertion, pattern welding, mask cutting, and main body blanking with manual feeding and automatic blanking.
Technical Specifications
Product Overview
High-Speed KN95 Production
This high-speed laminating machine utilizes advanced ultrasonic welding technology to automatically produce the main body of 2-5 layer butterfly-style masks. The system integrates coil feeding, nose strip insertion, pattern welding, and cutting into a seamless automated process. Designed for high-efficiency manufacturing, it allows for simple mold changes to adapt to various butterfly mask specifications.
Technical Specifications
Production Speed
50 PCS/min
Minimum Speed
70 PCS/min
Maximum Speed
- Model Number
- YZ-KN95-GDP
- Power Supply
- 220VAC±5%, 50HZ
- Power Consumption
- 0.75 KW
- Ultrasonic System
- 15K 2600W
Dimensions and Weight
- Weight
- 400 KG
- Dimensions (LxWxH)
- 5200 x 1100 x 2100 mm
Operational Environment
Operating Conditions
- Temperature: 10-35°C
- Humidity: 5-35% HR
- Environment: No dust (cleanliness no less than 100,000)
Process Capabilities
- Automated Process Steps
- Coil FeedingNose Strip FeedingMask Pattern WeldingMask CuttingMain Body Blanking
