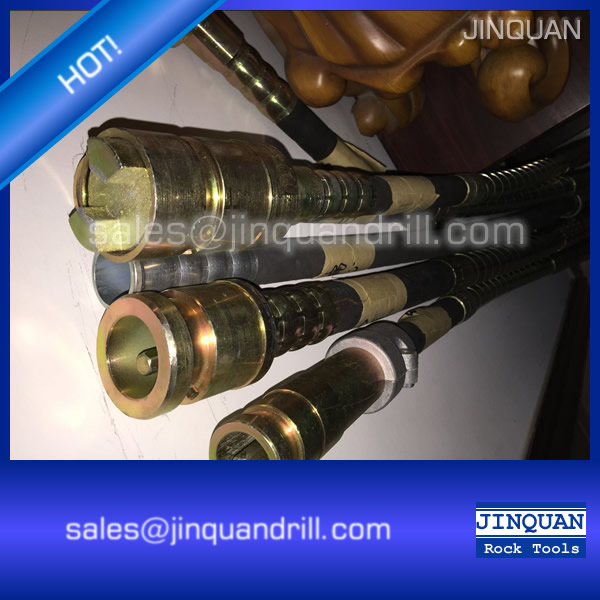

High Speed Concrete Vibrator

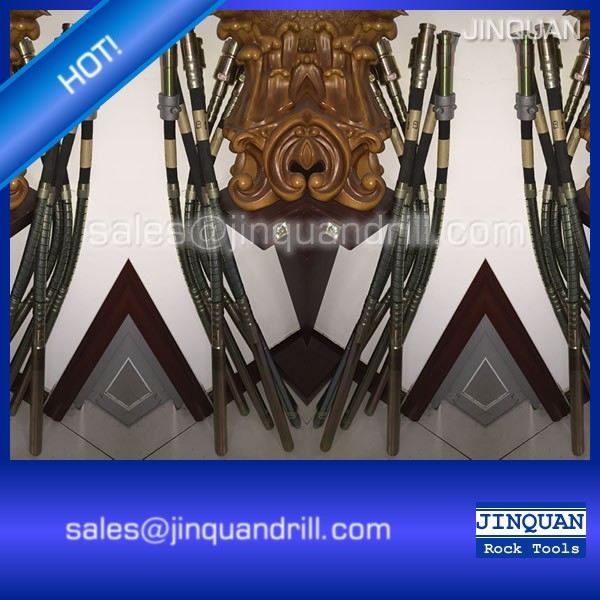

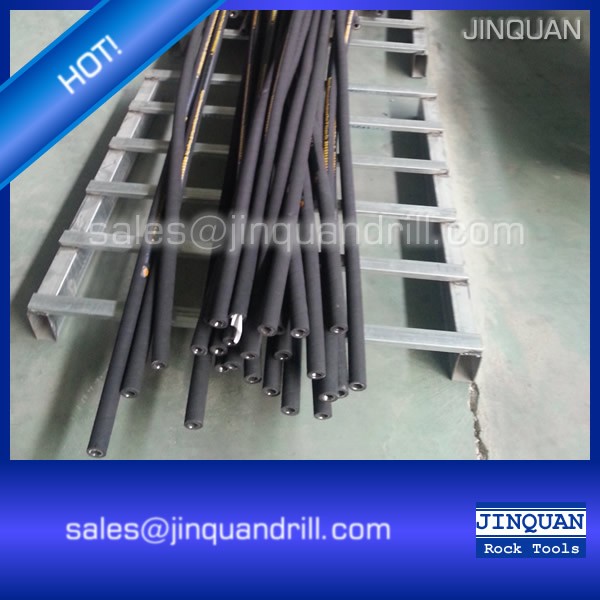

This concrete vibrator is designed for concrete foundation work. It utilizes a flexible rubber hose to deliver high-speed vibration, ensuring thorough compaction.
Technical Specifications
Overview
High-Efficiency Concrete Consolidation
This high-speed concrete vibrator is specifically designed for foundation work and structural concrete applications. It effectively removes air pockets and ensures uniform aggregate distribution, resulting in stronger and more durable concrete structures. Featuring a flexible rubber hose and robust construction, it is engineered to withstand demanding job site conditions while maintaining high-frequency performance.
Performance Metrics
Core Performance
4,000 r/min
Max Speed
200 Hz
Max Frequency
1 mm
Max Amplitude
Technical Specifications
Model Comparison
| Model | Diameter (mm) | Speed (r/min) | Frequency (Hz) | Amplitude (mm) | Weight (kg) |
|---|---|---|---|---|---|
| Model 4 | 38 | 2800-4000 | 200 | 1 | 10 |
| Model 6 | 38 | 2800-4000 | 195 | 0.9 | 12.5 |
Design & Build

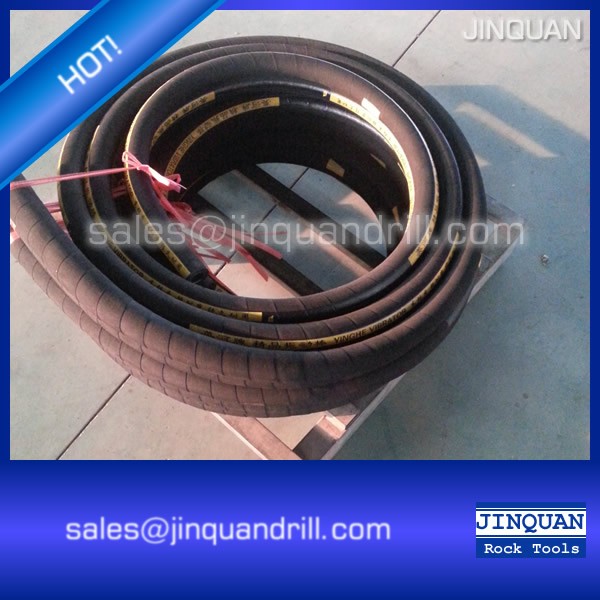

- Hose Material

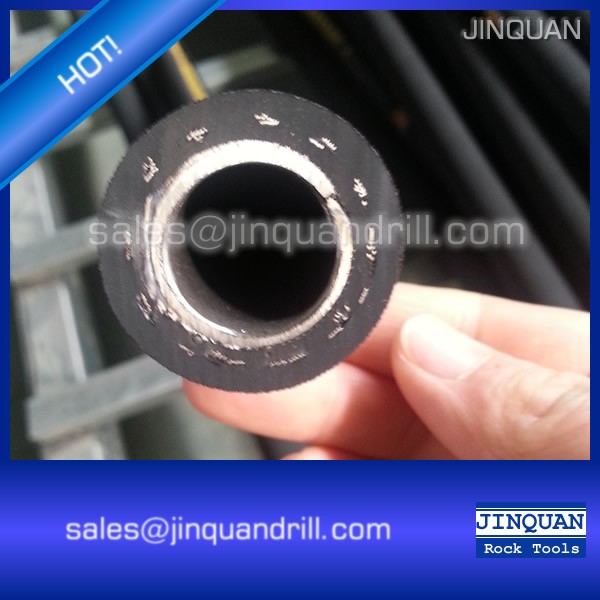

- Flexible rubber hose with reinforced inner lining
- Unit Dimensions
- 720 x 650 x 50 mm
Applications
Key Benefits
- Eliminates air pockets for higher density
- Improves structural integrity
- High-frequency vibration for rapid settling
- Durable construction for heavy-duty use
- Enhanced pressure resistance in flexible shaft
- Ideal For
- Concrete FoundationsColumnsSlabsPrecast ElementsRoad Construction
