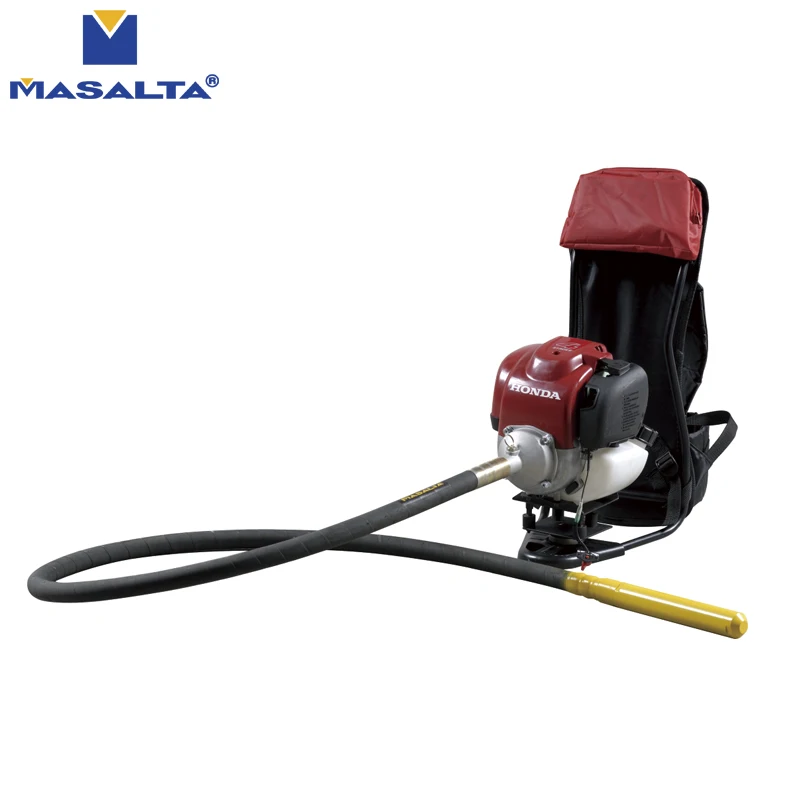

Portable Backpack Concrete Vibrator
This portable vibrator is powered by a 4-stroke petrol engine and includes a comfortable backpack for easy operation. It eliminates the need for an electricity supply or separate drive unit.
Technical Specifications
Overview
Portable Concrete Consolidation
Powered by a reliable 4-stroke petrol engine, this portable backpack vibrator provides complete mobility on the job site without the need for electricity or separate drive units. Its ergonomic design and isolated frame minimize vibration transfer to the user, ensuring comfort during extended operation. This versatile tool features quick-connect shafts and a swivel-designed engine base, making it suitable for both right- and left-handed operators.
Key Features
Operational Advantages
- 4-stroke engine requires no oil/gasoline mixture
- Low noise and low emission operation
- Total mobility without dependence on electric power
- Ergonomic backpack design improves user comfort
- Isolated frame minimizes vibration transfer to the user
- Quick connection and disconnection device on the shaft
- Swivel-designed engine base for right- and left-handed users
Technical Specifications
Engine Power
1.2 kW
Power
1.6 hp
Power
Model Specifications
| Model | Head Dia (mm) | Length (m) | Amplitude (mm) |
|---|---|---|---|
| MPG3215 | 32 | 1.5 | 1 |
| MPG3225 | 32 | 2.5 | 1 |
| MPG3815 | 38 | 1.5 | 1.2 |
| MPG3825 | 38 | 2.5 | 1.2 |
- Vibration Frequency
- 225 Hz
- Flexible Shaft Revolution
- 3000-3600 rpm
