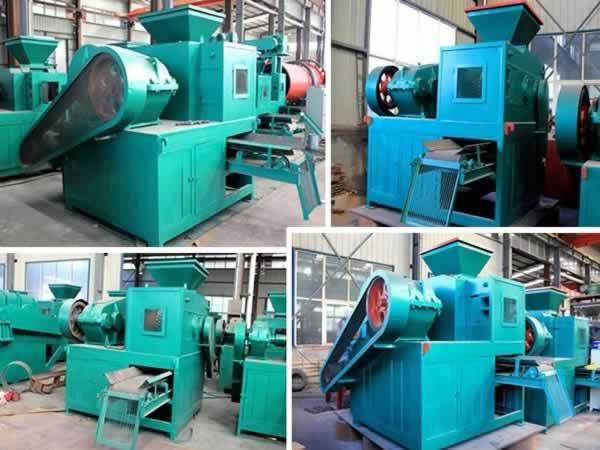

High Pressure Briquette Compactor
High pressure briquette press machines feature high forming pressure and an adjustable engine revolution. Assembled with a spiral feeding device, it ensures consistent material processing.
Technical Specifications
Overview
High-Performance Briquette Compaction
This high-pressure briquette compactor is engineered for robust material densification, featuring an adjustable engine revolution and an integrated spiral feeding device. It is capable of processing a wide range of materials, including coal powder, mineral powder, gypsum, and industrial slags into uniform, high-density shapes. The resulting briquettes are environmentally friendly, significantly easier to transport, and ideal for optimizing waste management and recycling applications in demanding industrial environments.
Capabilities
- Suitable Materials
- GypsumCoal PowderMineral PowderOxide SkinSteel SlagIron Fine PowderAluminum Ash
Technical Specifications
Model Specifications
| Model | Roll Diameter (mm) | Roll Width (mm) | Total Pressure (t) | Motor Power (kW) | Output (t/h) | Weight (t) |
|---|---|---|---|---|---|---|
| GY520-150 | 520 | 196 | 150 | 55 | 2.2-3.5 | 13 |
| GY650-220 | 650 | 200 | 220 | 110 | 4-6.5 | 19.2 |
| GY750-300 | 750 | 280 | 300 | 185 | 6-8.5 | 34 |
| GY1000-350 | 1,000 | 440 | 350 | 250 | 10-15 | 50.8 |
| GY1000-450 | 1,000 | 504 | 450 | 280 | 14-17 | 58.5 |
| GY1000-500 | 1,000 | 504 | 500 | 315 | 15-20 | 58.5 |
| GYS1000-500 | 1,000 | 600 | 500 | 280 | 17-21 | 56.5 |
| GY1000-540 | 1,000 | 900 | 540 | 185 x 2 | 30-35 | 60 |
| GY1200-800 | 1,200 | 900 | 800 | 280 x 2 | 40 | 110 |
| GY1400-1000 | 1,400 | 1,000 | 1,000 | 400 x 2 | 50 | 156 |
