High-Efficiency Fiber Carding Machine
This carding machine features a high-production carding system designed for efficiency. Its modular design ensures ease of operation and maintenance.
Technical Specifications
Overview
High-Efficiency Carding Excellence

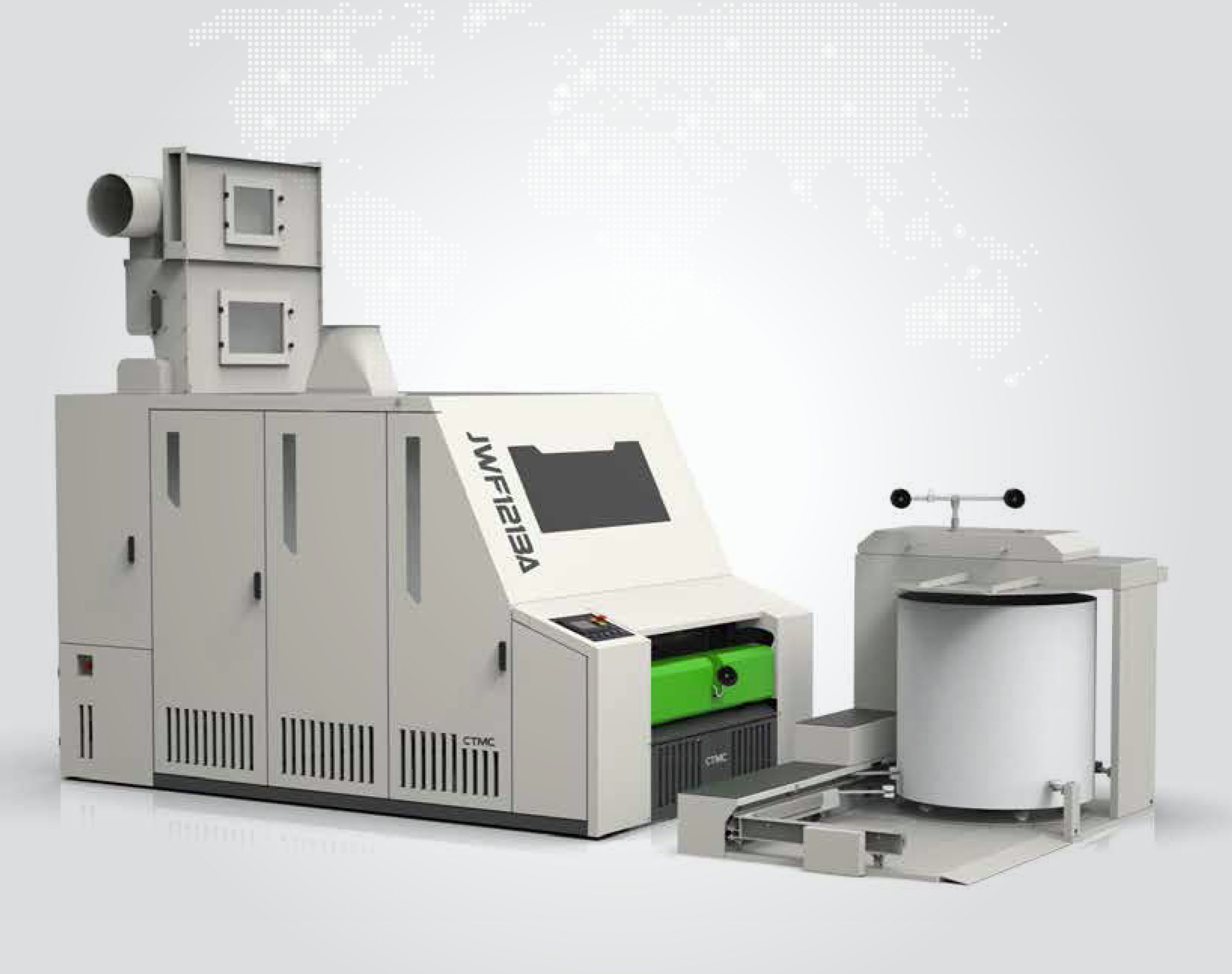

The JWF1213A is a high-yield, energy-saving carding machine designed to lead industrial upgrading in textile production. Featuring a 1300mm width design and a modular construction, it delivers a perfect balance between output quality and production capacity. This next-generation system integrates advanced detecting and protecting technologies to ensure stable, reliable, and continuous operation for professional spinning requirements.
Performance Metrics
Key Performance Indicators
160 kg/h
Max Actual Output
320 m/min
Max Delivery Speed
13.79 kW
Total Installed Power
Technical Specifications
Technical Parameters
| Parameter | Value |
|---|---|
| Working Width | 1280 mm |
| Fiber Length Application | 22-76 mm |
| Sliver Count | 3.5-10 g/m |
| Feed Weight | 400-1300 g/m |
| Total Draft | 38-370 |
| Cylinder Speed | 347-477 rpm |
| Doffer Speed | 4.3-84 rpm |
Mechanical Components
Component Dimensions
- Cylinder Diameter: 1288 mm
- Doffer Diameter: 706 mm
- Licker-in Diameter: 250 mm
- Revolving Flats: 30 working / 84 total
System Features
- Advanced System Features

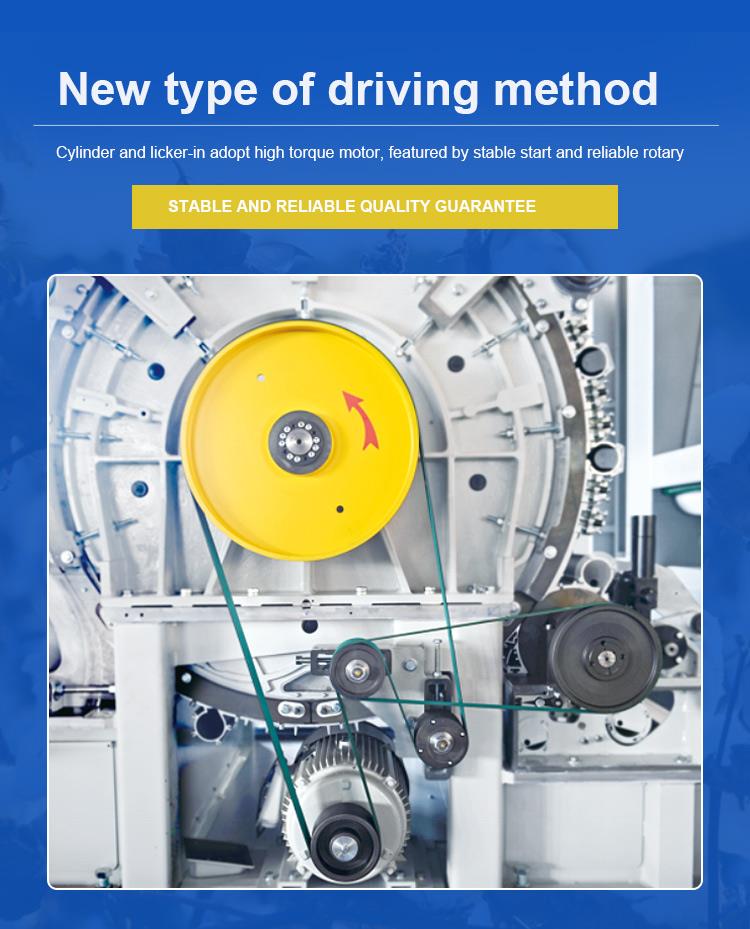

- Mixed Loop Auto-LevellerDust Filtering SystemModular DesignSliver-Cutting System6-Points GaugeCross Apron10 Independent Motor Drivers22 Suction Points
Operational Design
Design & Maintenance

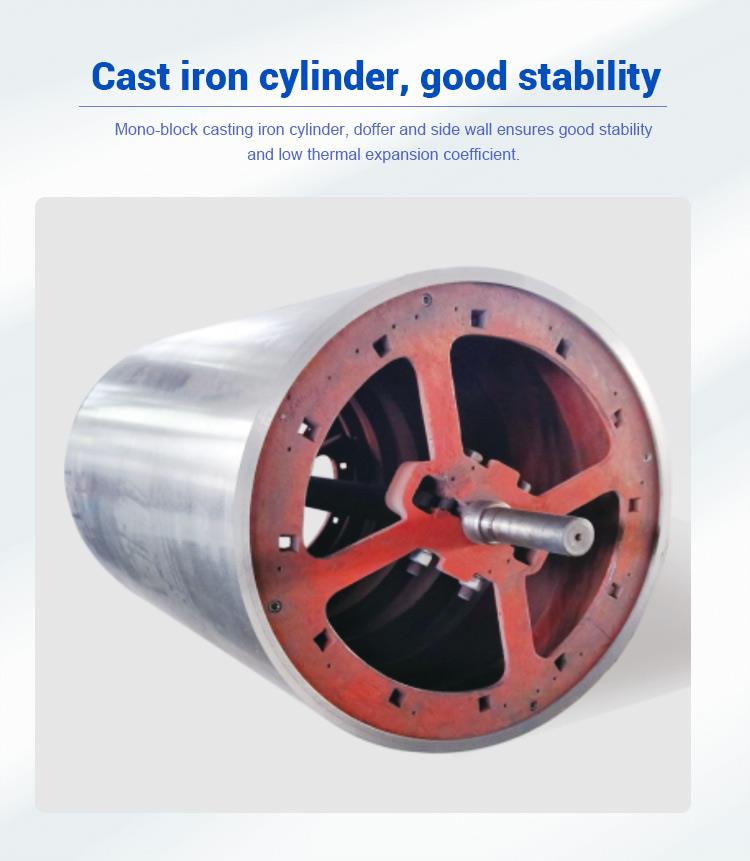

- Mono-block casting iron cylinder for low thermal expansion

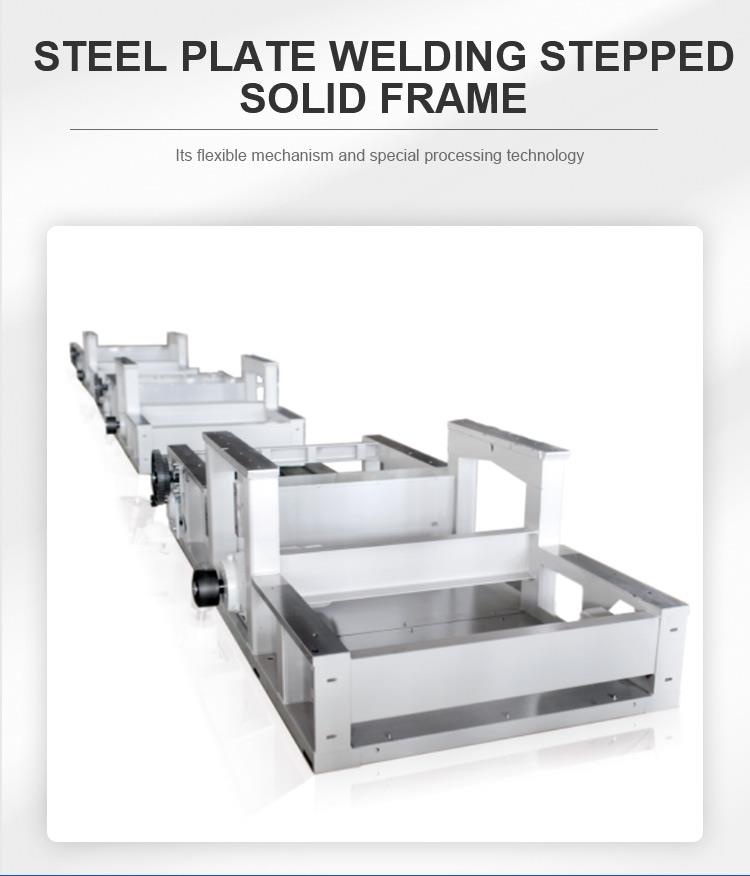

- Steel plate welding stepped solid frame for maximum stability

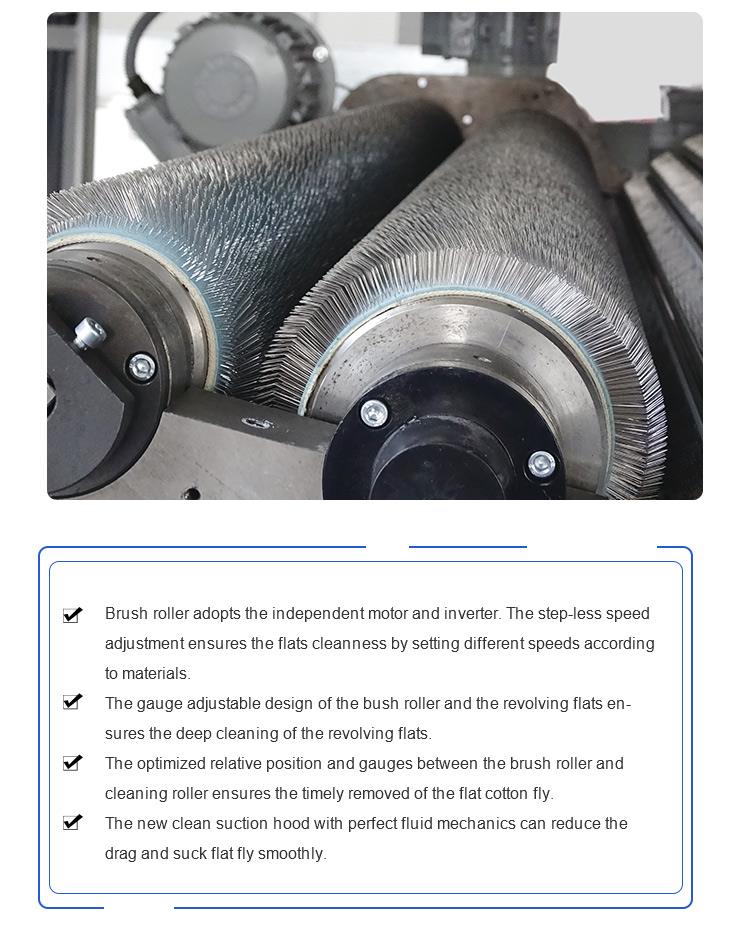

- Step-less speed adjustment for brush roller via independent inverter
- Totally enclosed structure safety covers

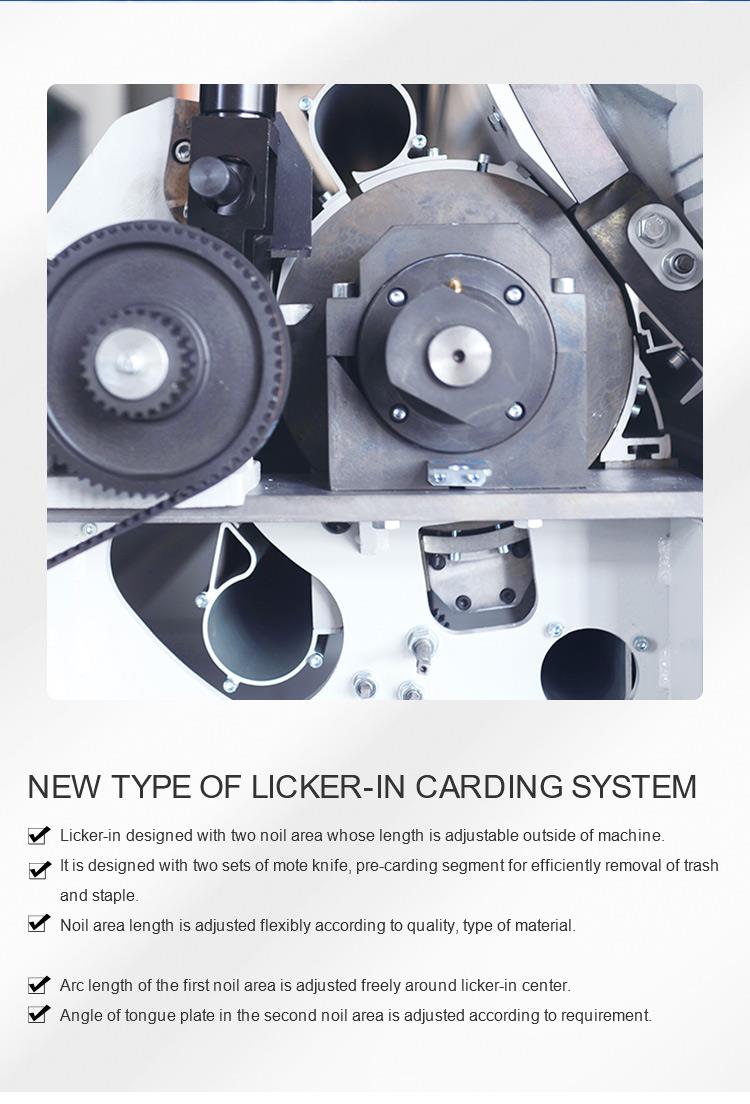

- Flexible noil area adjustment for different material types
Physical Requirements
Installation & Requirements
| Requirement | Specification |
|---|---|
| Space Requirement (LxWxH) | 5825 x 2480 x 3720 mm |
| Approx. Net Weight | 8000 kg |
| Compressed Air Consumption | 0.5 m³/h |
| Continuous Air Suction Volume | 4200 m³/h |
Compliance & Quality
Quality Standards
ISO 9001:2015ISO 14001:2015ISO 45001:2018
