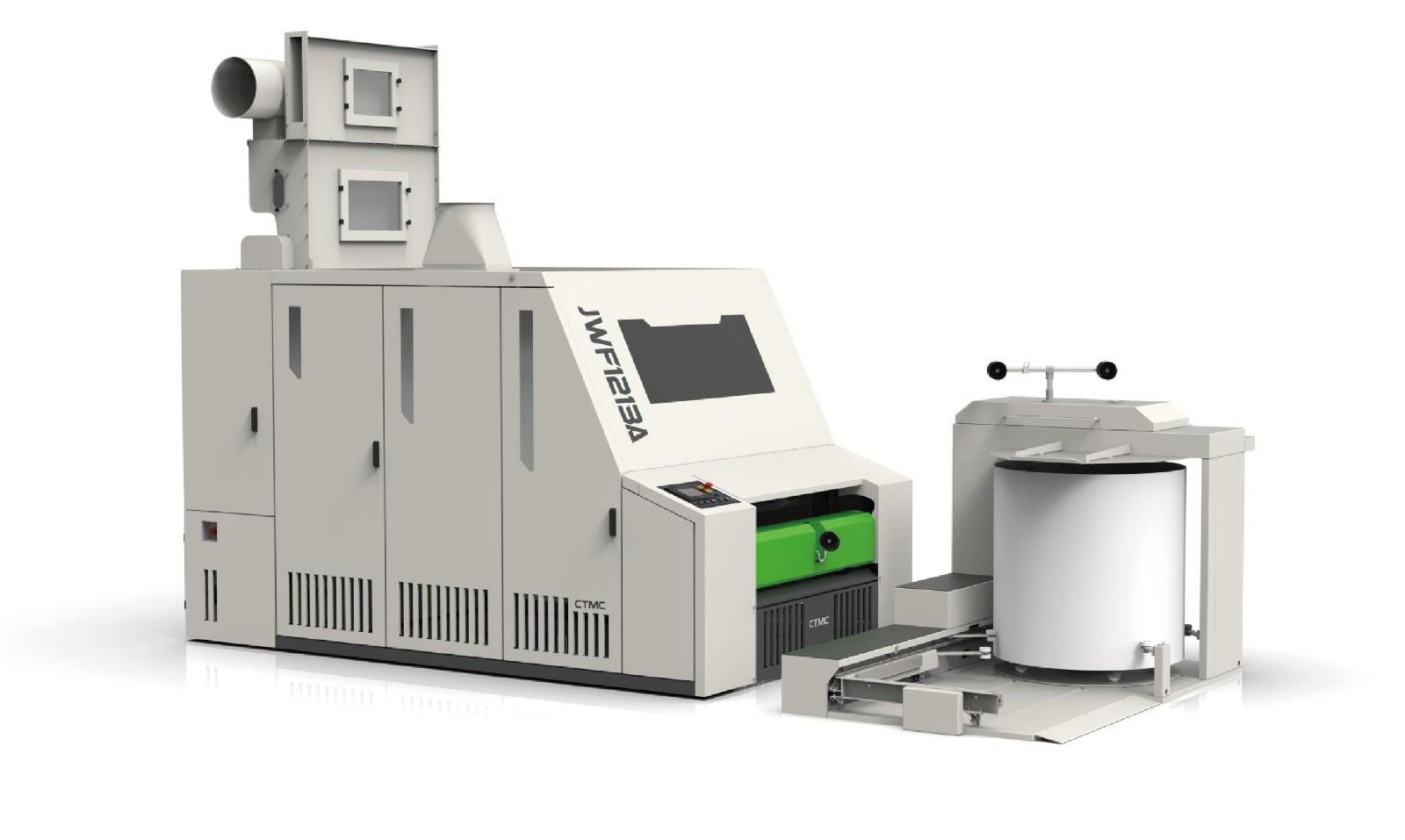

Carding Machine for Cotton and Chemical Fibers
This carding machine is designed for processing cotton and chemical fibers. It ensures efficient fiber alignment and removal of impurities, leading to high-quality yarn production.
Technical Specifications
Overview
High-Efficiency Carding System
This advanced carding machine is engineered for high-performance processing of cotton, chemical fibers, and blends. Featuring a robust, modular design, it ensures stable and reliable quality while maintaining high production efficiency. The system incorporates intelligent auto-levelling, precision dust filtering, and high-speed sliver cutting to meet the demands of modern textile manufacturing environments.
Key Features
- Core Advantages
- High EfficiencyAuto-Leveller SystemModular DesignDust FilteringHigh-Speed ProcessingEnergy-Saving
Technical Specifications
Performance Metrics
160 kg/h
Max Actual Output
320 m/min
Max Delivery Speed
1,280 mm
Working Width
13.79 kW
Total Installed Power
Processing Capabilities
| Parameter | Range/Value |
|---|---|
| Fiber Length | 22-76 mm |
| Sliver Count | 3.5-10 g/m |
| Feed Weight | 400-1300 g/m |
| Total Draft | 38-370 |
Key Component Specifications
- Licker-in Diameter: 250 mm
- Doffer Diameter: 706 mm
- Cylinder Diameter: 1288 mm
- Cylinder Speed: 347-477 r/min
- Revolving Flats: 30 working / 84 total
Utility & Environmental
- Compressed Air Pressure: 6-7 bar
- Compressed Air Consumption: 0.5 m³/h
- Air Suction Volume: 4200 m³/h
- Static Pressure Exit: -800 Pa
Design & Construction
Design Highlights

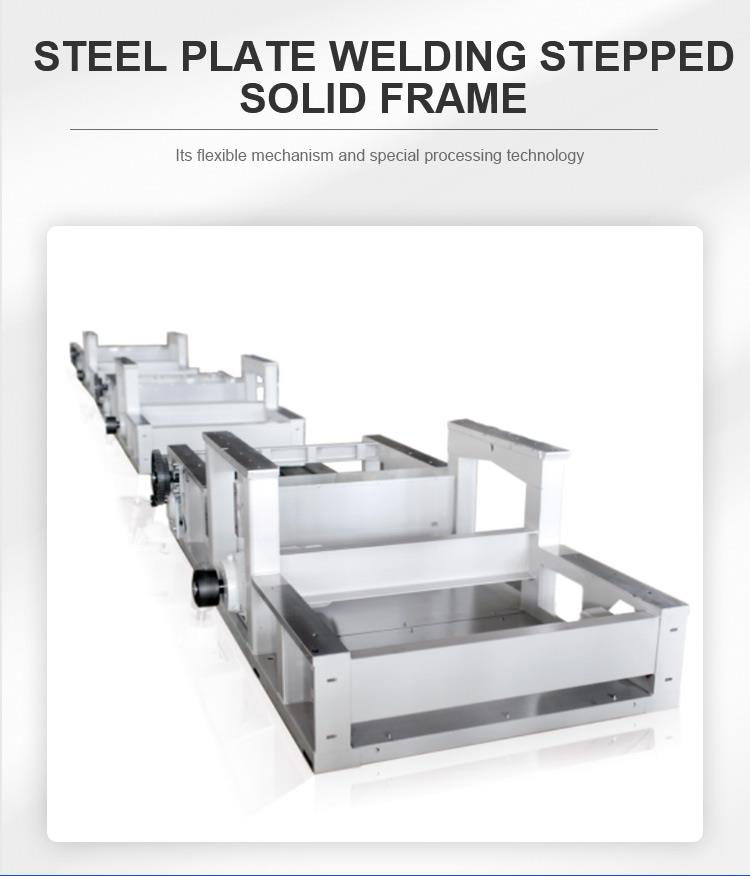

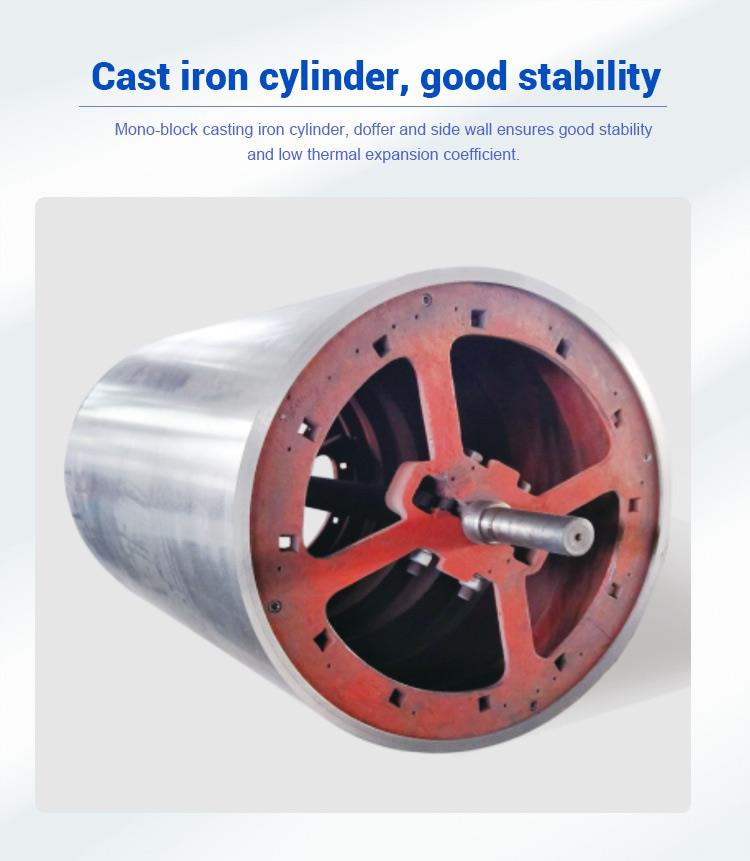

Mono-block Cast Iron CylinderSteel Plate Welded FrameTotally Enclosed Safety CoversModular Maintenance Access
