Heavy-Duty Dump Truck
This dump truck is a robust vehicle designed for heavy-duty material transport. Its sturdy chassis and powerful engine ensure reliable performance in demanding environments.

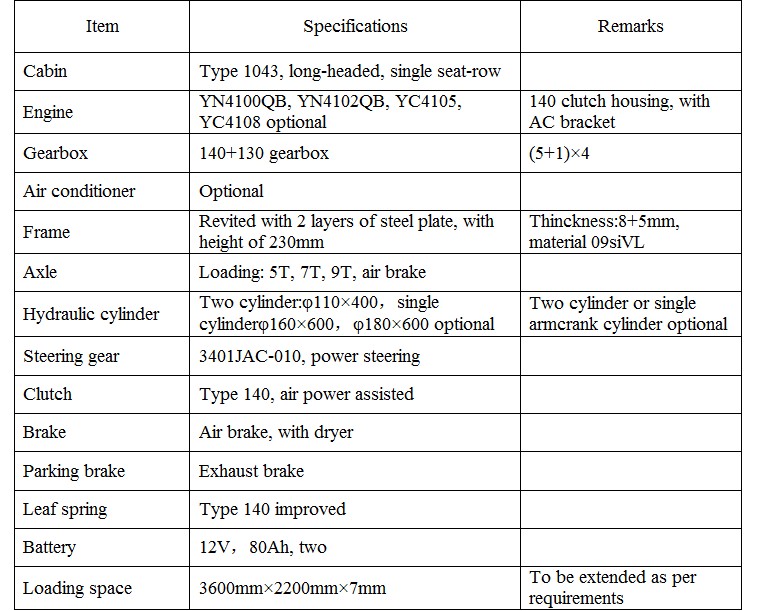

Technical Specifications
Overview
Robust Heavy-Duty Performance
The QJ5820PD dump truck is a versatile vehicle engineered for demanding environments such as mining, construction, and agriculture. It features a sturdy chassis and a high-torque diesel engine, ensuring reliable power and performance under load. With a spacious, customizable cargo bed and a reinforced suspension system, this truck provides a durable and cost-effective solution for heavy-duty material transport.
Engine & Drivetrain
- Engine Options
- YN4100QBYN4102QBYC4105YC4108
- Gearbox Model
- 140+130
- Clutch Type
- Type 140, air power assisted
Chassis & Frame
Frame Dimensions
230 mm
Frame Height
13 mm
Total Thickness
- Frame Construction
- Riveted, 2 layers of steel plate, 09siVL material
- Leaf Spring
- Type 140 improved
Cargo & Hydraulics
Hydraulic Cylinder Configuration
- Two cylinders (φ110×400)
- Single cylinder (φ160×600)
- Single cylinder (φ180×600 optional)
- Arm crank cylinder optional
- Cargo Bed Dimensions
- 3600mm x 2200mm x 7mm (extendable)
Cabin & Electrical
- Cabin Type
- Type 1043, long-headed, single seat-row
- Battery System
- 12V, 80Ah (two-battery system)
- Air Conditioning
- Yes
Performance Metrics
Axle Loading Capacities
5T7T9T
Braking System
- Air brake with dryer
- Exhaust brake (parking)
