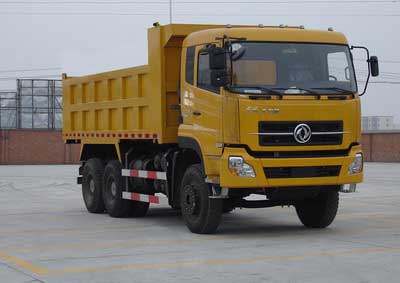

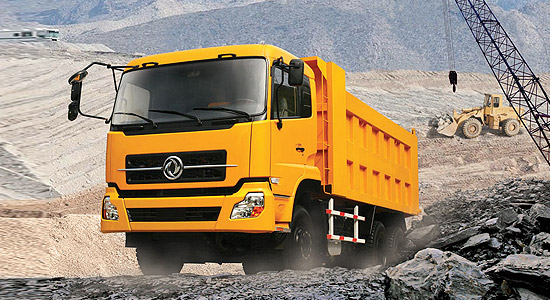

6x4 Heavy-Duty Dump Truck
This 6x4 heavy-duty dump truck is designed for transporting bulk materials in construction and mining operations. It features a robust chassis and a high-capacity tipping body.
Technical Specifications
Overview
Heavy-Duty 6x4 Dump Truck
This 6x4 heavy-duty dump truck is engineered for demanding environments such as construction and mining operations. Featuring a robust chassis and a powerful diesel engine, it is designed to transport bulk materials like sand, gravel, and construction debris with high efficiency. With an impressive payload capacity and a durable hydraulic tipping mechanism, this vehicle offers the reliability and performance required for intensive hauling tasks.
Performance & Engine
Engine Specifications
340 hp
Horsepower
8,900 ML
Displacement
85 km/h
Max Speed
35 %
Max Grade Ability
- Engine Details
- Water-cooled 6-cylinder in-line diesel engine with medium cooling and supercharge, compliant with Europe III emission standards.
Dimensions & Capacity
Vehicle Dimensions
| Parameter | Value |
|---|---|
| Overall Dimensions | 8690 x 2500 x 3450 mm |
| Body Internal Dimensions | 6000 x 2300 x 1500 mm |
| Wheelbase | 4250 + 1350 mm |
Weight Metrics
11,955 kg
Equipment Mass
24,050 kg
Load Mass
Chassis & Drivetrain
Chassis Specifications
- Clutch: 430mm diaphragm
- Tyre Specification: 12.00-20
- Approach Angle: 30°
- Departure Angle: 20°
- F/R Wheel Base: 2040/1850 mm
- F/R Suspension: 1500/1590 mm
