Heavy-Duty Cast Iron Woodworking Vise with Quick Release
This woodworking vise is made from heavy-duty cast iron, ensuring durability, and has precision-machined jaws for a strong hold. It is equipped with an adjustable front stop for diverse clamping options and a quick-release for fast operation.
Technical Specifications
Product Overview
Industrial-Grade Woodworking Performance
This heavy-duty woodworking vise is engineered from high-strength cast iron rated at 30,000 PSI to provide maximum stability for demanding workshop tasks. It features a versatile quick-release trigger mechanism for rapid adjustments, significantly improving workflow efficiency when clamping or releasing workpieces. Designed with an adjustable front stop, this tool functions seamlessly as both a standard vise and a tail vise, making it an essential addition to any professional woodworking setup.
Technical Dimensions
Core Dimensions
10.5 inch
Jaw Width
15 inch
Jaw Opening
4 inch
Throat Depth
- Material & Construction
- Cast Iron30,000 PSI Tensile StrengthZinc Plated ScrewPrecision Machined
Features
Key Functionality
- Quick-release trigger for rapid clamping adjustments
- Adjustable front stop (dog) for dual-purpose operation
- Fused tommy bar safety mechanism designed to bend before over-stressing
- Dual predrilled mounting holes for secure workbench installation

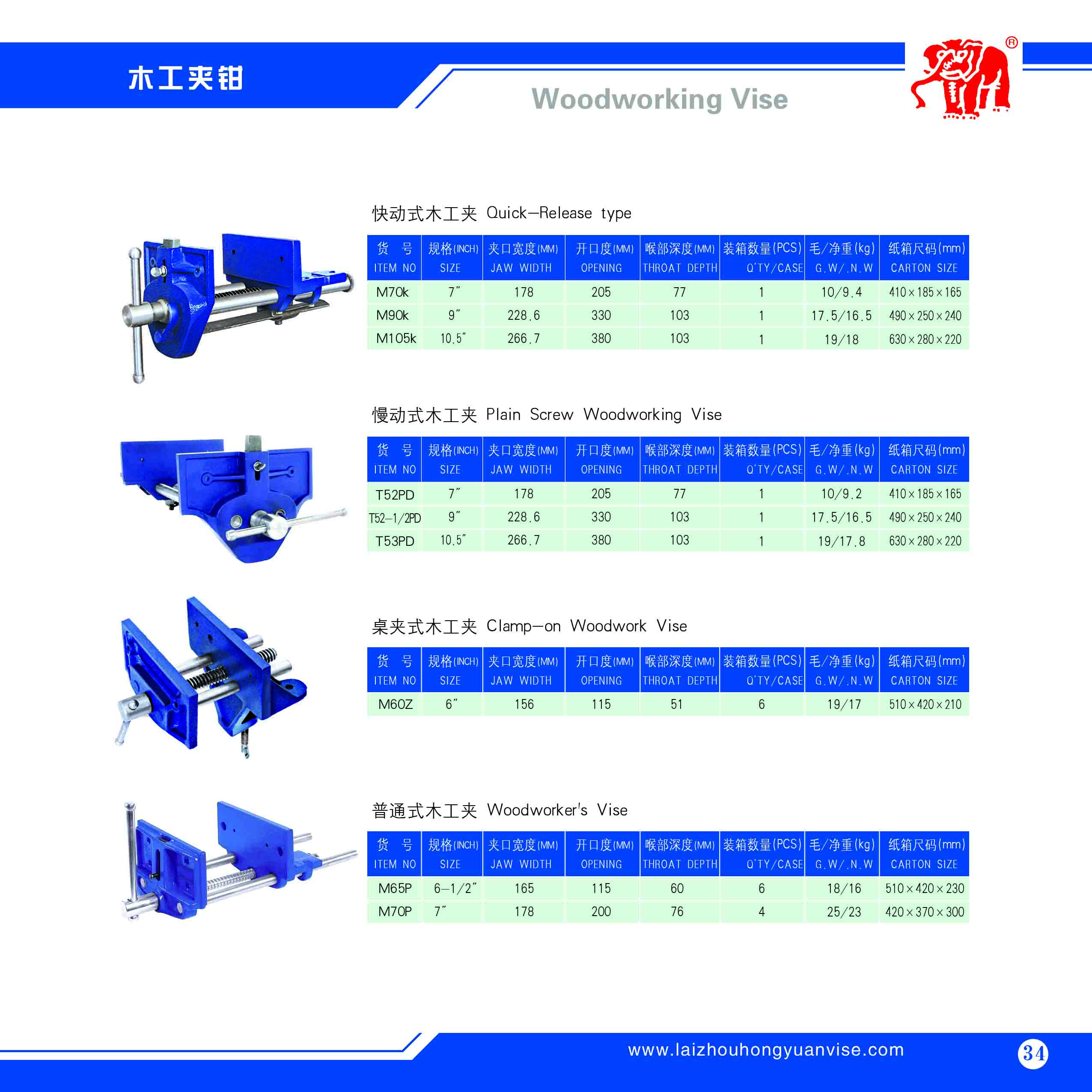

Model Specifications
Size Variants
| Model | Jaw Width (mm) | Opening (mm) | Throat (mm) |
|---|---|---|---|
| M70k | 178 | 205 | 77 |
| M90k | 228.6 | 330 | 103 |
| M105k | 266.7 | 380 | 103 |
