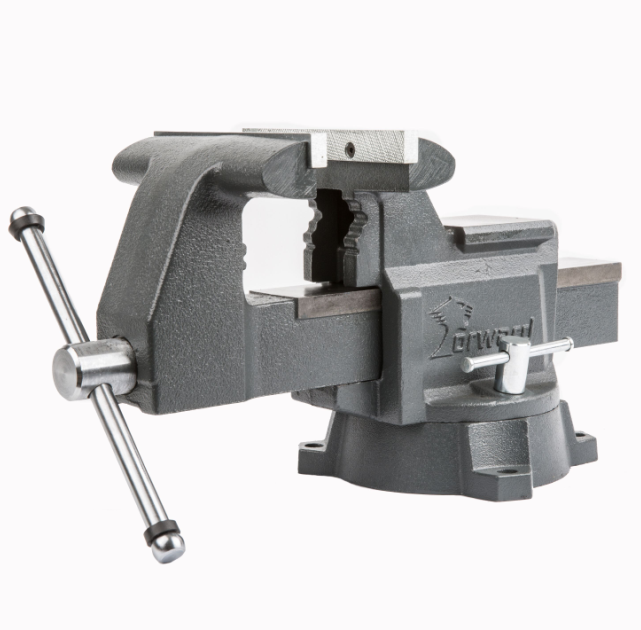

Industry Bench Vise with Swivel Base
This industry bench vise is designed for heavy-duty applications. It features a swivel base that allows for 360-degree rotation and secure clamping of various shapes and sizes.
Technical Specifications
Overview
Heavy-Duty Industrial Bench Vise
Engineered for both industrial and demanding DIY applications, this bench vise features a robust construction made from high-strength ductile iron with a 60,000 PSI rating. Its fully enclosed design protects internal mechanisms from dirt, water, and rust, ensuring long-term reliability in workshop or outdoor environments. Equipped with a large anvil and versatile swivel base, it provides the stability and flexibility required for grinding, cutting, and precision clamping tasks.

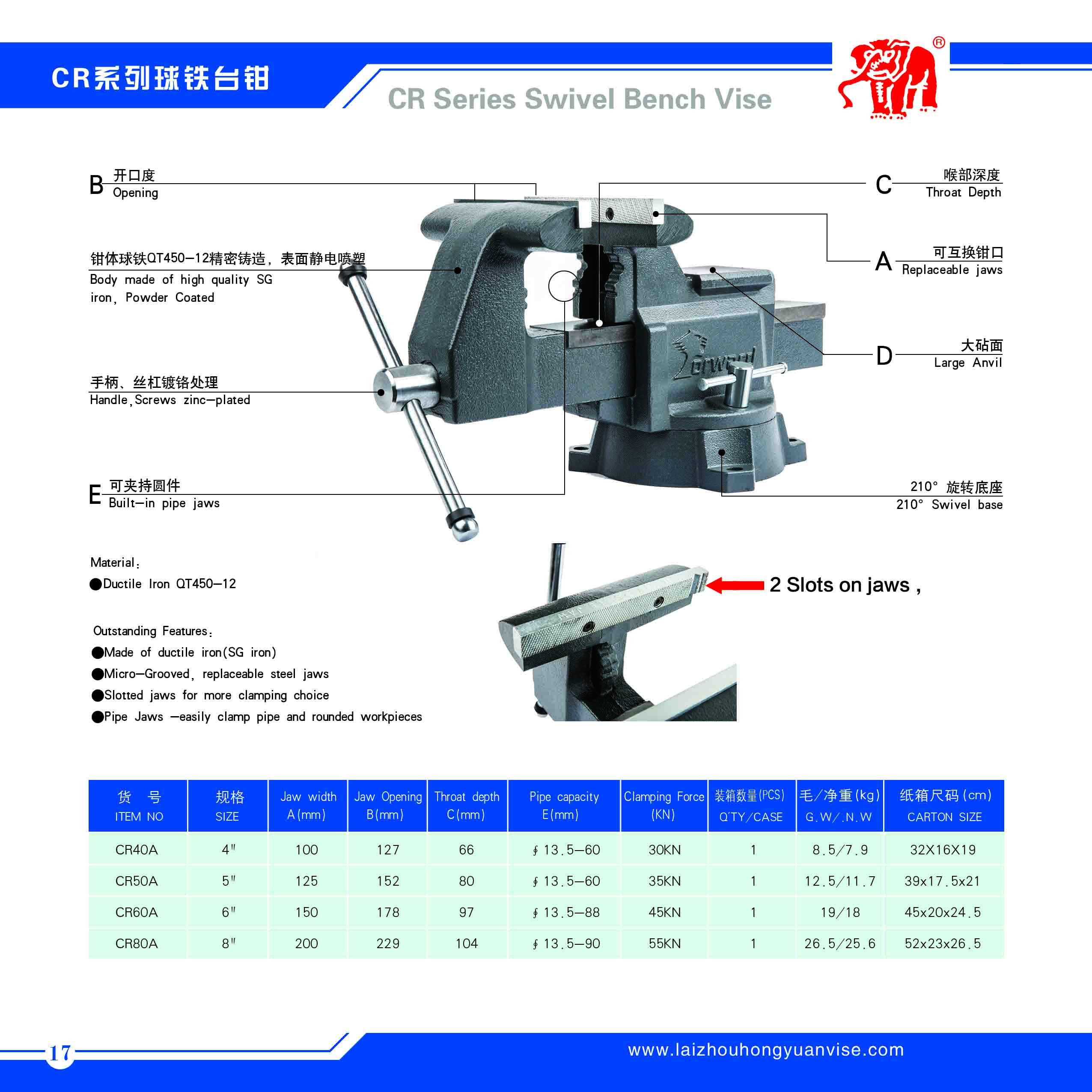

Technical Specifications
Clamping Force
45 KN
Clamping Force
Jaw Dimensions
| Specification | Value |
|---|---|
| Jaw Width | 150 mm |
| Jaw Opening | 178 mm |
| Throat Depth | 97 mm |
- Pipe Clamping Range
- 13.5 - 88 mm
Construction & Materials
- Material
- Ductile Iron (QT450-12)
- Surface Finish
- Powder Coated
- Key Features
- Swivel BaseLarge AnvilCorrosion ResistantReplaceable Steel JawsEnclosed Mechanism
Logistics
Weight
- Gross Weight: 19 kg
- Net Weight: 18 kg
- Carton Dimensions
- 45 x 20 x 24.5 cm
