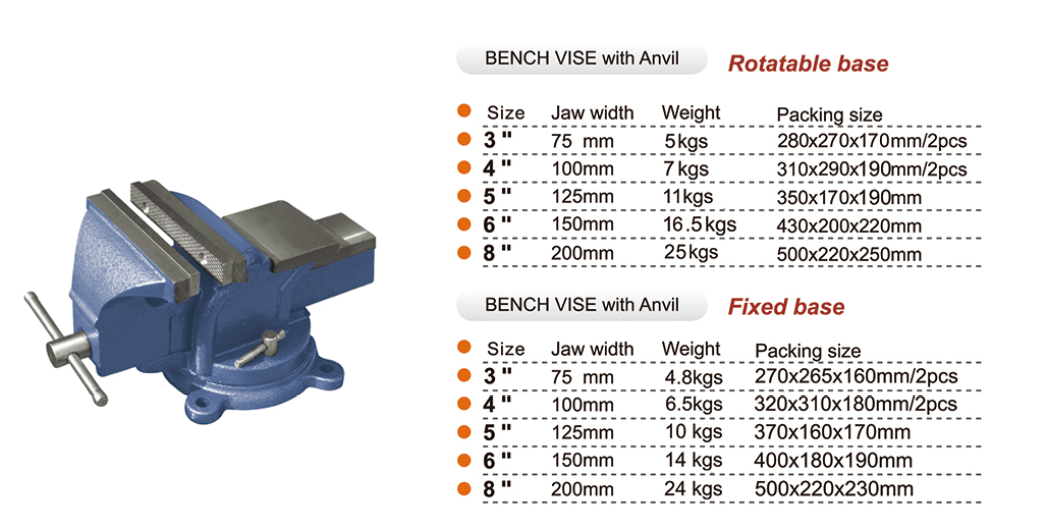

Heavy-Duty Bench Vise with Swivel Base
This heavy-duty bench vise is designed for secure clamping and holding of workpieces. It features a swivel base for versatile positioning and hardened steel jaws for enhanced grip.
Technical Specifications
Product Overview
Professional Grade Bench Vise
This heavy-duty bench vise is engineered for secure clamping and holding of workpieces in demanding environments. Constructed from robust cast iron, it features hardened steel jaws with a serrated pattern to ensure maximum grip and stability. With versatile options including both swivel and fixed base configurations, this tool is an essential addition for metalworking, woodworking, and general-purpose professional applications.
Key Features
- Core Attributes
- Heavy-Duty Cast IronHardened Steel JawsSerrated GripBuilt-in AnvilSwivel Base Option
Technical Specifications
Rotatable Base Specifications
| Size | Jaw Width | Weight | Packing Size |
|---|---|---|---|
| 3" | 75 mm | 5 kgs | 280x270x170mm/2pcs |
| 4" | 100 mm | 7 kgs | 310x290x190mm/2pcs |
| 5" | 125 mm | 11 kgs | 350x170x190mm |
| 6" | 150 mm | 16.5 kgs | 430x200x220mm |
| 8" | 200 mm | 25 kgs | 500x220x250mm |
Fixed Base Specifications
| Size | Jaw Width | Weight | Packing Size |
|---|---|---|---|
| 3" | 75 mm | 4.8 kgs | 270x265x160mm/2pcs |
| 4" | 100 mm | 6.5 kgs | 320x310x180mm/2pcs |
| 5" | 125 mm | 10 kgs | 370x160x170mm |
| 6" | 150 mm | 14 kgs | 400x180x190mm |
| 8" | 200 mm | 24 kgs | 500x220x230mm |
