Heat Shrinkable Skirt for Cable Termination
Heat shrinkable skirts are used for medium voltage termination up to 36kV. They increase creepage distance and scatter rain, and are suitable for outdoor use.
Technical Specifications
Overview
High-Performance Heat Shrinkable Skirt
Designed for medium voltage cable terminations up to 36kV, this heat-shrinkable skirt is engineered for reliable outdoor performance. It effectively increases creepage distance and provides superior protection against rain, moisture, and environmental contaminants. Constructed with advanced polymeric materials, it offers excellent UV and weather resistance, ensuring long-term mechanical and electrical integrity in harsh conditions.
Key Features
- Performance Features
- Anti-trackingCorrosion ResistantUV ResistantWeather ResistantOutdoor Rated
Technical Specifications
Operating Temperature
-40 °C
Min Temperature
110 °C
Max Temperature
Color Standard
Red
- Max Voltage Rating
- 36 kV

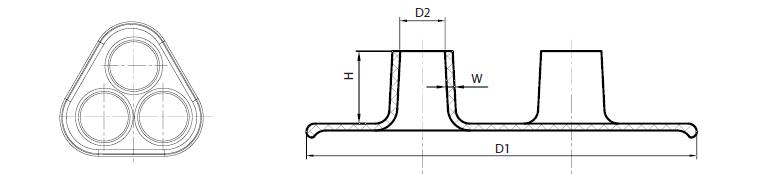

Dimensions
Size Specifications
| Type | D1 (Nom) | D2 (Min) | D2 (Max) | H (Nom) | W (±10%) |
|---|---|---|---|---|---|
| MCES3 50/18 | 140 | 50 | 18 | 25 | 2.5 |
| MCES 37/14 | 85 | 37 | 14 | 20 | 2.5 |
| MCES 50/21 | 95 | 50 | 21 | 25 | 2.5 |
| MCES 67/28 | 112 | 67 | 28 | 30 | 2.8 |
