Cold Shrinkable Cable Termination Kit, Outdoor, Up to 15 kV
Cold shrink termination is suitable for up to 8.7/15(17.5)kV cables insulated with PVC, PE, and XLPE for outdoor applications. These products are fully tested in accordance with IEC 60502-4 and can be used for copper or aluminum alloy conductors.
Technical Specifications
Overview
Cold Shrinkable Termination Kit
This cold shrinkable cable termination kit is engineered for reliable outdoor applications on polymeric cables, including PVC, PE, and XLPE insulation. Designed for voltages up to 15 kV, it utilizes advanced silicone-rubber material that offers superior UV resistance, excellent hydrophobicity, and anti-tracking properties for a long service life. The system features pre-expanded components on an easy-to-remove spiral holdout, eliminating the need for heat sources or specialized tools during installation.
Technical Specifications
Standards Compliance

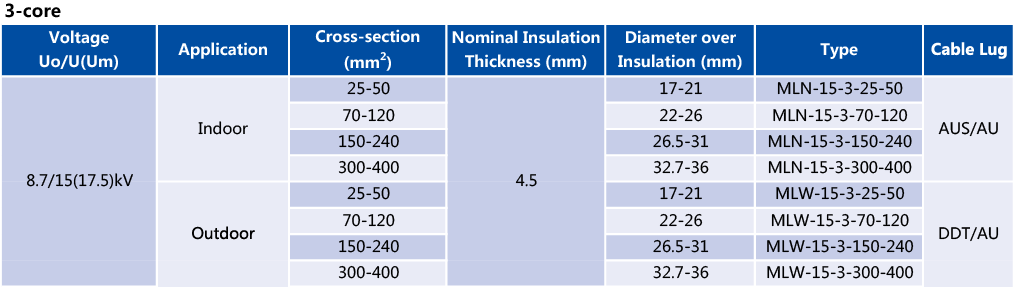

Sizing and Configuration
| Cross-section (mm²) | Insulation Diameter (mm) | Outdoor Type |
|---|---|---|
| 25-50 | 17-21 | MLW-15-x-25-50 |
| 70-120 | 22-26 | MLW-15-x-70-120 |
| 150-240 | 26.5-31 | MLW-15-x-150-240 |
| 300-400 | 32.7-36 | MLW-15-x-300-400 |
- Voltage Rating
- 8.7/15(17.5) kV
- Compatible Cable Types
- PVCPEXLPE
- Conductor Material
- CopperAluminium Alloy
Installation & Features
Key Features
- No heat or torches required
- Pre-expanded components on spiral holdout
- Integrated geometric stress control
- Void-filling mastic reduces positioning errors
- High UV-resistance and hydrophobicity
