Heat Shrinkable Right Angle Boot for Cable Termination
Heat shrinkable right angle boots are used for medium voltage applications up to 36kV. They provide protection against flashover and surge.
Technical Specifications
Product Overview
Heat Shrinkable Right Angle Boot
This heat shrinkable right angle boot is engineered to provide superior electrical insulation and mechanical protection for cable terminations. Designed for medium voltage applications up to 36kV, it effectively protects against flashover and surge events. The material offers excellent UV and weather resistance, ensuring long-term reliability even in harsh outdoor environments.
Performance & Features
- Voltage Rating
- 36 kV
- Operating Temperature
- -40°C to +110°C
- Color
- Red
- Key Features
- Anti-trackingUV ResistantWeather ResistantExcellent Insulation

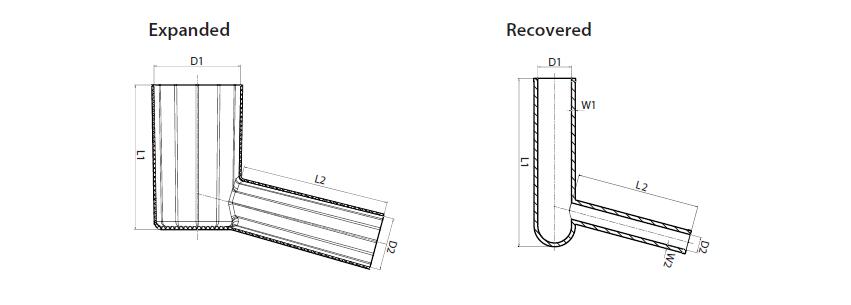

Dimensional Data
Dimensions (MRAB-80/36-50/18)
| Dimension | Expanded (mm) | Recovered (mm) |
|---|---|---|
| D1 | 80 | 36 |
| D2 | 50 | 18 |
| L1 | 100 | 110 |
| L2 | 115 | 80 |
| Wall Thickness (W1/W2) | 3.8 | 3.8 |
