Gigabit Ethernet GPON ONU
This GPON ONU is applicable to GPON and EPON networks and compatible with any FTTx PON technology. It provides a single Gigabit Ethernet port for connecting to user devices, enabling high-speed internet access and other IP-based services.

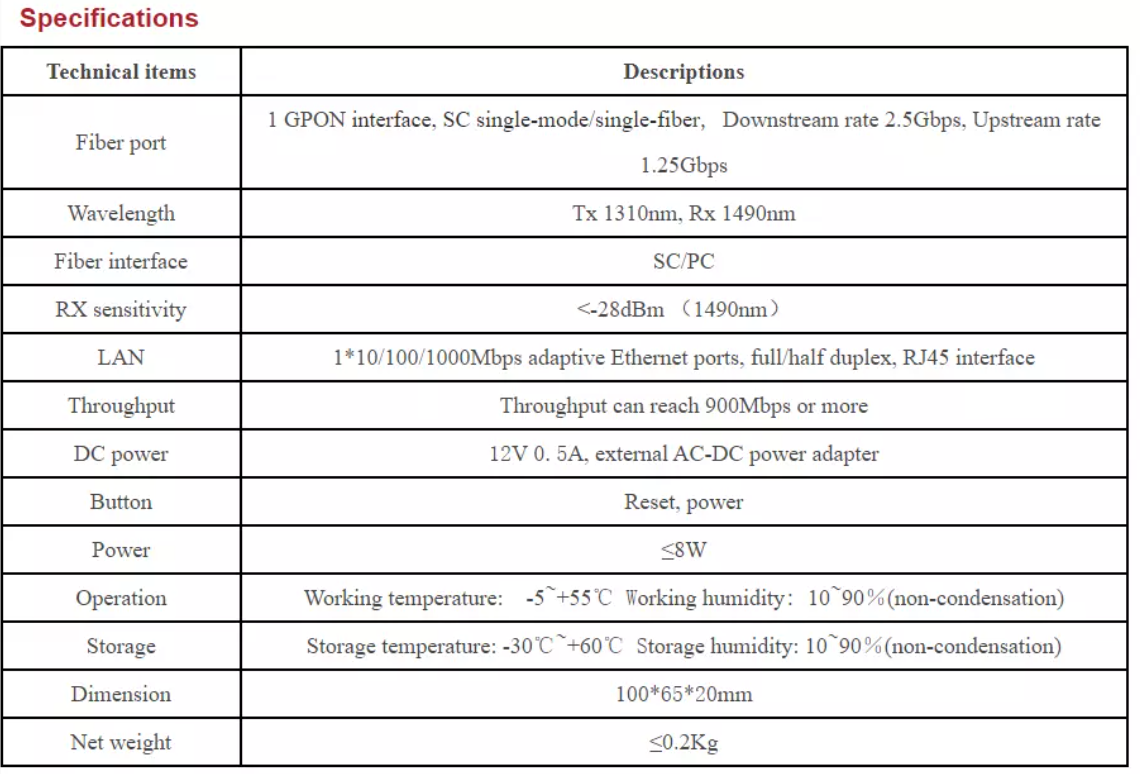

Technical Specifications
Product Overview
High-Performance Optical Network Unit
This Gigabit Ethernet GPON ONU is a high-performance optical network unit designed for fiber-to-the-home (FTTH) and small business applications. It provides a reliable 1GE interface, ensuring high-speed internet access and efficient data transmission. The device is fully compatible with major PON technologies and features plug-and-play functionality for easy deployment.
Performance & Connectivity
- Downstream Rate
- 2.5 Gbps
- Upstream Rate
- 1.25 Gbps
- Throughput
- ≥900 Mbps
- MAC Address Table
- 2048
Hardware Specifications
- Ethernet Interface
- 1 x 10/100/1000Mbps Adaptive RJ45
- Fiber Interface
- SC/PC Single-mode/Single-fiber
- Dimensions
- 100 x 65 x 20 mm
- Net Weight
- 0.2 kg
Power & Environment
- Power Consumption
- 8 W
- Operating Temperature
- -5°C to +55°C
- Operating Humidity
- 10% to 90% (non-condensation)
Features
- Key Features
- Plug and PlayAuto-detectionAuto-firmware upgradeAUTO MDIXFiber diagnostic monitoringQoS Support
