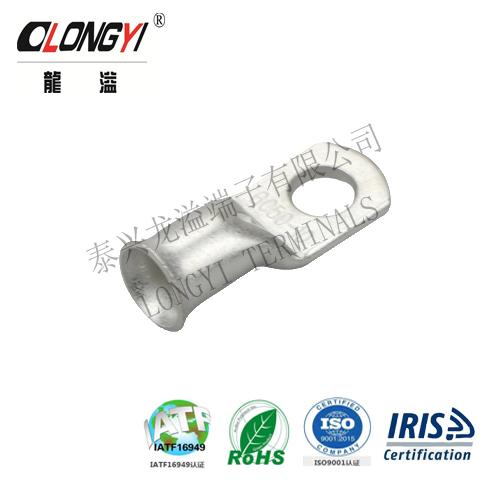

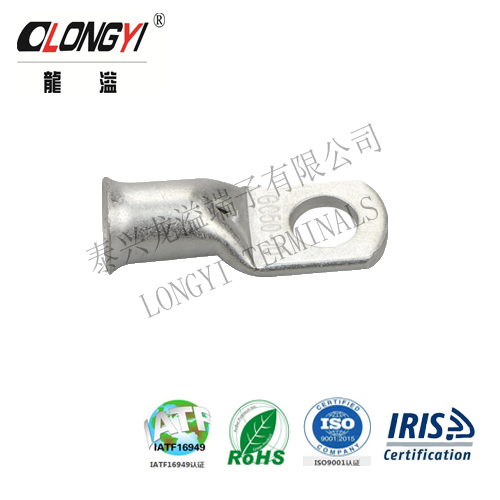

GC Copper Cable Lug Terminal
GC cable lugs are designed for connecting copper conductors in power cables to electronic equipment. They are constructed from 99.99% pure copper tube T2 and feature a tin coating.
Technical Specifications
Product Overview
High-Performance Copper Cable Lugs
These bell-mouth cable lugs are engineered for the reliable connection of copper conductors ranging from 10mm² to 400mm². Manufactured from 99.99% pure T2 copper tubing and finished with a durable tin coating, they offer excellent conductivity and corrosion resistance. Designed to withstand demanding environments, these terminals operate efficiently within a temperature range of -55°C to 150°C.
Technical Specifications
Operating Temperature
-55 °C
Min Temperature
150 °C
Max Temperature
- Material
- 99.99% Pure T2 Copper, Tin-coated
- Conductor Cross-Section
- 10 - 400 mm²
Compliance
Certifications & Standards
CEULJISDINAWG
Dimensional Data
Standard Dimensions
| Item No | φE | OD | D | L |
|---|---|---|---|---|
| GC1.5-3 | 3.2 | 3.7 | 8 | 16 |
| GC2.5-3 | 3.2 | 3.9 | 8 | 17 |
| GC4-4 | 4.3 | 4.7 | 10 | 21 |
| GC6-4 | 4.3 | 5.9 | 10 | 24.6 |
| A-GC10-4 | 4.3 | 6.6 | 11 | 30 |
| A-GC16-5 | 5.3 | 7.5 | 11 | 30.7 |
| A-GC25-5 | 5.3 | 9.1 | 13 | 32.2 |
| A-GC35-5 | 5.3 | 11 | 16 | 37.6 |
| A-GC50-5 | 5.3 | 12.4 | 18 | 41 |
| A-GC70-5 | 5.3 | 15 | 22.5 | 52.4 |
