Gas Insulated Cubicle Switchgear
This switch cabinet features separate chambers for bus bar, circuit breaker, cable, and instruments. Its spring vacuum circuit breaker mechanisms are compact.
Technical Specifications
Product Overview

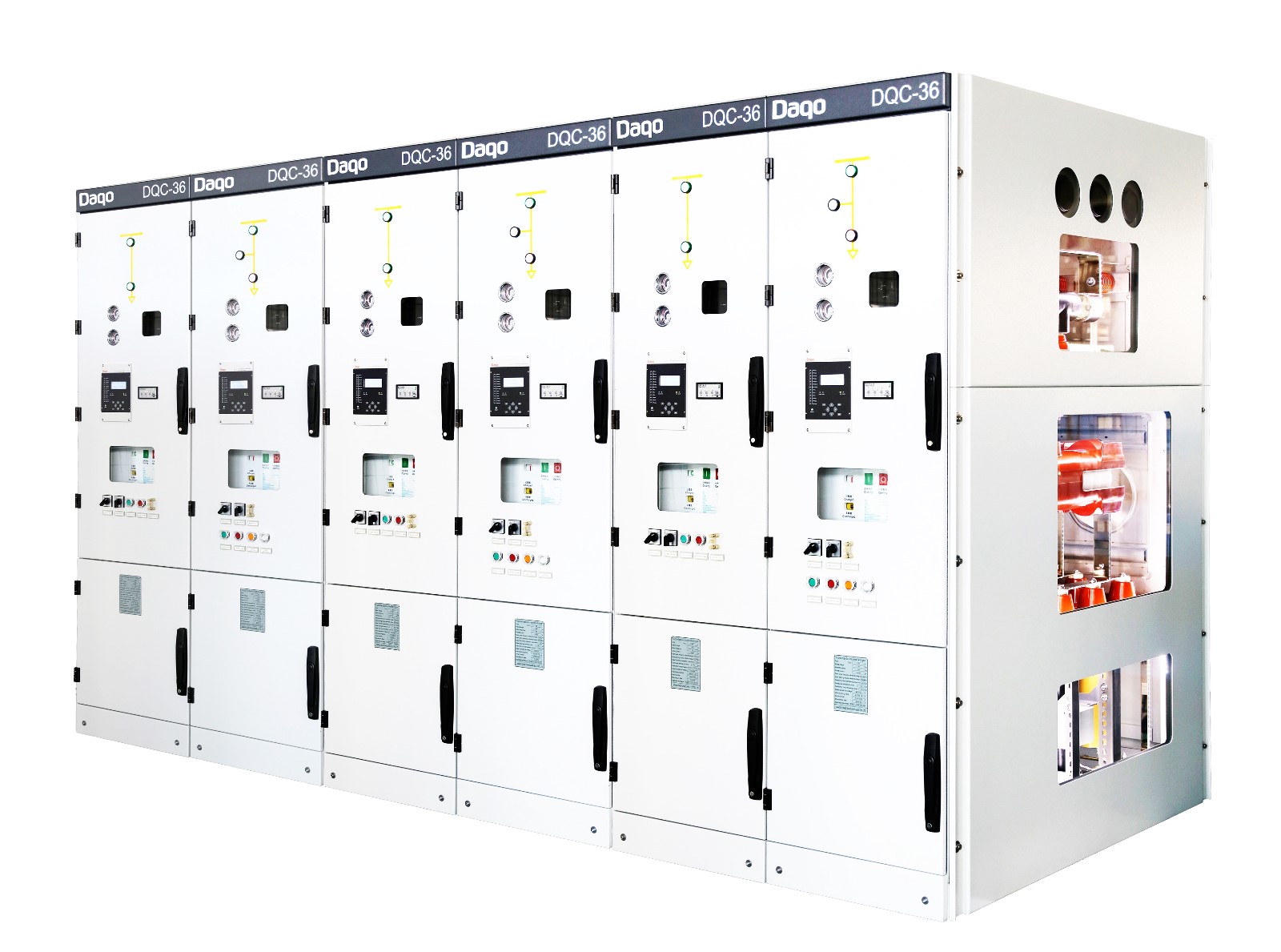

DQC-36 Series Switchgear
The DQC-36 series is an indoor cubicle-type gas insulated switchgear designed for medium-voltage power distribution. It incorporates advanced technologies including solid insulation, gas insulation, and VCB technology to ensure high reliability and minimal maintenance. This compact solution is engineered to meet the stringent requirements of power grids and metro systems.
Technical Standards
Certifications
TUV Certified
- Compliance Standards
- IEC 62271-100IEC 62271-200GB Standards
Key Features
Core Technologies
- Solid insulation technology
- Gas insulation technology
- VCB (Vacuum Circuit Breaker) technology
- He leak-check verification
Performance Highlights
36 kV
Rated Voltage
Application & Design
Design Advantages
- Compact, miniaturized footprint
- High dielectric strength
- Modular construction for flexible expansion
- Maintenance-free operation
- Target Applications
- Power GridsMetro SystemsIndustrial PlantsCommercial BuildingsSubstations
