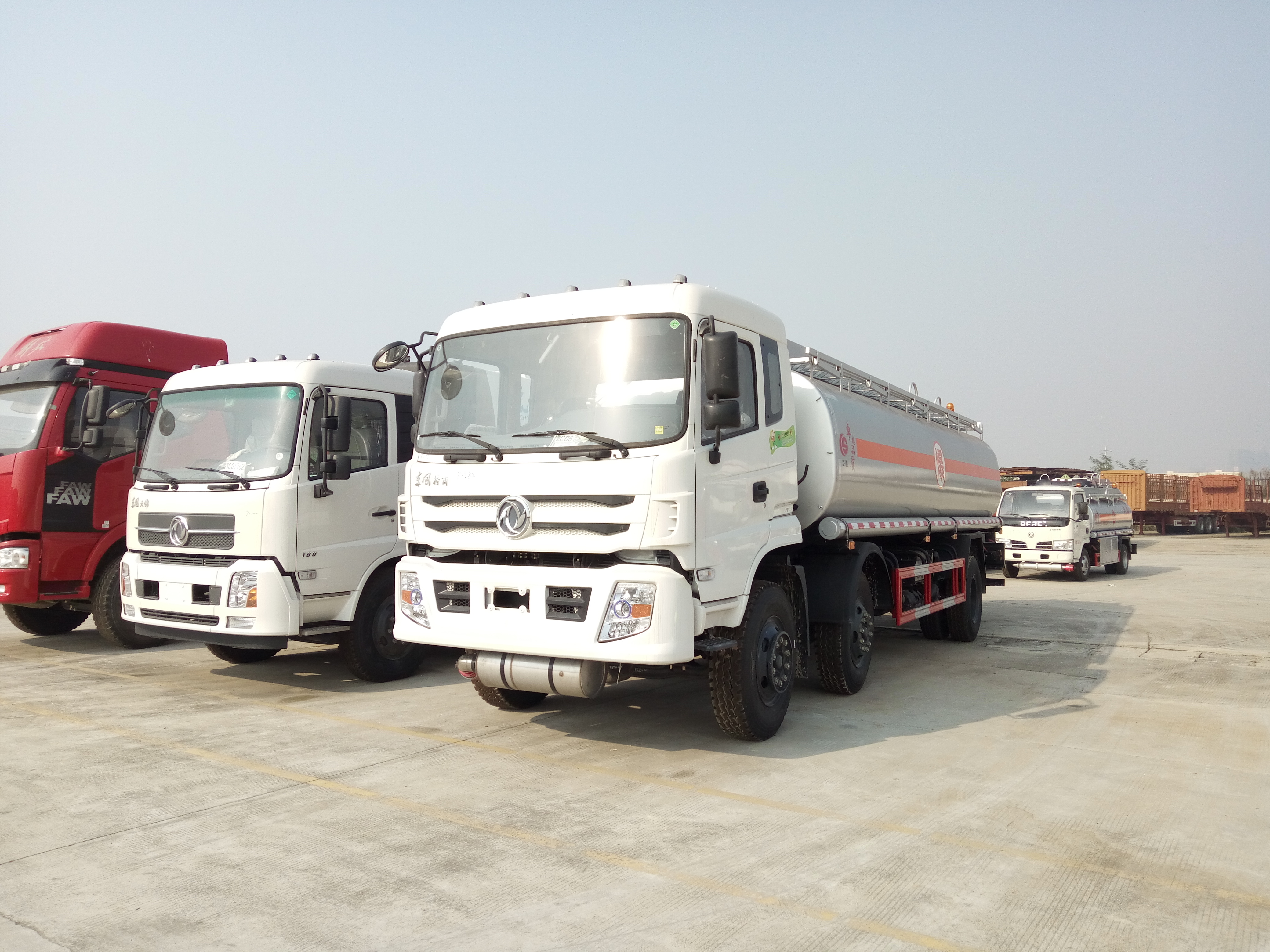

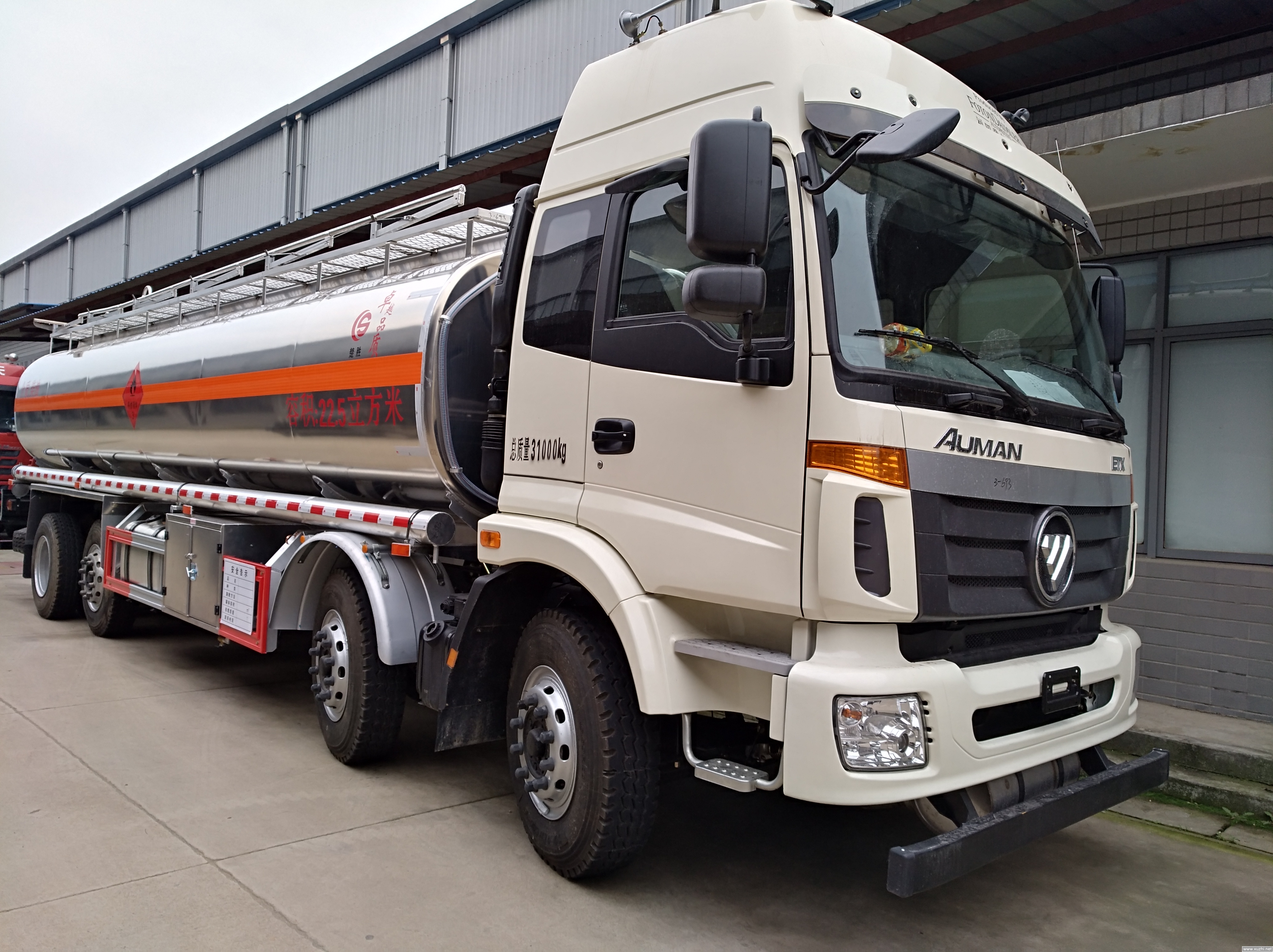

Fuel Tanker Truck
This heavy-duty fuel tanker truck is designed for transporting large volumes of liquid fuel. The tank is constructed from high-strength steel and includes pressure relief valves and emergency shut-off systems.
Technical Specifications
Overview
High-Capacity Fuel Transport Solution
This heavy-duty fuel tanker is engineered for the safe and efficient long-haul transport of liquid fuels. Constructed with a durable aluminum alloy tank shell and bulkhead, it offers an optimal balance of strength and weight capacity. Designed for professional logistics, the unit features advanced braking systems, multiple axles for stability, and customizable configurations to meet diverse operational needs.
Dimensions & Capacity
Loading Capacity
33,700 kg
Capacity Option 1
34,200 kg
Capacity Option 2
Tare Weight
- 6,300
- 5,800
- Overall Dimensions
- 12000 x 2500 x 3820 mm
- Body Dimensions
- 11550 x 2480 x 1950/2180 mm
Technical Specifications
Tank Construction
| Component | Thickness |
|---|---|
| Tank Shell | 5mm |
| Bulkhead and Baffle | 6mm |
Material
Aluminum Alloy
- Insulation Layer
- 75mm glass fiber cotton
Running Gear
- Axle Configuration
- 3 sets, 13 ton capacity per set
- Suspension System
- Mechanical suspensionLeaf springAir suspension
- Tire Specifications
- 12.00R22.5 12PR
Safety & Operation
Braking System
- ABS 4s/2M
- Type 30/30 spring brake system on all axles
- Landing Gear
- Two speed manual operation with sand shoe
