Technical Specifications
Overview
Advanced Fleet Fuel Management
The UM777 is a comprehensive GPS tracking solution designed for precision fuel, temperature, and weight monitoring. By integrating ultrasonic fuel sensors, it provides accurate real-time data on fuel consumption, leaks, and refueling events. With support for multiple sensors and wide-voltage power compatibility, this system is ideal for tankers and fleet owners seeking to optimize costs and prevent fuel theft through detailed analytics.
Technical Specifications
IP Rating
IP67 Waterproof
Communication Interfaces
- RS232
- RS485
- Network Support
- 4G3G2GGSM/GPRS 850/900/1800/1900 MHz
- Power Supply Range
- 100 V DC
Monitoring Capabilities
Supported Sensors
5 units
Fuel Sensors
4 units
Temp Sensors
- Supported Monitoring
- Fuel ConsumptionTemperatureWeightFuel Leak/Refuel
Safety & Features
Key Features
- Engine Immobilization
- Ignition Detection
- Shock Alert
- FOTA (Firmware Over-the-Air)
- Backup Battery
Advanced Options
Fatigue Driving MonitoringVehicle Collision AlarmHarsh Driving Alarm
Software Reporting
Available Reports
| Report Type | Insight Provided |
|---|---|

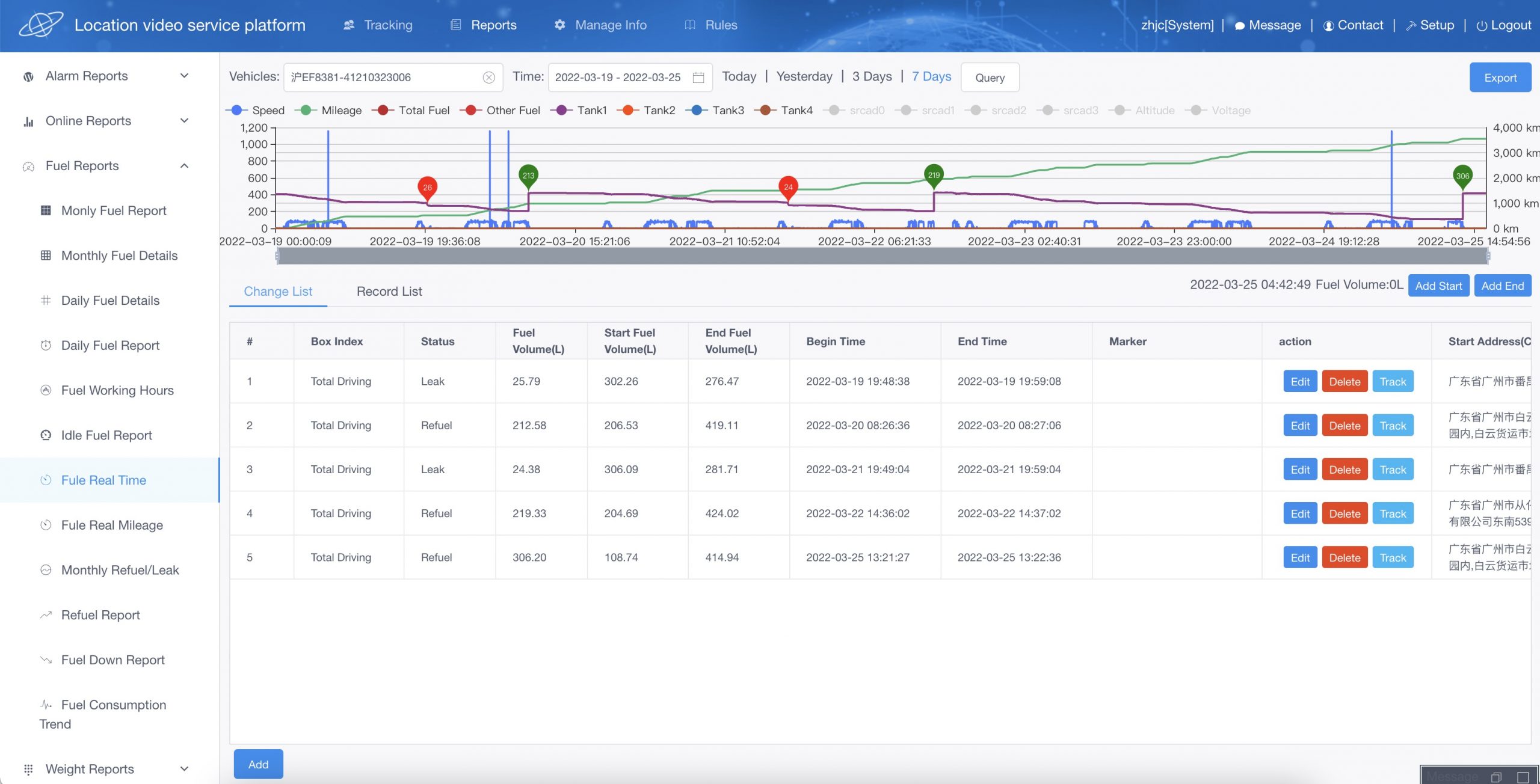

| Real-time Fuel | Consumption, location, and amount |

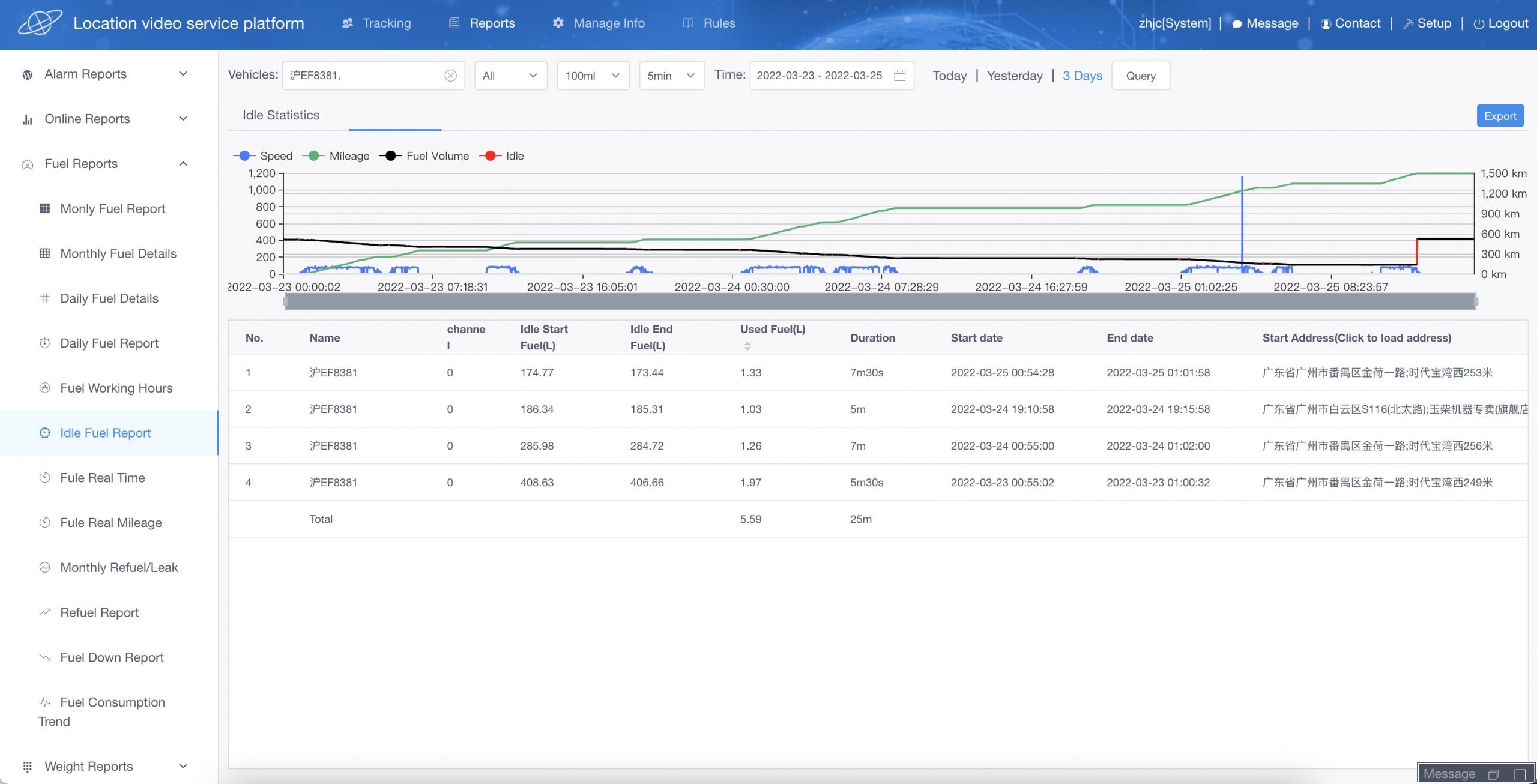

| Idle Fuel | Fuel used during idle state |

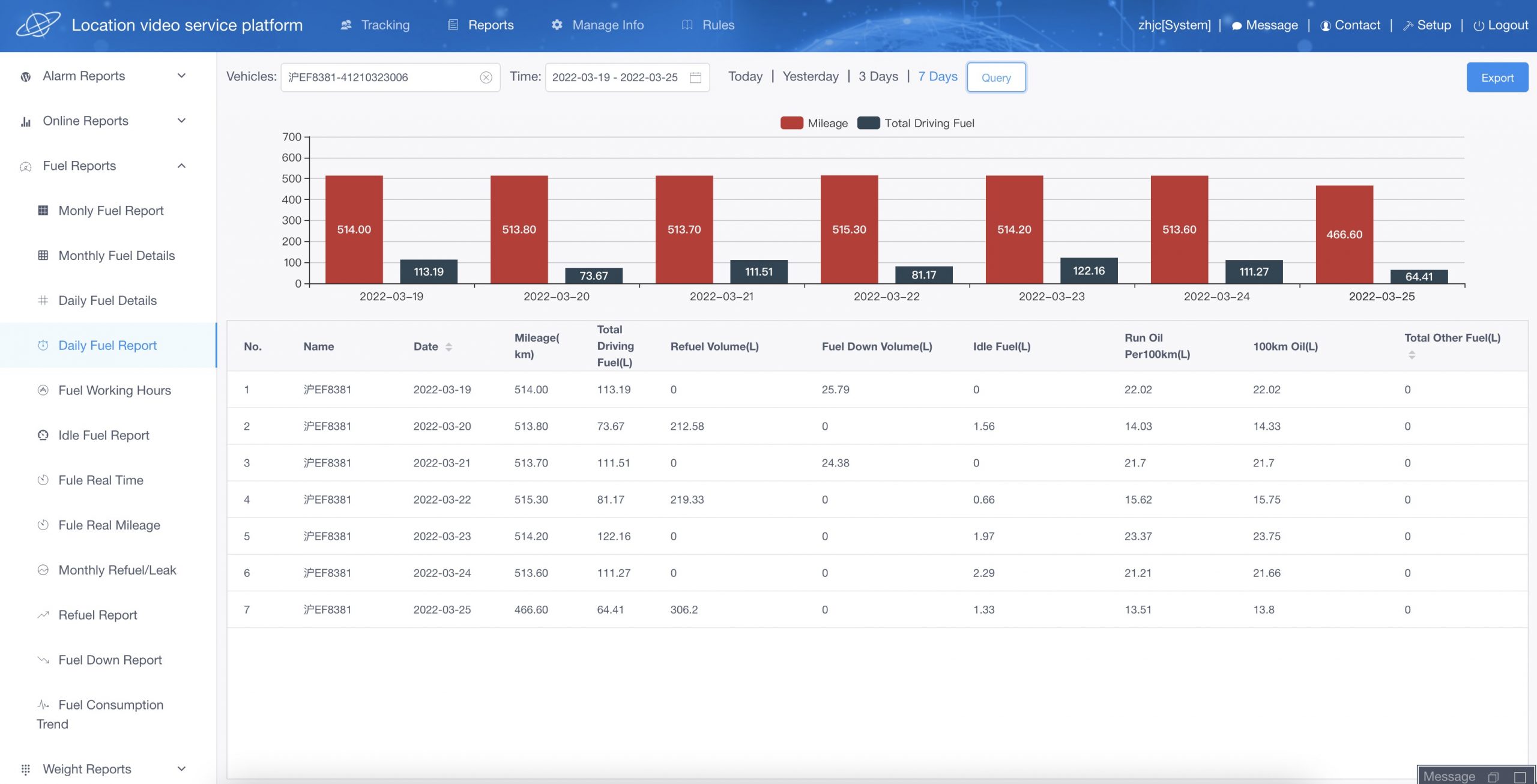

| Mileage Report | Fuel used vs distance travelled |
| Refuel/Leak | Detailed event logging |
