Technical Specifications
Overview

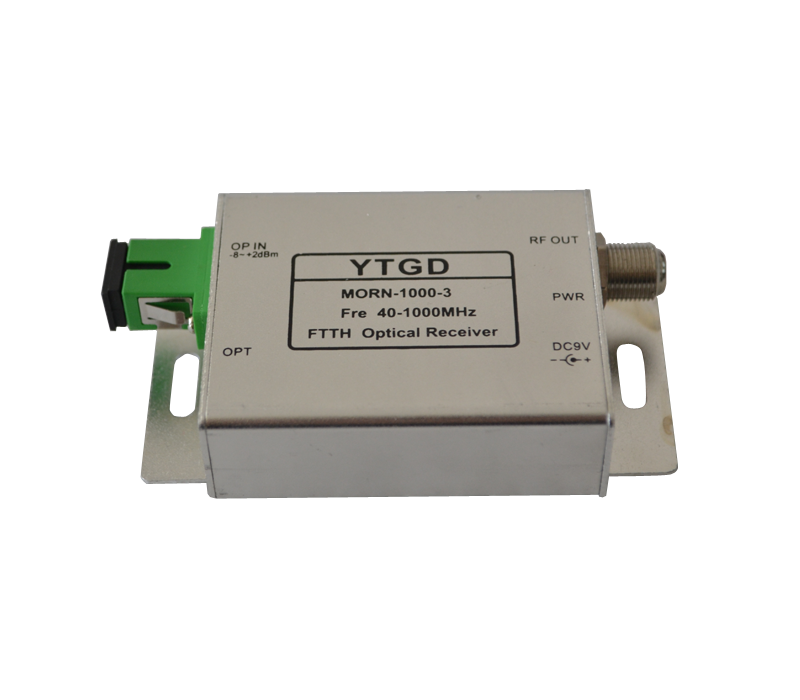

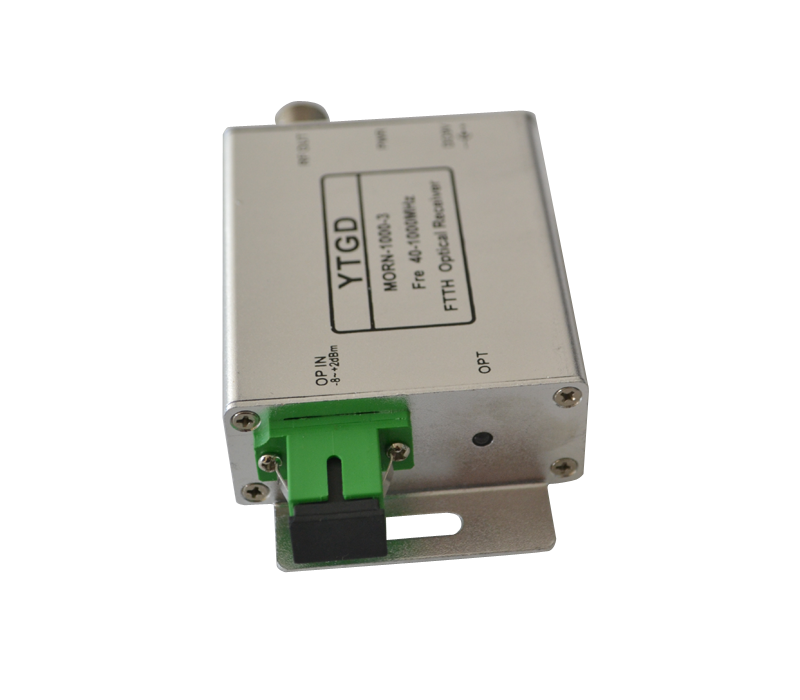

High-Performance FTTH Optical Receiver
This high-performance optical receiver is specifically designed for Fiber-to-the-Home (FTTH) CATV networks, efficiently converting fiber signals into radio frequency signals. Featuring Automatic Gain Control (AGC) and a durable tensile aluminum alloy shell, it ensures stable output levels and superior signal shielding. Its compact design and ability to handle both standard and ultra-low optical input power make it an ideal, cost-effective solution for delivering high-quality image, sound, and data services in broadband integrated networks.
- Key Features
- AGC (Automatic Gain Control)Single Fiber OperationAluminum Alloy ShellHigh ReliabilityBroadband Compatible
Optical Performance
Input Power Range
-8 dBm
Min Input
2 dBm
Max Input
Connector Compatibility
FC/APCSC/APC
- Wavelength Range
- 1100 ~ 1600 nm
- Optical Emission Loss
- 45 dB
Signal Quality
Link Parameter Performance
| Parameter | Minimum Value |
|---|---|
| C/N | ≥50 dB |
| C/CTB | ≥65 dB |
| C/CSO | ≥63 dB |
Technical Specifications
Attenuation Adjustment
- -10 dB
- -20 dB
Status Indicators
- Red Light: < -4 dBm
- Green Light: > -4 dBm
- Light On: Power Normal
- Frequency Range
- 40-1000 MHz
- Output Power
- 65 ~ 85 dBμV
- Power Supply
- 9 V DC
