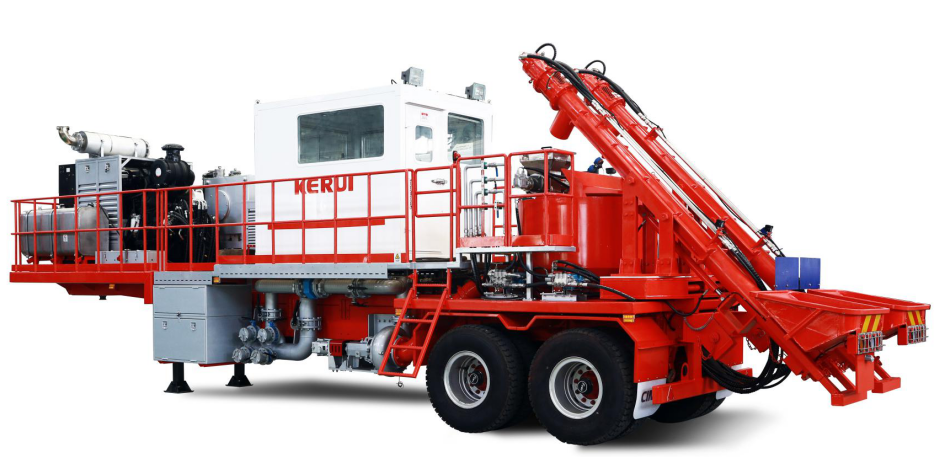

Frac Fluid Blender for Oil and Gas Extraction
The blender provides top-ranking performance, controllability, and stability. It successfully mixes frac fluid of different viscosity, ratio and density according to the fracturing technology to a very uniform level.
Technical Specifications
Overview

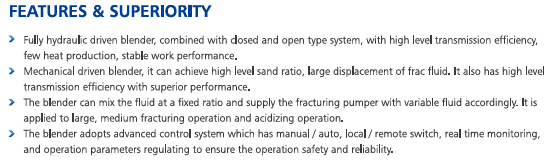

High-Performance Frac Fluid Blending
This industrial blender delivers top-ranking performance, controllability, and stability for oil and gas extraction operations. It is designed to mix fracturing fluids of varying viscosity, ratio, and density into a highly uniform mixture, supporting applications in sand prevention, fracturing, acidizing, and shale gas extraction. The unit features an advanced control system with real-time monitoring to ensure safety and reliability during large-scale field operations.
Performance Metrics
Max Displacement Range
10 m³/min
Min Displacement
38 m³/min
Max Displacement
- Max Working Pressure
- 0.7 MPa
- Mixing Tank Volume Range
- 1.4 m³ - 1.8 m³
Technical Capabilities
Drive System Options
- Fully hydraulic driven (closed and open type systems)
- Mechanical driven (high sand ratio and large displacement)
- Applications
- FracturingAcidizingSand PreventionShale Gas ExtractionCoal-bed Methane Extraction
Control & Safety
Control System Features
- Manual/Auto switching
- Local/Remote switch
- Real-time monitoring
- Operational parameter regulation
- Full-automatic mixing control

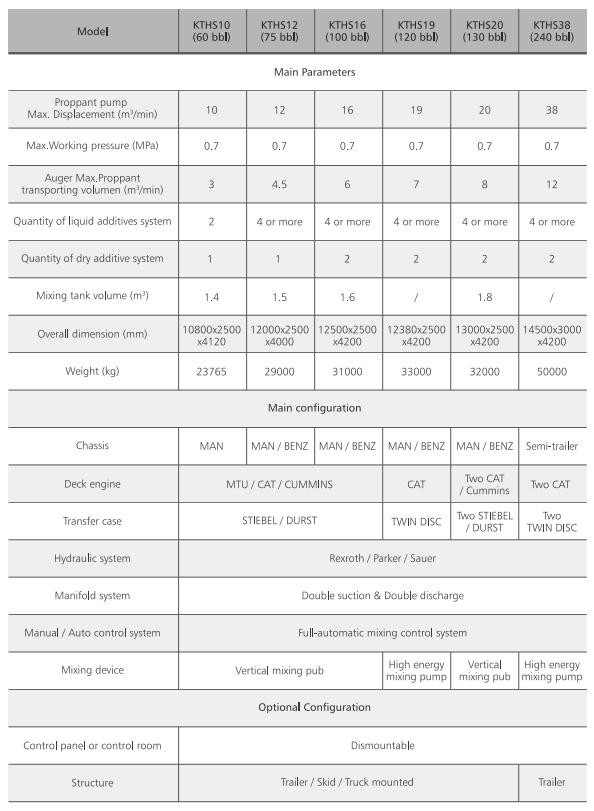

Model Specifications
Model Capacity & Dimensions
| Model | Capacity (bbl) | Auger Proppant Vol (m³/min) | Weight (kg) | Dimensions (mm) |
|---|---|---|---|---|
| KTHS10 | 60 bbl | 3 | 23,765 | 10800x2500x4120 |
| KTHS12 | 75 bbl | 4.5 | 29,000 | 12000x2500x4000 |
| KTHS16 | 100 bbl | 6 | 31,000 | 12500x2500x4200 |
| KTHS19 | 120 bbl | 7 | 33,000 | 12380x2500x4200 |
| KTHS20 | 130 bbl | 8 | 32,000 | 13000x2500x4200 |
| KTHS38 | 240 bbl | 12 | 50,000 | 14500x3000x4200 |
Configuration
Core Components

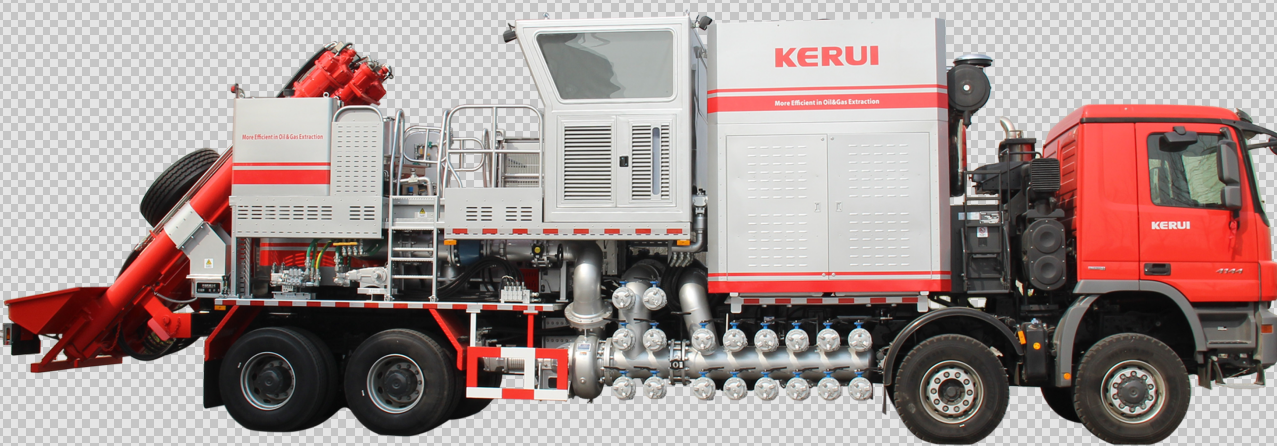

- Chassis: MAN / BENZ / Semi-trailer options
- Deck Engine: MTU / CAT / Cummins
- Transfer Case: STIEBEL / DURST / TWIN DISC
- Hydraulic System: Rexroth / Parker / Sauer
- Manifold: Double suction & Double discharge
Mounting Structures
Trailer MountedSkid MountedTruck Mounted
