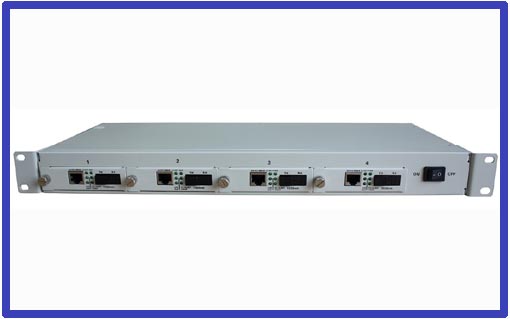

Four-Slot Rack Chassis Media Converter
This four-slot rack chassis accommodates up to four media converter cards. It provides SNMP network management function and full alarm displays for efficient network solutions, realizing 10/100Base-TX to 100Base-FX fiber conversion.
Technical Specifications
Overview
High-Density Rack Chassis
This four-slot rack chassis provides a reliable, centralized management solution for media conversion applications. Designed for standard 19-inch racks, it supports up to four hot-swappable media converter cards, offering flexible network configuration and redundancy. With SNMP network management and full alarm monitoring, it ensures high network availability and simplified maintenance for telecom-grade operations.
Technical Specifications
Key Features
Hot-swappableLFP (Link Failure Pass Through)Auto-negotiationVLAN Support
- Converter Slots
- 4
- Management Capabilities
- SNMPWeb-based ManagementRemote ManagementAlarm Display
- Supported Standards
- IEEE802.3IEEE802.3u10Base-TX100Base-TX100Base-FX802.1Q
- Dimensions
- 482mm (W) x 44mm (L) x 179mm (H)
Power & Environment
Operating Temperature
-10 °C
Min Temp
50 °C
Max Temp
- Power Consumption
- 20 W
- AC Power Supply
- 110V - 264V / 50Hz
- DC Power Supply
- 36V - 72V
Ordering Information
Available Configurations
| Model | Power Configuration |
|---|---|
| BD04/DC | Single DC 48V |
| BD04/AC | Single AC 220V |
| BD04/AC+DC | Redundant AC 220V + DC 48V |
| BD04/DC+DC | Redundant DC 48V + DC 48V |
| BD04/AC+AC | Redundant AC 220V + AC 220V |
