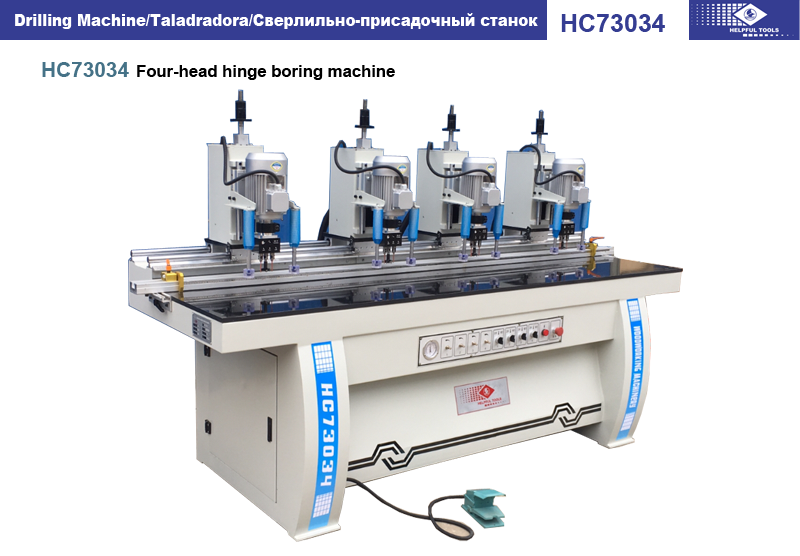

Four-Head Wood Hinge Boring Machine
This four-head hinge boring machine is designed for efficient and precise drilling of hinge holes in woodworking applications. The machine features four drilling heads, allowing simultaneous drilling of multiple holes, increasing productivity.
Technical Specifications
Overview
High-Efficiency Hinge Boring
The four-head hinge boring machine is engineered for high-volume woodworking environments, such as furniture and cabinet manufacturing. It features four independent, adjustable drilling heads that allow for simultaneous hole drilling, significantly reducing cycle times while maintaining precise alignment. Equipped with a pneumatic clamping system and robust construction, this machine ensures stable, vibration-free operation for consistent and repeatable results.
Technical Specifications
Drilling Capacity
35 mm
Max Drilling Diameter
50 mm
Max Drilling Depth
Drilling Configuration
| Component | Quantity |
|---|---|
| Drilling Heads | 4 |
| Drilling Shafts | 12 |
Performance Metrics
- Spindle Speed: 2840 rpm
- Total Power: 1.1kW x 4
Physical Dimensions
- Machine Dimensions
- 2500 x 1200 x 1700 mm
- Total Weight
- 570 kg
Features
- Key Features
- Pneumatic ClampingAdjustable DepthAdjustable SpacingSimultaneous Drilling
Safety
Safety Equipment
Emergency StopProtective Guards
