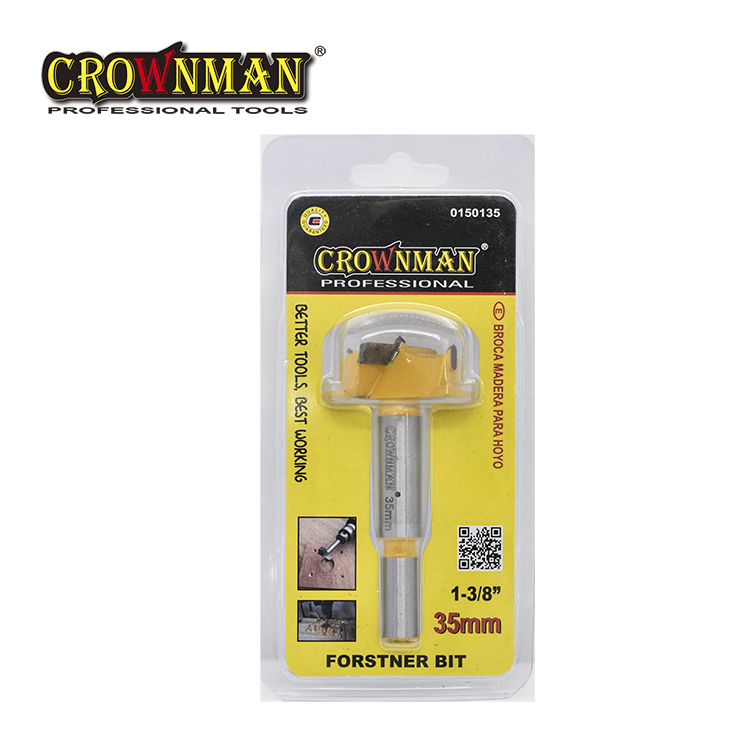

Forstner Drill Bit for Woodworking
This Forstner drill bit is designed for creating clean, flat-bottomed holes in wood. It is suitable for drill presses, pistol drills, bench drills, and vertical drilling machines.
Technical Specifications
Overview
Professional Woodworking Forstner Bit

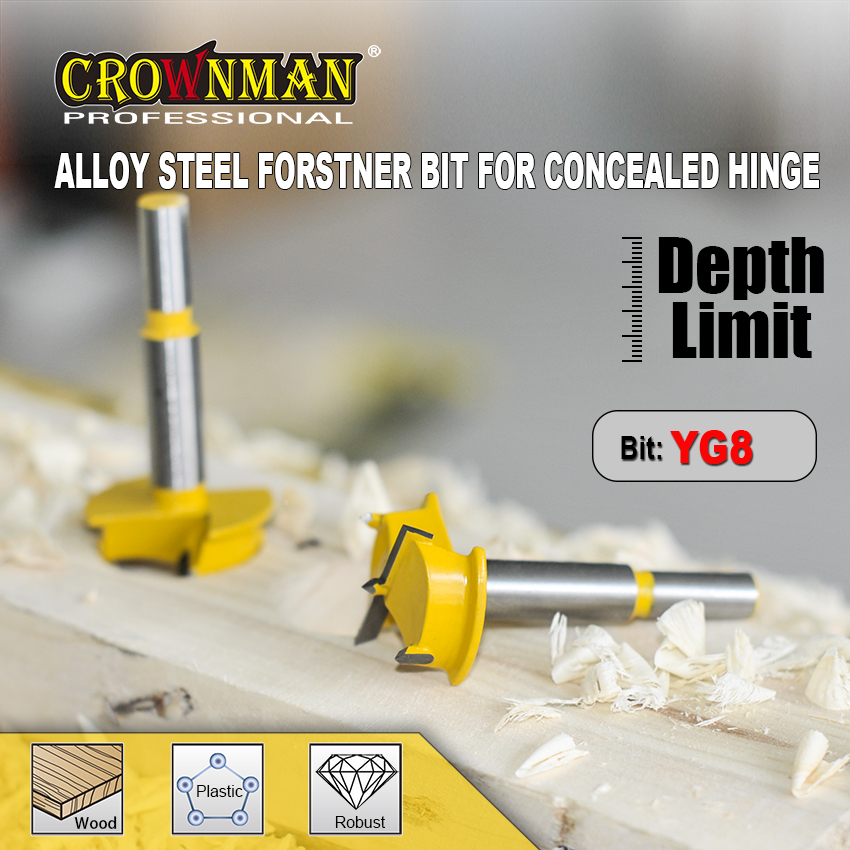

This professional-grade Forstner drill bit is engineered for creating clean, flat-bottomed holes in various materials including wood, plastic, and plywood. Featuring a YG8 alloy steel cutting head and a high-speed carbon steel shank, it ensures smooth cutting with minimal resistance and no tremor. Specifically designed for concealed hinge installation, it includes a depth limit feature to provide consistent and precise results for furniture and cabinetry projects.
Technical Specifications
Key Performance Metrics
35 mm
Drilling Diameter

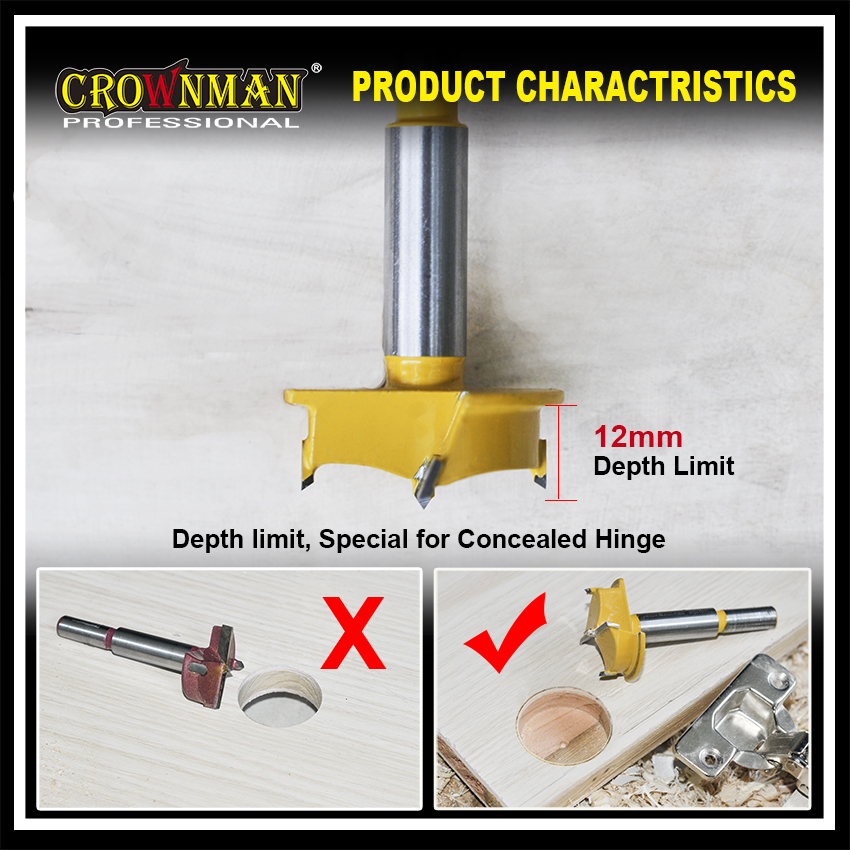

12 mm
Depth Limit
10 mm
Max Chuck Size

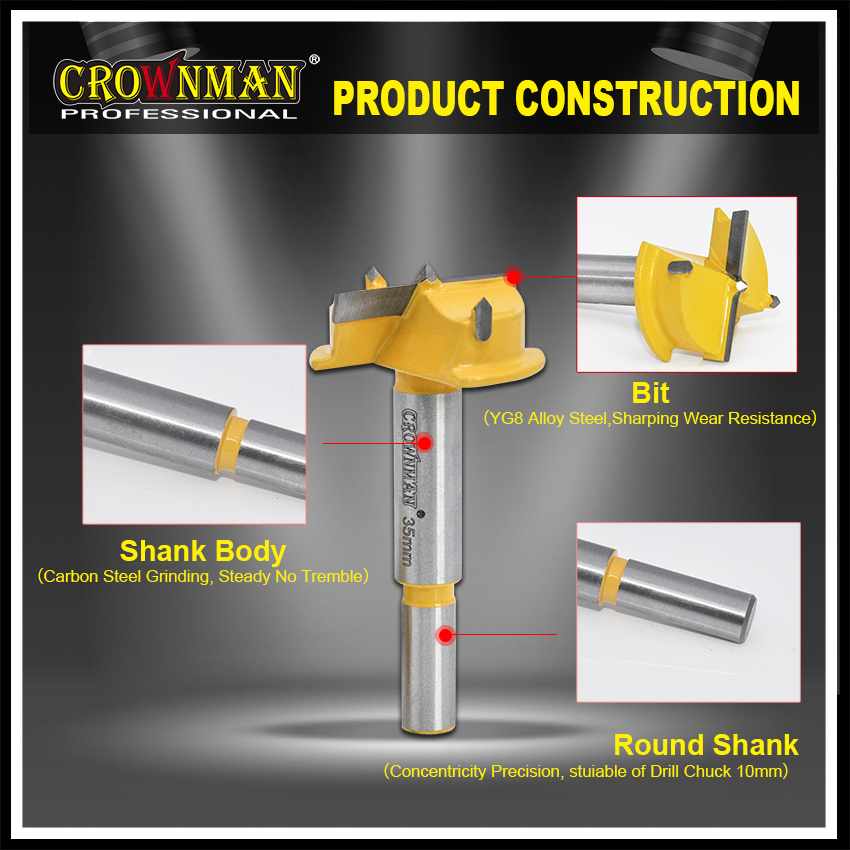

Material & Construction
Material Composition
| Component | Material Type | Properties |
|---|---|---|
| Drill Bit Tip | YG8 Alloy Steel | Sharp, wear-resistant, smooth cutting |
| Shank Body | Carbon Steel | Ground finish, steady operation, no tremble |
Application & Compatibility
Supported Machinery
- Drill Press
- Pistol Drill
- Bench Drill
- Vertical Drilling Machine
- Compatible Materials
- WoodPlasticPlywoodWood Products
Design Features
Specialized Design Features

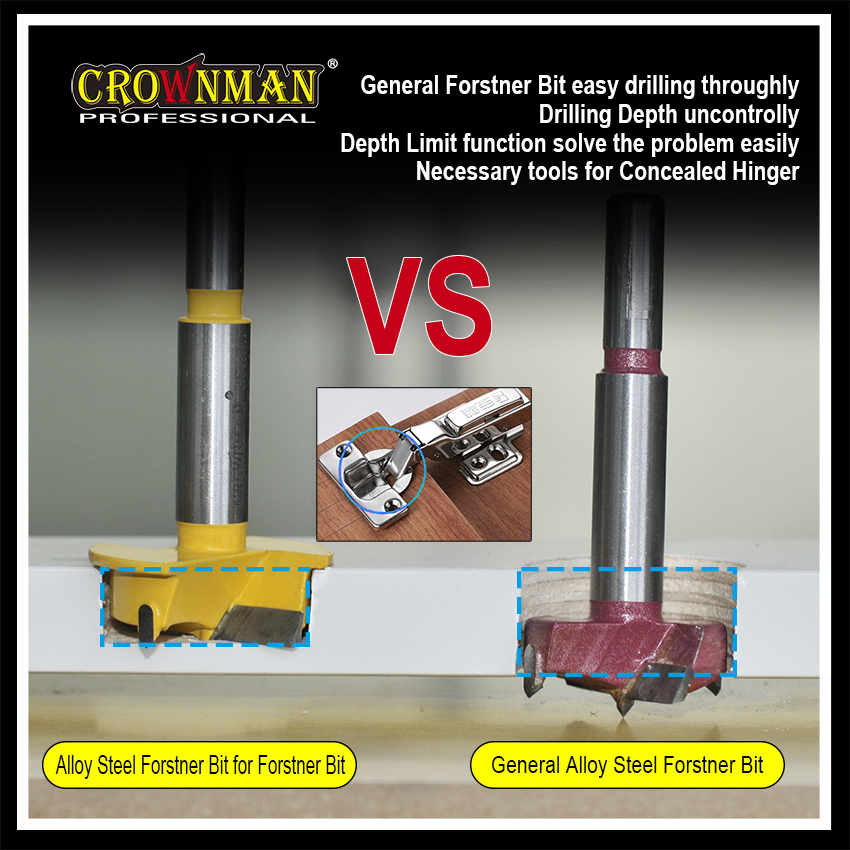

- Depth limit function for precise hinge recesses
- Round shank with concentricity precision
- Center spur for accurate positioning
- Chip-easy design to prevent clogging
Installation Guide

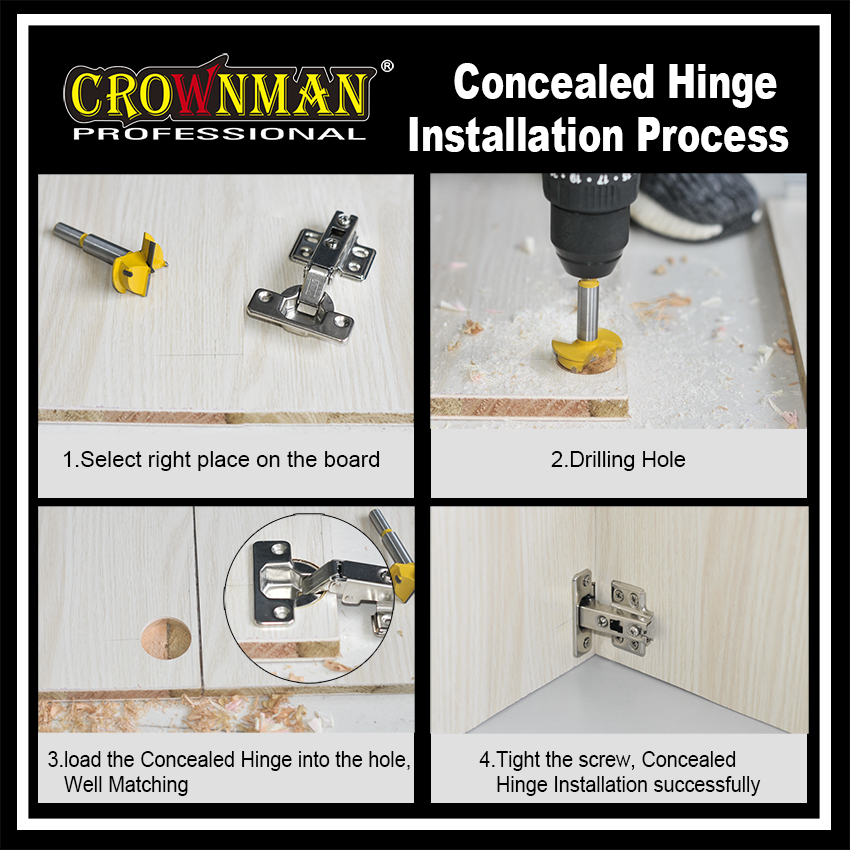

Concealed Hinge Installation Process
- 1. Select the correct placement on the board
- 2. Drill the hole using the depth limit guide
- 3. Load the concealed hinge into the hole for a flush fit
- 4. Tighten the screws to secure the hardware
