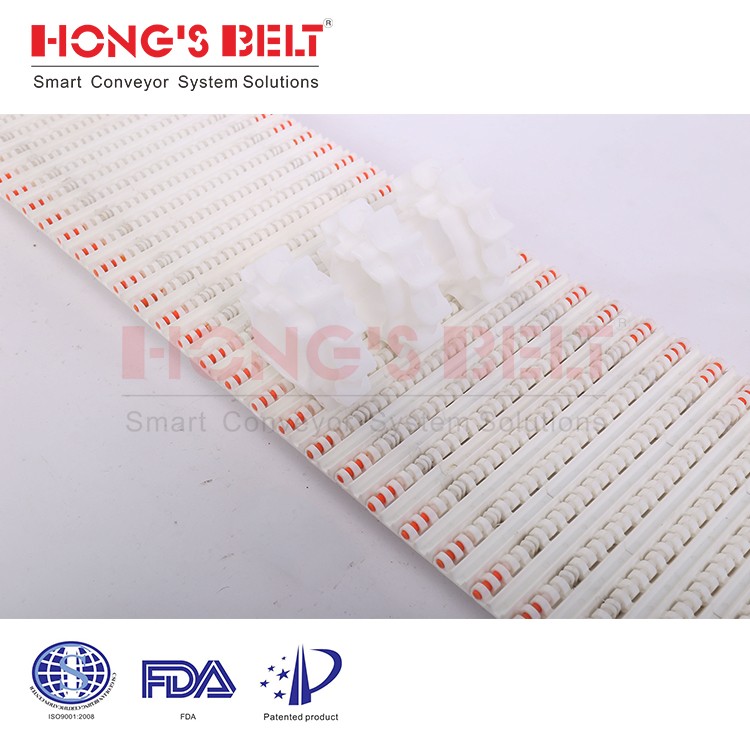

Flat Top Modular Conveyor Belt
This flat top modular conveyor belt is made from food-grade plastic, ensuring hygiene and durability. Its modular design allows for easy assembly and maintenance in food processing environments.
Technical Specifications
Overview
High-Performance Modular Conveyor Belt
This flat top modular plastic conveyor belt is engineered for demanding industrial environments, particularly in food processing sectors like poultry and meat handling. Featuring a robust, hygienic design, it offers exceptional durability with a maintenance-free profile and easy cleaning capabilities. The system supports substantial loads up to 1.2 tons per square meter, making it a reliable solution for efficient product transport.
Technical Specifications
Physical Dimensions
| Specification | Value |
|---|---|
| Pitch | 25.4 mm |
| Thickness | 10 mm |
| Minimum Width | 45 mm |
| Rod Diameter | 4.9 mm |
Operating Specifications
-40 °C
Min Temperature
260 °C
Max Temperature
1.2 tons/m²
Max Load Capacity
Available Colors
WhiteBlueGrayNatureDark-brown
- Material Composition
- PPPOMPEPA
- Compliance
- FDA ApprovedEU Approved
Features & Design
Design Features
- Flat top surface
- Includes flight/cleats
- Includes side guard
- 0% Open area
- Straight running design
- Sprocket Compatibility
- 7T, 8T, 10T, 12T, 16T, 20T (Square and round bore options)
Applications
Food Industry Applications
- Meat (beef & pork)
- Poultry processing
- Sea food
- Bakery
- Snack food
- Fruit & vegetables
Non-Food Industry Applications
- Automotive
- Tire manufacturing
- Packaging
- Printing/Paper
- Postal
- Corrugated cardboard
- Can manufacturing
- PET manufacturing
- Textile
