Fiber Optic Patch Panel Distribution Box
This fiber optic patch panel provides a convenient solution for terminating and distributing fiber optic cables. It is available in various port configurations, including 12, 24, 48, and 96 ports.

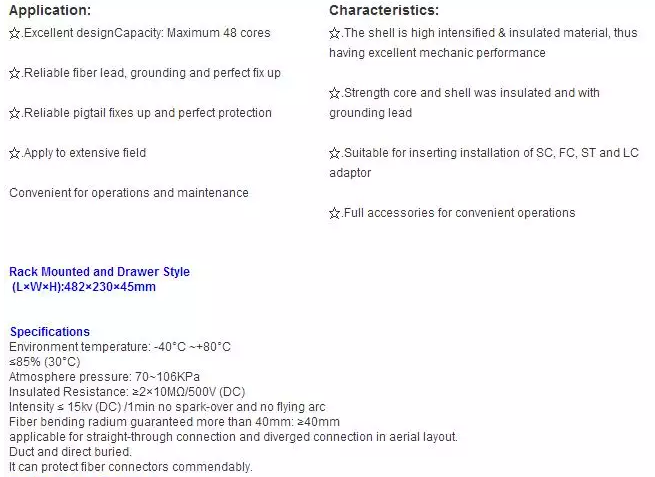

Technical Specifications
Overview
High-Density Fiber Management

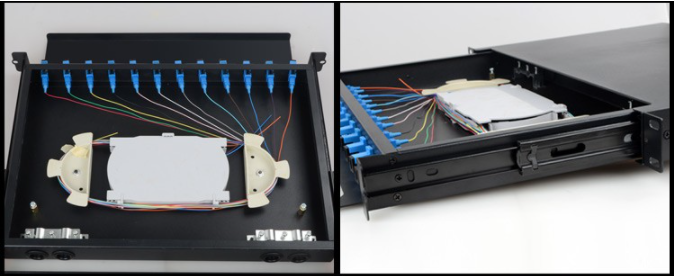

This fiber optic patch panel distribution box is designed for efficient cable management and termination in data centers and telecommunication networks. Featuring a standard 19-inch rack-mountable design, it offers a robust, lightweight structure with a drawer-style configuration for easy access. The unit supports various adapter interfaces and fiber types, ensuring reliable performance and protection for your network infrastructure.
Technical Specifications
Available Port Counts
- 4
- 6
- 8
- 12
- 24
- 48
- 72
- 96
- 144
- 288
- Compatible Connectors
- LCFCSCST
- Min. Fiber Bending Radius
- 40 mm
- Dimensions (LxWxH)
- 482mm x 230mm x 45mm
Operating Environment
Operating Temperature
-40 °C
Min Temp
80 °C
Max Temp
- Max Humidity
- ≤85% at 30°C
- Atmospheric Pressure
- 70-106 KPa
Electrical Performance
- Insulated Resistance
- ≥2x10MΩ/500V (DC)
- Intensity Rating
- ≤15kV (DC)/1min
Features
Key Capabilities
19-inch Standard SizeDrawer StyleRack MountedGrounding Lead IncludedReplaceable Splice Tray
