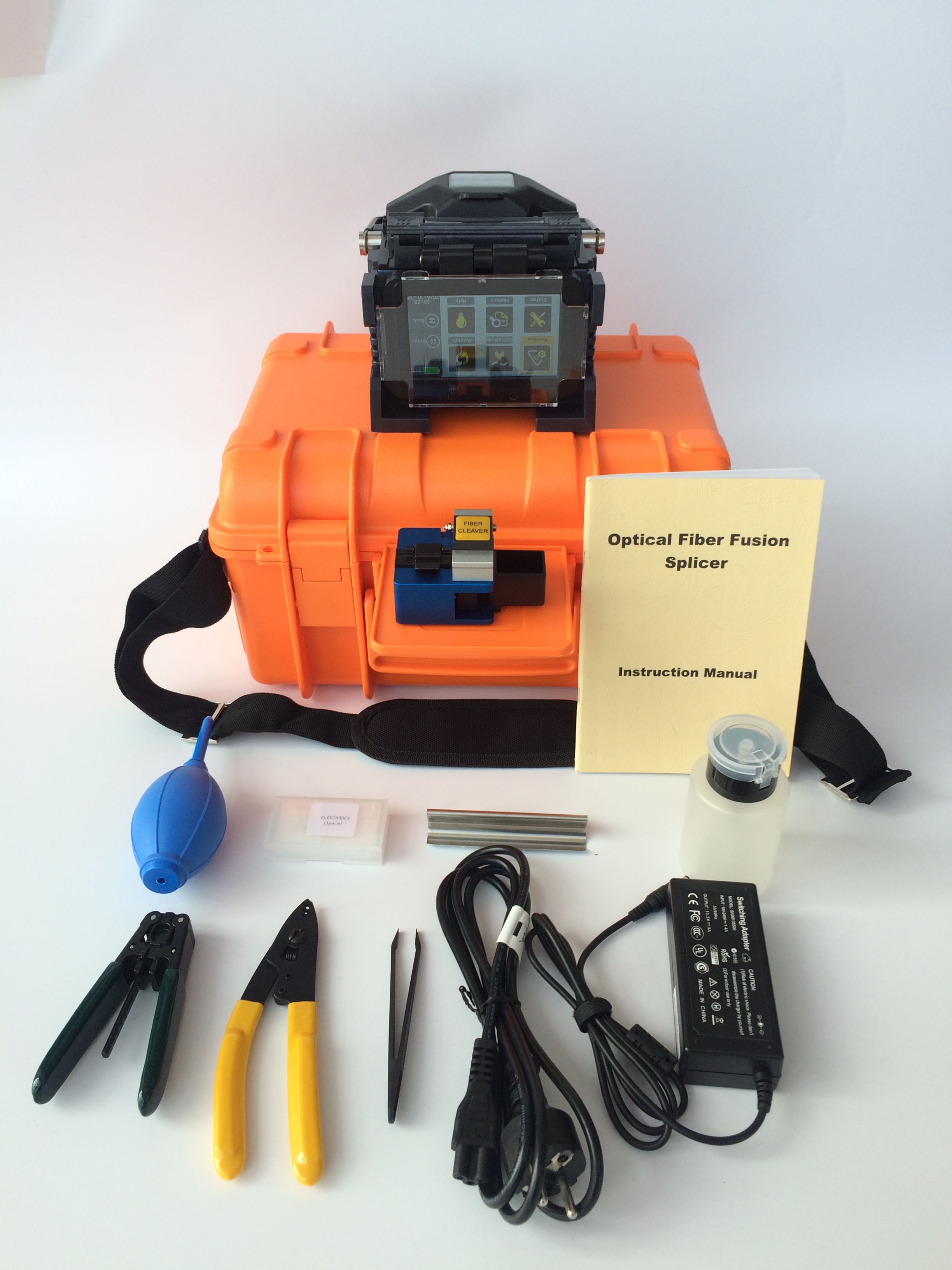

Fiber Optic Fusion Splicer
This fiber optic fusion splicer is designed for precision splicing with a double core alignment structure for a higher success rate and lower loss. It features a 4.3 inch color LCD screen and rapid splicing and heating times.
Technical Specifications
Overview
Compact High-Precision Fusion Splicer
The TE580 is a professional-grade, mini fiber optic fusion splicer designed for portability and high efficiency in field installations. Featuring advanced PAS fiber core alignment technology and a double-core align structure, it ensures low-loss connections and a high success rate for various fiber types. With a fast 7-second splicing time and an intuitive 4.3-inch TFT color display, this device significantly improves workflow efficiency for telecommunications and data center technicians.
Performance Metrics
Key Performance Indicators
7 s
Fast Splicing Time
17 s
Heating Time
0.02 dB
Typical Loss
1.89 kg
Weight
Technical Specifications
- Applicable Fiber Types
- SM (Single mode)MM (Multi-mode)DS (Dispersion shift)NZDS (Non zero dispersion shift)
- Applicable Fiber Count
- Single
- Display Screen
- 4.3 inches 16:9 TFT colorized LCD
- Alignment Technology
- PAS (Lateral Projection System) with CMOS image sensor
Features
Key Capabilities
- Double core align structure
- Automatic arc calibration via environmental sensors (pressure, temperature, humidity)
- Low power consumption design for extended operation
- Ruggedized design (shockproof, dustproof)
- Portable, small-sized construction
Power & Environment
Power Adapter Specs
| Parameter | Specification |
|---|---|
| Input | 100-240V, 50/60Hz |
| Output | 13.5V, 5A |
