Fiber Optic Distribution Terminal Box

This distribution box is designed for use with PLC splitters in FTTx networks. The TX-FTTH-618 features 2 input ports and 16 output ports located on the bottom.

Request a Quote Download PDFPDF

Technical Specifications

Overview

FTTH Network Solution

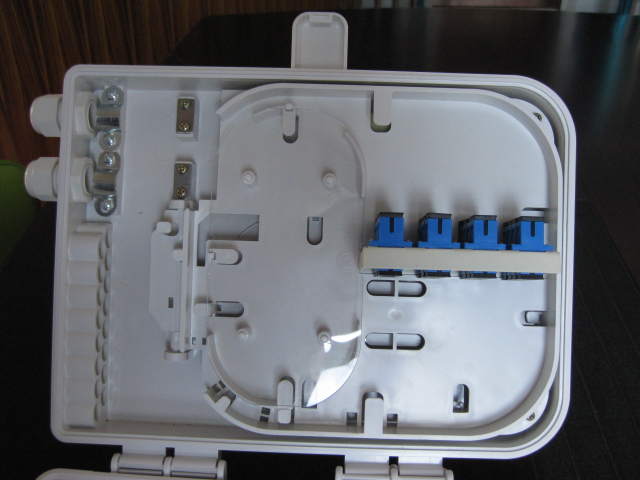

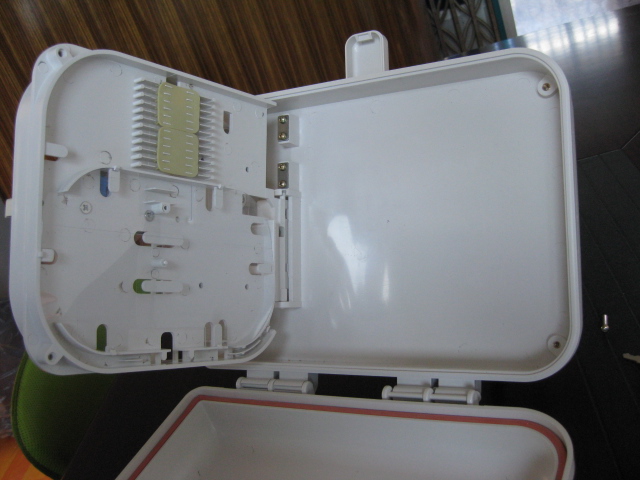

The TX-FTTH-618 Optical Termination Box is a robust solution designed to connect feeder or distribution cables to subscriber drop cables in FTTx networks. Featuring a high-impact, UV-resistant, and rainfall-resistant plastic construction, it is engineered for both indoor and outdoor reliability. The dual-tray system allows for efficient splicing of feeder cables with PLC splitters on the rear tray, while the front tray manages subscriber connections, supporting up to 16 FTTH drops.

Technical Specifications

FTTH Drop Capacity

16 lines

Max Drops

Input Ports: 2 ports
Output Ports: 16 ports
Supported PLC Splitters: 1x8 PLC1x16 PLC

Installation & Design

Mounting Options

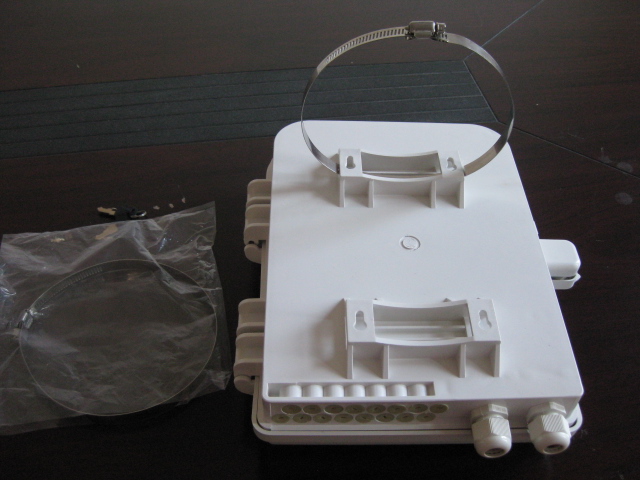

Wall MountPole Mount

Environmental Resistance

Ultra violet (UV) resistant
Rainfall resistant
High impact plastic construction
