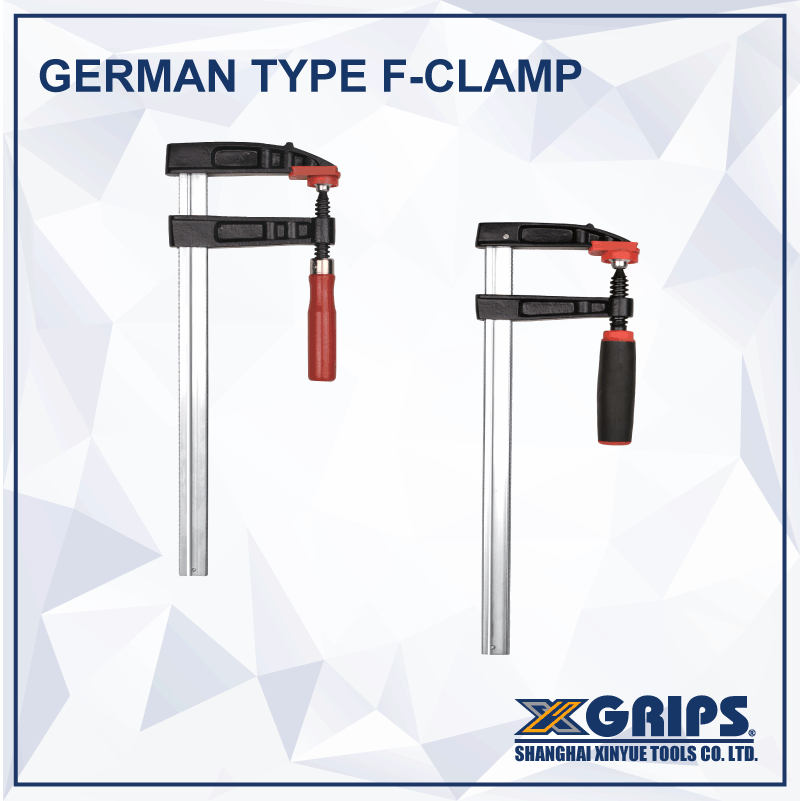

F Clamp with Plastic Handle
This F clamp is designed for woodworking and metalworking. It features a durable steel bar and a plastic handle for enhanced grip and control.
Technical Specifications
Product Overview
Professional Grade F-Clamp
This F-clamp is designed to meet the rigorous demands of professional woodworking and DIY projects, adhering to the German DIN5117 standard for reliability. Constructed with a high-strength carbon steel rail and durable malleable or ductile iron jaws, it provides consistent clamping force for assembly, gluing, and welding tasks. The ergonomic plastic handle is available in multiple color configurations, ensuring user comfort and reduced fatigue during extended operation.
Technical Specifications
Standard
DIN5117
Handle Options
- Double color plastic handle (3 types)
- Single color plastic handle (1 type)
Size and Capacity Specifications
| Model | Opening (mm) | Throat Depth (mm) | Bar Size (mm) |
|---|---|---|---|
| FCG-P50 | 100-600 | 50 | 15x6 |
| FCG-P80 | 150-800 | 80 | 22x6 |
| FCG-P100 | 200-1000 | 100 | 27x7 |
| FCG-P120 | 200-2000 | 120 | 30x8 |
| FCG-P140 | 200-2000 | 140 | 32x10 |
- Material Composition
- Carbon Steel RailMalleable Iron JawDuctile Iron JawCarbon Steel Spindle
Applications
- Primary Applications
- WoodworkingDIYMetalworkingAssemblyGluingWelding
