Technical Specifications
Product Overview
Professional Concrete Compaction

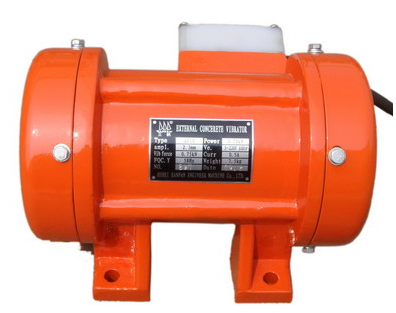

The ZF18 external concrete vibrator is a robust and efficient machine engineered for superior concrete compaction. It features a simple, portable structure that ensures high operational efficiency and long-term reliability in demanding construction environments. Ideal for precast concrete equipment, mixer plants, and various industrial machinery, this tool effectively removes air pockets to guarantee uniform concrete density.
Technical Specifications
- Rated Power
- 2.2 kW
- Vibration Force
- 0.75 kN
- Voltage
- 3~220V
- Rated Current
- 0.5 A
- Frequency
- 50 Hz
- Amplitude
- 2.3 mm
- Net Weight
- 3.5 kg
Product Features
Primary Applications
- Concrete Compaction
- Soil Compaction
- Precast Concrete Equipment
- Mixer Plants
- Mine Machinery
- Key Features
- Portable OperationHigh EfficiencyReliable ConstructionSimple Maintenance
