Technical Specifications
Product Overview
Industrial Precision in Hazardous Environments

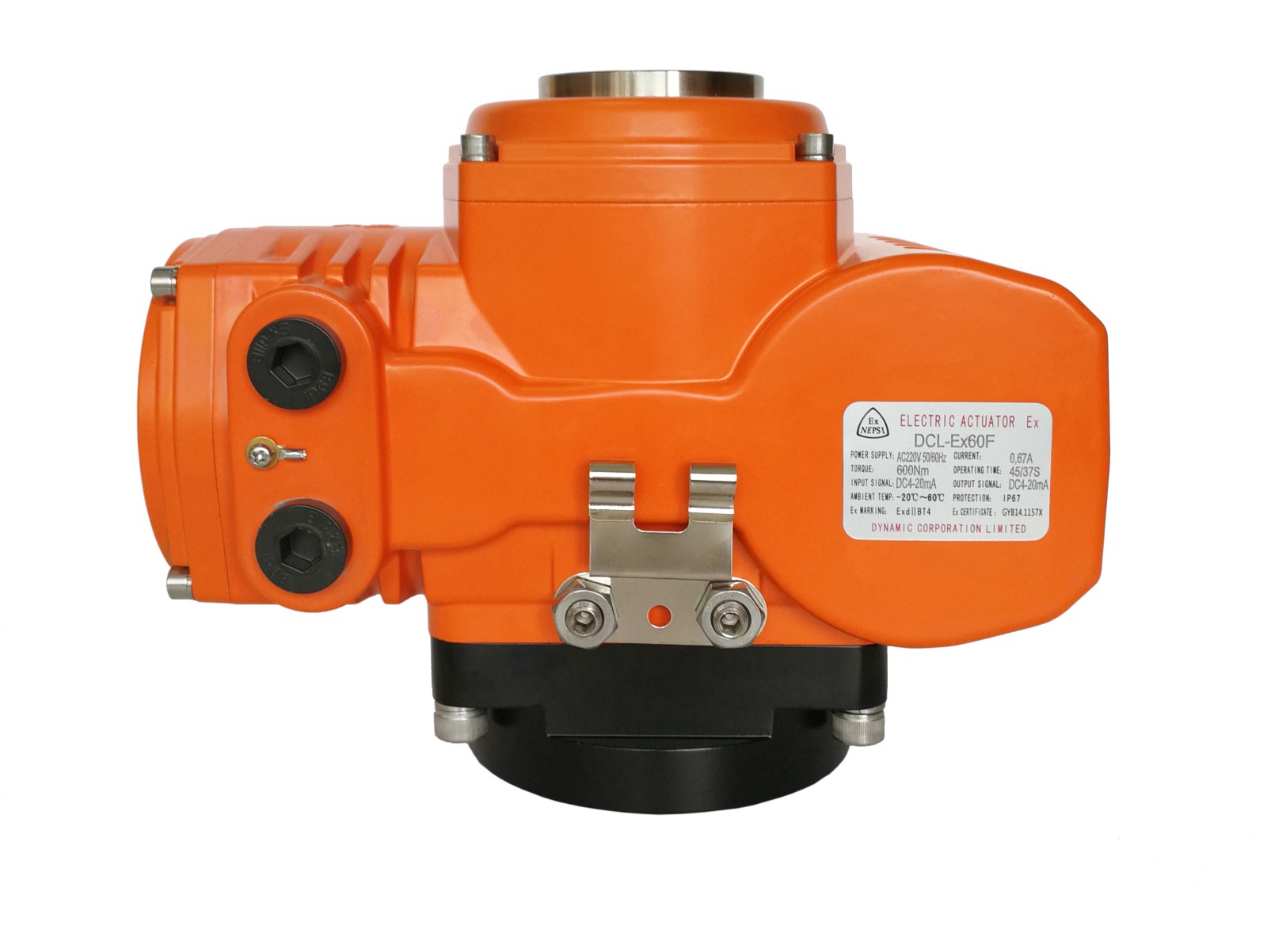

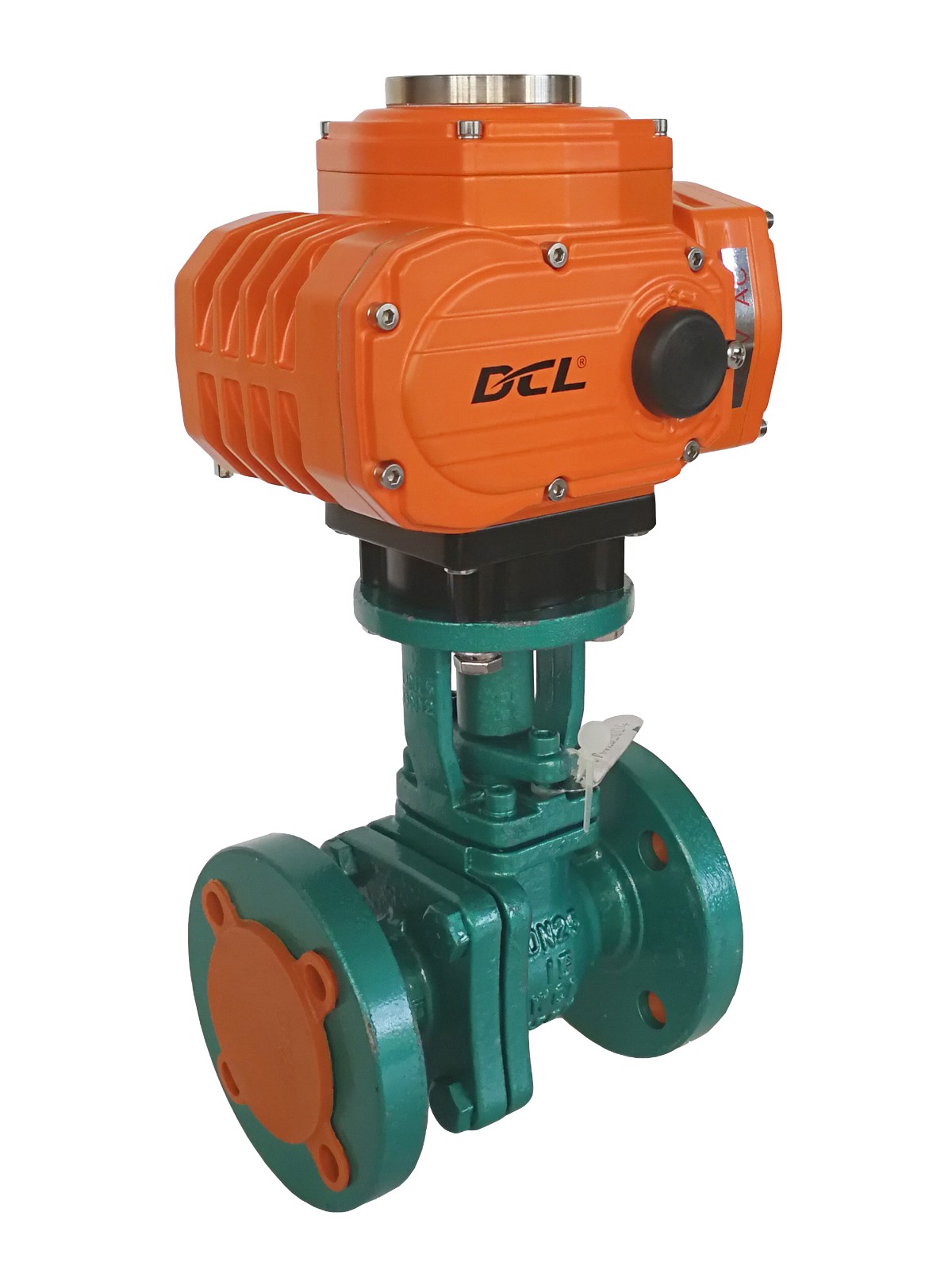

This explosion-proof modulating electric actuator is engineered for high-performance control in demanding industrial settings. Featuring an all-metal gear system, self-locking mechanisms, and a robust die-cast aluminum enclosure, it ensures durability and safety against explosive pressures. The unit includes a fully potted controller that protects electronics from vibration and moisture, making it highly reliable for continuous modulating applications.
Technical Specifications
Key Performance Metrics
600 Nm
Torque
37 S
Operating Time
220 VAC
Voltage
Control Signals
- Input Signal: DC 4-20mA
- Output Signal: DC 4-20mA
Certifications and Safety
Operational Environment
| Parameter | Value |
|---|---|
| Ambient Temperature | -20°C to 60°C |
| Enclosure Pressure Rating | ≥ 2.2 Mpa |
| Protection Rating | IP68 |
- Compliance and Safety
- Explosion-ProofSIL CertifiedIP68EMC CompliantATEXULNEPSI
Design and Build
Core Mechanical Features
- 1/4 turn operation with mechanical limits
- All metal gears with self-locking worm gear
- High-intensity position indicator with 10mm tempered glass
- Manual override via Allen wrench or handwheel
- ISO 5211 multi-flange mounting
