Explosion-Proof Electric Actuator with DC Motor

This explosion-proof electric actuator is designed for precise valve control in hazardous environments. It features a DC motor for reliable and accurate positioning.

Request a Quote Download PDFPDF

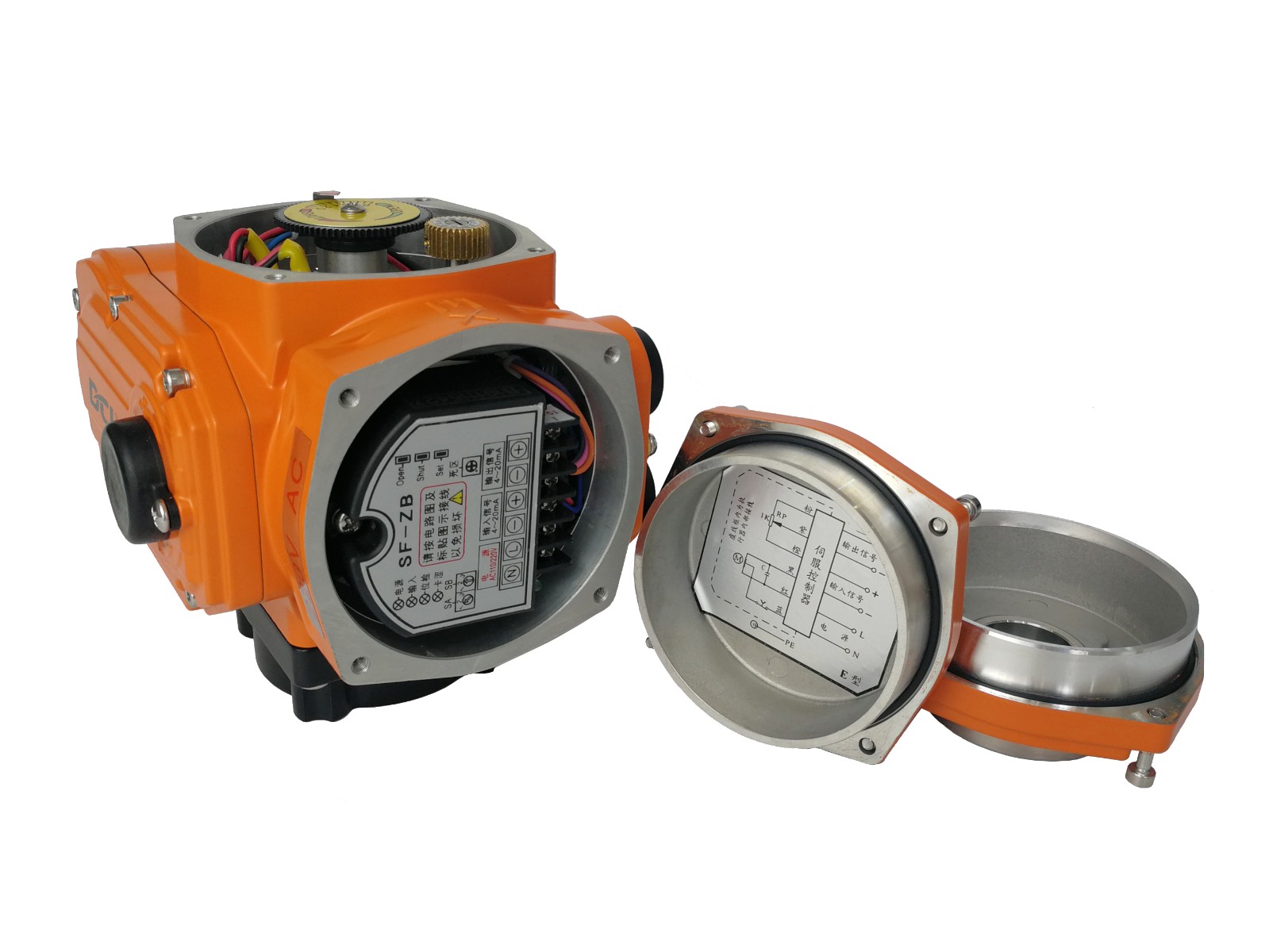

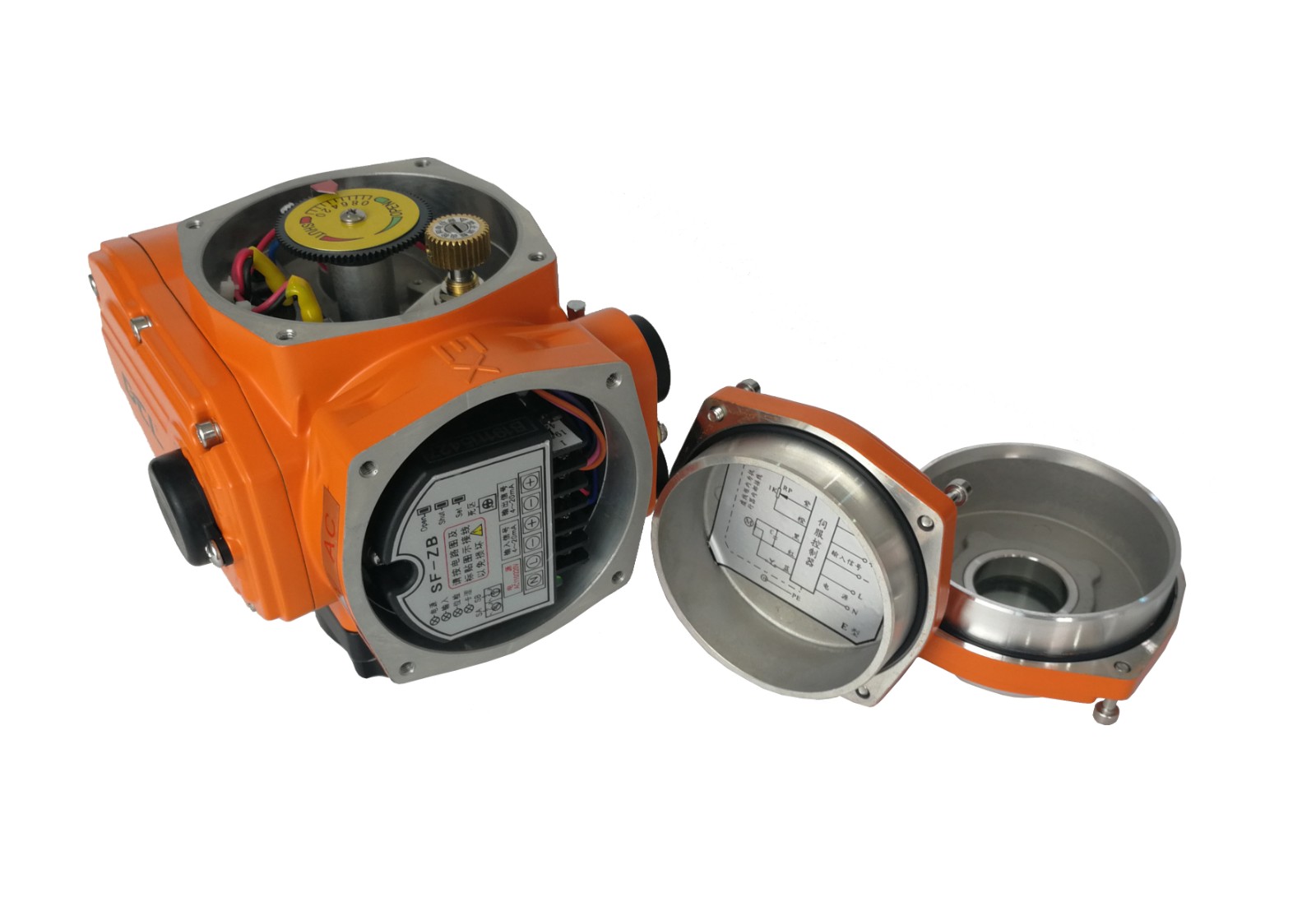

Modulating type explosion proof electric actuator with DC motor - Image 1

Technical Specifications

Overview

High-Performance Explosion-Proof Actuation

This modulating electric actuator is engineered for precise valve control in hazardous industrial environments. Powered by a 24VDC heavy-duty brush motor, it delivers high starting torque with minimal inertia, ensuring reliable performance and a long service life. The unit features a robust, IP68-rated aluminum alloy enclosure, making it fully protected against dust and water ingress in demanding conditions.

Technical Specifications

Ingress Protection

IP68

Power Supply: 24VDC
Operation Type: Modulating, Quarter-turn
Motor Type: Heavy-duty DC brush motor
Mounting Standard: ISO5211 Multi-flange

Compliance & Safety

Safety Features

Flameproof enclosure design
Over-torque protection by current sensing
Fully potted controller for vibration/moisture resistance
Tempered glass position indicator (10mm)
Optional anti-condensation heater

Certifications & Compliance: ATEXCERoHS 3UL Standard

Performance Metrics

Key Performance Metrics

10 mm

Indicator Glass Thickness
